Description

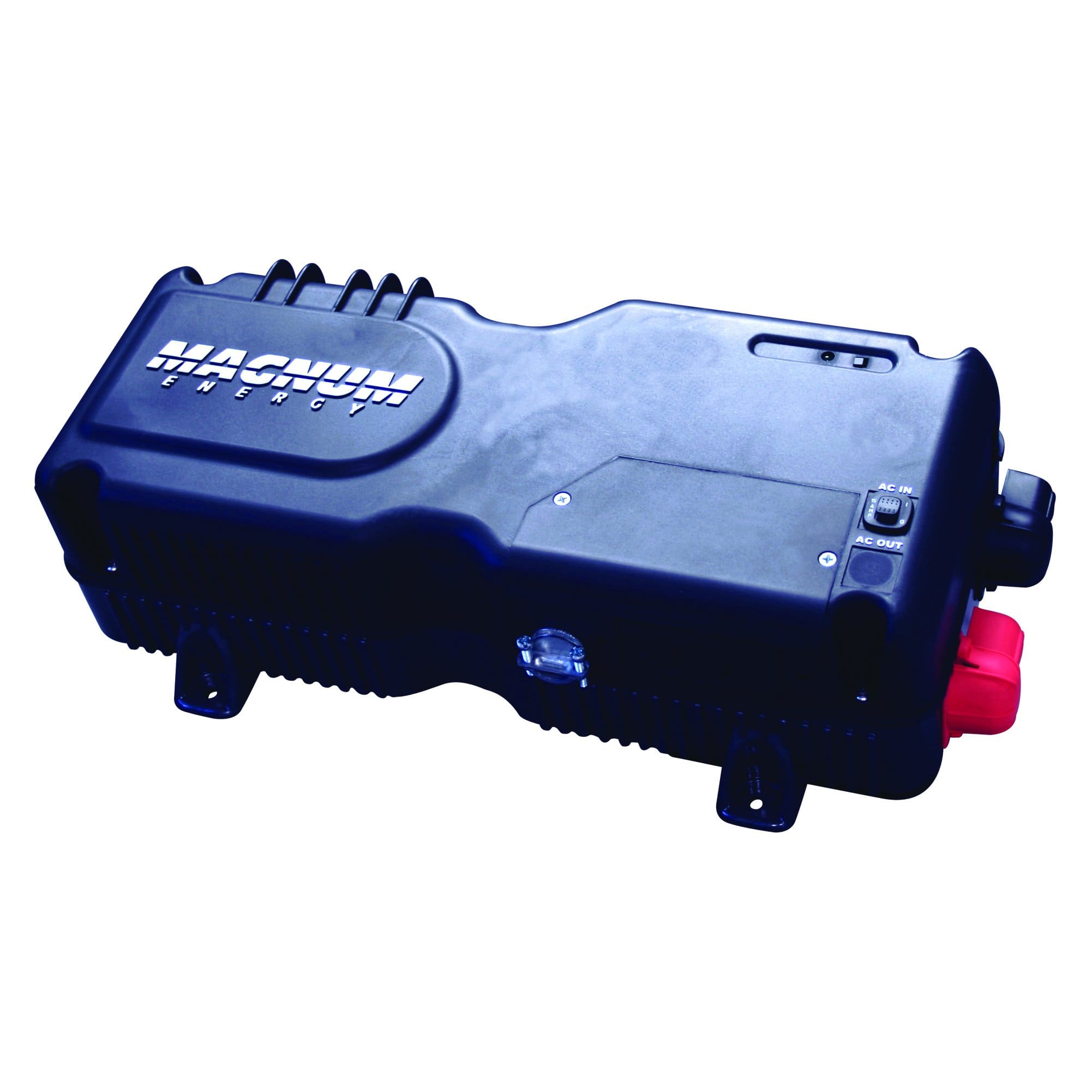

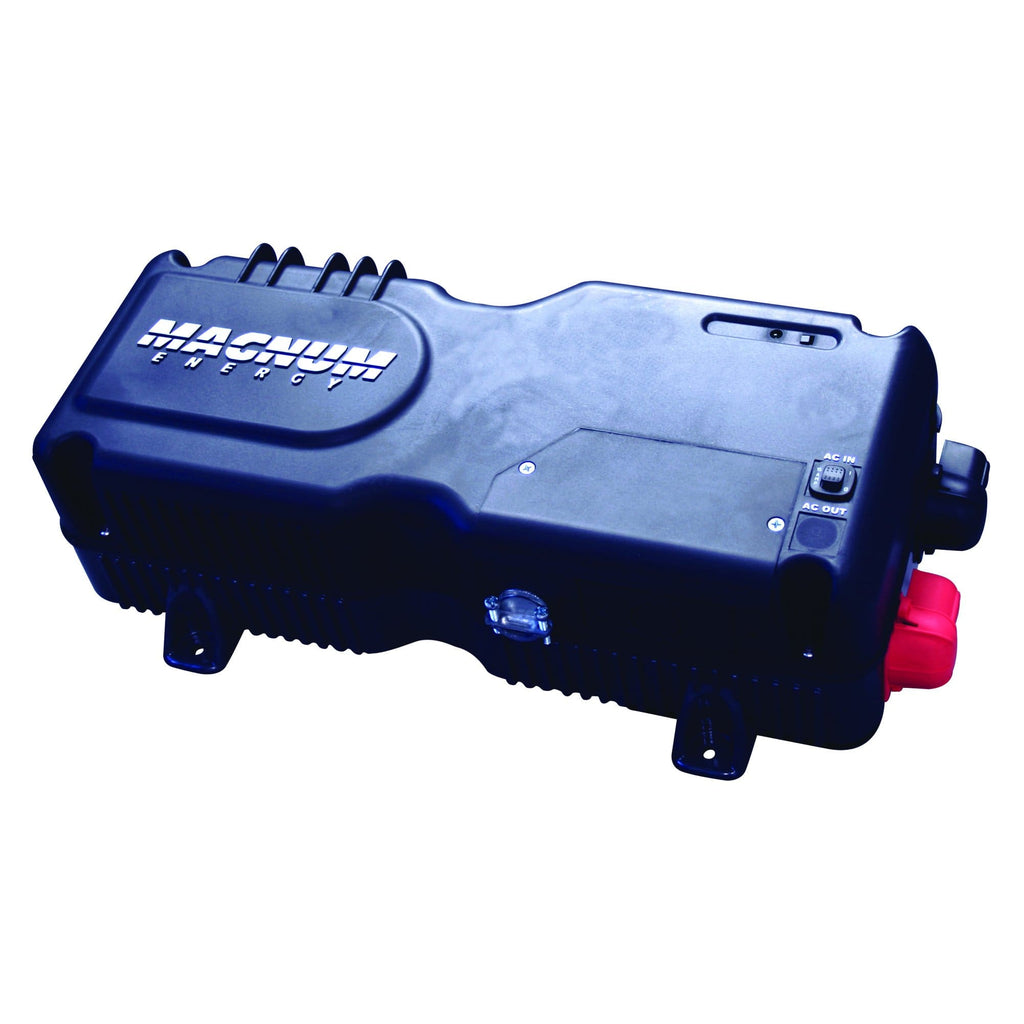

The Magnum MM612 is a modified sine wave inverter with a 20 amp transfer switch that provides a cost effective solution for those with smaller power needs in mobile applications.
Specifications
| brand | Magnum |
| circuit breaker | 7 Amp (Output) |
| continuous current output | 5 AAC |
| dimensions | 16.6"L x 8.4"W x 4.7"H (42 cm x 21 cm x 12 cm) |
| input voltage | 24 Volts |
| input voltage range | 9 to 16 VDC |
| maximum input current | 80 ADC |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F) |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency | 60 Hz +/- 0.1 Hz |
| output voltage | 120 Volts |
| peak efficiency | 0.95 |
| transfer relay rating | 20 AAC (input current for charging and pass through) |
| transfer time | 16 msecs |
| wattage | 1500 Watts |
| waveform | Modified Sine Wave |
| weight | 14 lb (6.4 kg) |
