Description

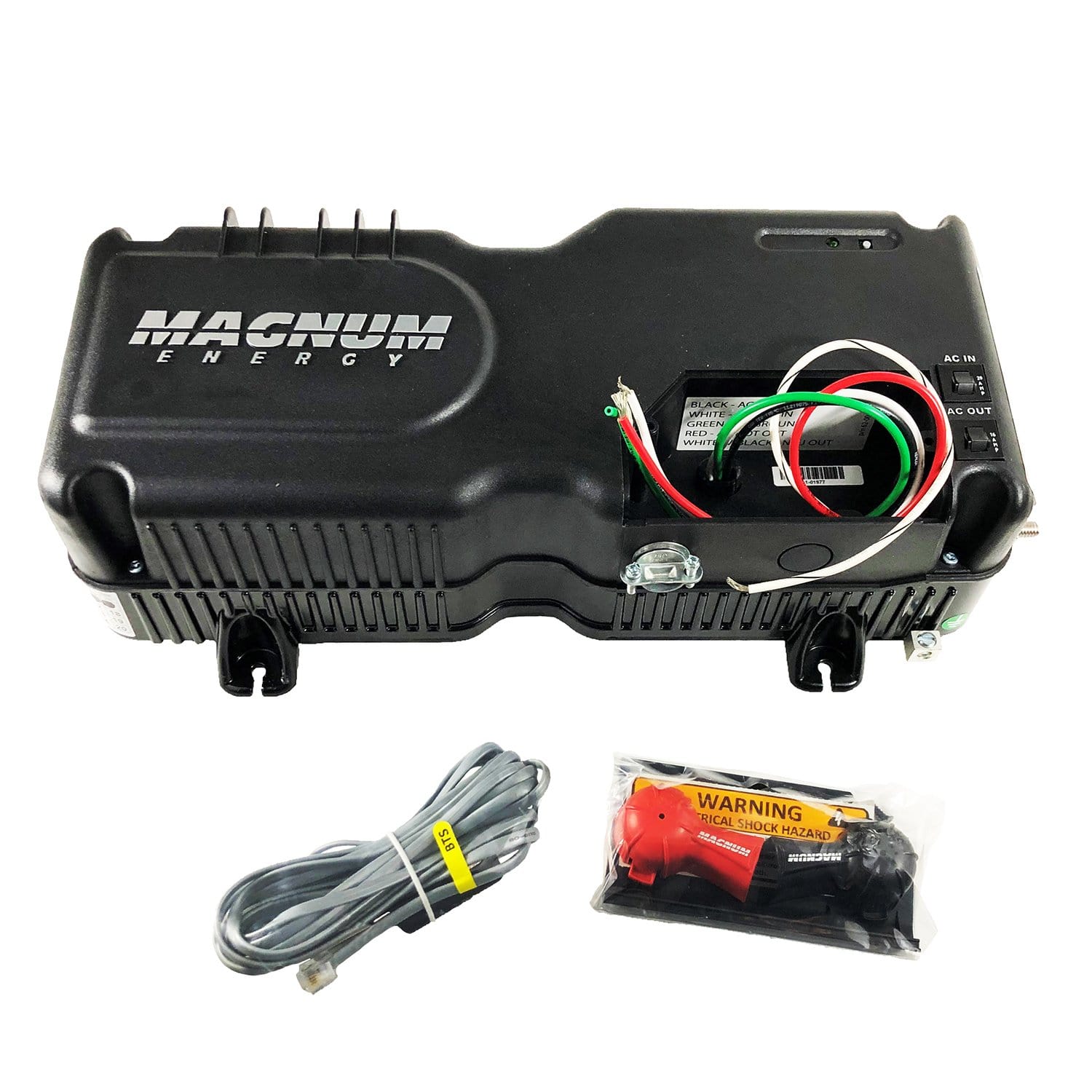

The Magnum MM1524AE is a 24-volt 1500-watt modified sine wave inverter from Magnum Energy, it has a 35-amp power factor corrected (PFC) charger which provides a cost-effective solution for those with smaller power needs in mobile applications.
- Power Factor Corrected (PFC) Charger
Specifications
| continuous current output | 13 AAC |
| continuous output power | at 25 degrees C (with 1.0 PF): 1500 VA |
| dimensions | 16.6"L x 8.4"W x 4.7"H (42 cm x 21 cm x 12 cm) |
| efficiency | 88% (Charger) |
| input current | 100 ADC (Maximum Continuous) |
| input current at rated output | (AC amps): 9 |
| input voltage | 24 Volts |
| input voltage range | 18 to 32 VDC |
| max operating altitude | 15,000 (4570 m) |
| nominal ac output voltage | 120 VAC - 5% |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F) |
| no load | (120 VAC output, typical): 9 watts |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency and accuracy | 60 Hz - 0.1 Hz |
| peak efficiency | 0.91 |
| power factor | >0.95 |
| search mode | 4 watts |
| transfer relay rating | 20 AAC (input current for charging and pass through) |
| transfer time | 16 msecs |
| type | Modified Sine Wave |
| wattage | 1500 Watts |
| waveform | Modified Sine Wave |
| weight | 22 lb (10 kg) |
