Description

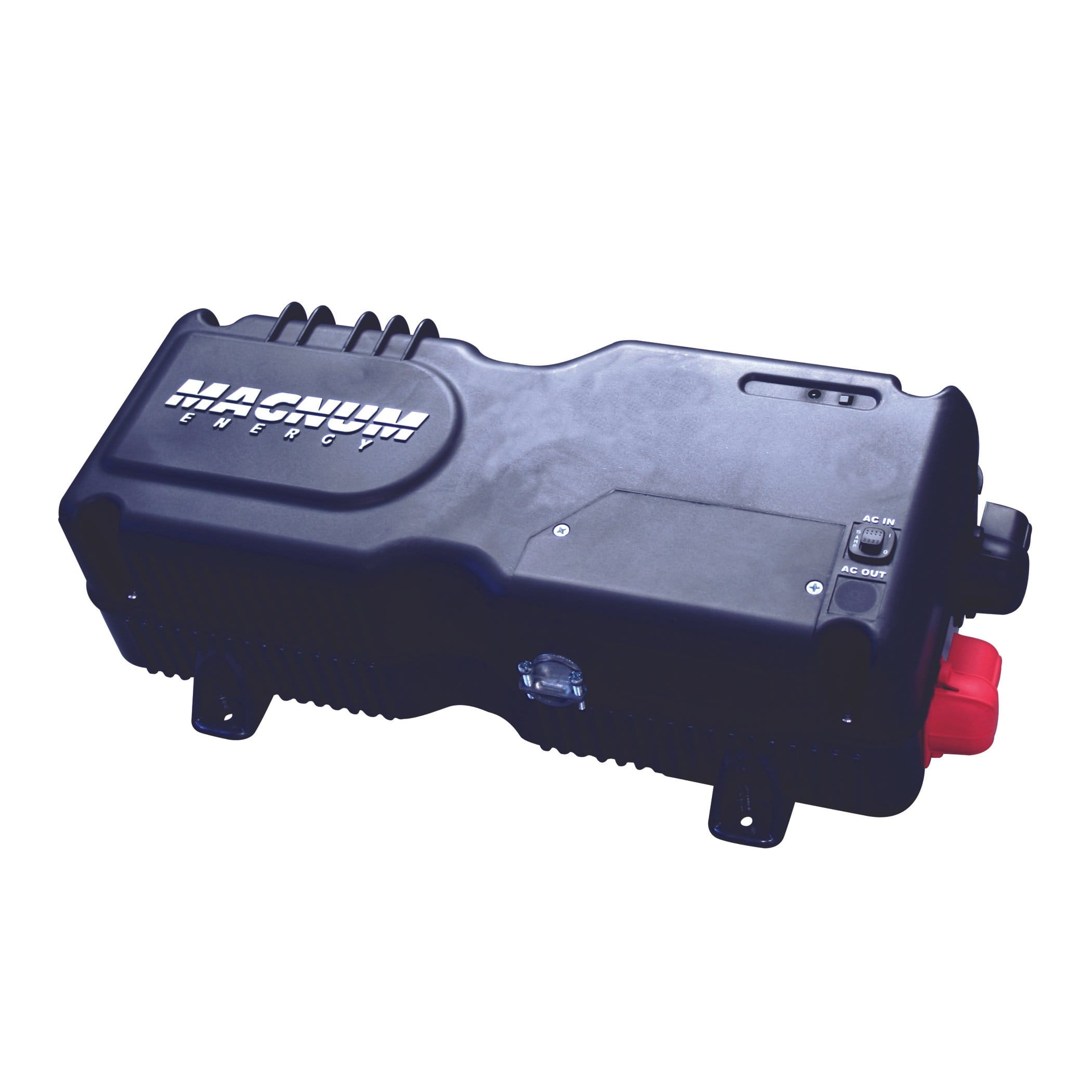

Magnum Energy now offers the MM-E Series Inverter/Charger for 230 VAC / 50 Hz installations.
Specifications
| continuous output power | at 25 degrees C: 1300 VA |
| dimensions | 15.0"H x 6.5W" x 5.0"D (38.1 cm x 16.5 cm x 12.7 cm) |
| efficiency | 84% (Charger) |
| input current | (Maximum Continuous) 87 ADC |
| input current at rated output | (AC amps): 3.5 |
| input voltage range | 18 - 32 VDC |
| max operating altitude | 15,000 (4570 m) |
| nominal ac output voltage | 230 VAC - 5% |
| nonoperating temperature | -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F) |
| no load | (120 VAC output, typical): 18 watts |
| operating humidity | 0 to 95% RH non condensing |
| operating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| output frequency and accuracy | 50 Hz - 0.4 Hz |
| output voltage | 12 Volt |
| peak efficiency | 0.87 |
| power factor | > 0.95 |
| search mode | < 8 watts |
| transfer relay rating | 20 AAC |
| transfer time | 30 msecs |
| type | Modified Sine Wave |
| wattage | 1200 Watts |
| waveform | Modified Sine Wave |
| weight | 23 lb (16.9 kg) |
