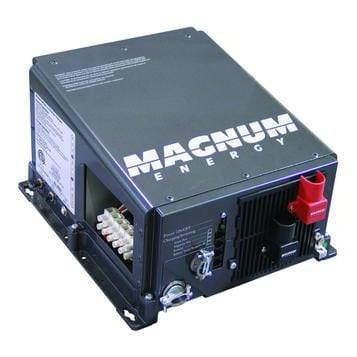

Magnum ME2512-G 2500 Watt Modified Sine Wave Inverter Charger with GFCI

amps

100 Amp

efficiency

Charger: 85%

input current

333 ADC (Maximum Continuous)

input current at rated output

(AC amps): 18

input voltage range

9 - 16 VDC

nominal ac output voltage

120 VAC - 5%

nonoperating temperature

-40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)

no load

(120 VAC output, typical): 23 watts

operating humidity

0 to 95% RH non condensing

operating temperature

-20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)

output frequency and accuracy

60 Hz - 0.1 Hz

output voltage

12 Volt

peak efficiency

0.91

power factor

> .95

search mode

5 Watts

transfer relay rating

2 legs at 30 A for 120 V/30 A or 240 V/60 A service

transfer time

16 msecs

wattage

2000 Watts

weight

41 lb (18.6 kg)
