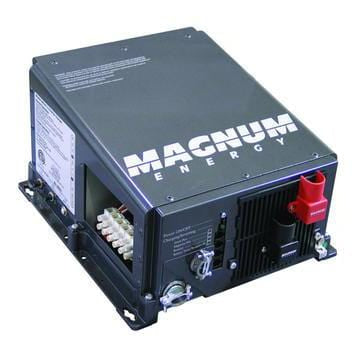

Magnum ME2012-20B 2000 Watt Modified Sine Wave Inverter Charger With Two 20 Amp Breakers

          Be the first to write a review
You Pay $878.14
$1,449.00 Save 39%
Free Shipping
7 In Stock!

Would you like to calculate shipping for this item?

The ME Series Inverter / Charger from Magnum Energy is a modified sine wave inverter designed specifically for rugged mobile applications. See the details tab for more information.

The ME Series is powerful, easy-to-use, and best of all, cost effective. These Magnum inverters are ETL Listed to the stringent requirements of UL/cUL 458 and CSA C22.2 #107.1-01, ensuring that the inverters are safe and reliable. The ME Series can be installed in four easy steps: simply connect the inverter's output to your distribution circuits or electrical panel, connect your shore power cable (AC) to the inverter's easy-to-reach terminal block, connect the batteries, and switch on the power. The ME2012-20B comes equipped with a 100 amp Power Factor Corrected charger, conformal coating on the PC boards, stainless steel fastners and dual AC 20 amp breakers.

  • Power Factor Corrected (PFC) Charger: Our PFC charger is built into all of our inverter / chargers. It uses less energy from a generator than a standard charger - using 25-30% less AC current than standard chargers.
  • Versatile mounting: Mount the ME2012-20B on a shelf, bulkhead, or even upside down
  • The lightweight aluminum base and cover also provides noise reduction and corrosion resistance.
  • Multiple ports, including an RS485 communication port for network expansion, and a remote port.
  • Accessible design: The extra large AC access cover with terminal screw block and 360 degree DC connection terminals with covers make this inverter more accessible when it needs to be.
  • Convenient switches: This comes with an on/off inverter-mounted switch with an easy-to-read LED indicator.
  • Expanded transfer relay: 60 Amp transfer service is available and can be wired in three ways, including single in / single out, single in / dual out, or dual in / dual out.
  • The ME2012-20Bis backed by a three-year (36-month) limited warranty
  • 1 msec surge current (amps AC): 60
  • 100 msec surge current (amps AC): 37
  • 5 sec surge power (real watts): 3700
  • 30 sec surge power (real watts): 3450
  • 5 min surge power (real watts): 3100
  • 30 min surge power (real watts): 2400
  • Continuous power output at 45 C: 2000 VA
  • Continuous output at 45 C: 100 ADC
  • Input current at rated output (AC amps): 15 GENERAL FEATURES AND CAPABILITIES
  • Five stage charging capability: Bulk, Absorb, Float, Equalize (requires remote), and Battery Saver
  • Battery temperature compensation: Yes, 15 ft Battery Temp Sensor standard
  • Internal cooling: 0 to 120 cfm variable speed drive using dual 92mm brushless DC fans
  • Overcurrent protection: Yes, with two overlapping circuits
  • Overtemperature protection: Yes on transformer, MOSFETS, and battery
  • Conformal coating on PCB's for corrosion protection: Yes
  • Powder coated chassis & top for corrosion protection: Yes
  • Stainless steel fasteners for corrosion protection: Yes
  • Dual AC 20 Amp breakers
  • Listings: ETL Listed to UL/cUL 458, CSA C22.2 #107.1-01
  • Warranty: Three years
  • Mounting: Shelf (top or bottom up) or bulkhead (vents up)
  • Watts : 2000 Watts
  • Output Voltage : 12 Volt
  • Waveform : Modified Sine Wave
  • Amps : 100 Amp
  • Input voltage range : 9 - 16 VDC
  • Nominal AC output voltage : 120 VAC - 5%
  • Output frequency and accuracy : 60 Hz - 0.1 Hz
  • Input Current : Maximum Continuous : 266 ADC
  • Efficiency : Peak: 95%
  • Transfer Time : 16 msecs
  • Search mode : 5 watts
  • No load : 20 watts
  • Efficiency : Charger: 85%
  • Power Factor : > .95
  • Transfer Relay Rating : 2 legs at 30 A for 120 V/30 A or 240 V/60 A service
  • Operating Temperature : -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F)
  • Nonoperating temperature : -40 degrees C to +70 degrees C (-40 degrees F to 158 degrees F)
  • Operating humidity : 0 to 95% RH non condensing
  • Max operating altitude : 15,000 (4570 m)
  • Type : Modified Sine Wave
  • Dimensions : 13.75"H x 12.65W" x 8.0D" (34.9 cm x 32.1 cm x 20.3 cm)
  • Weight : 37 lb (16.8 kg)
