Description

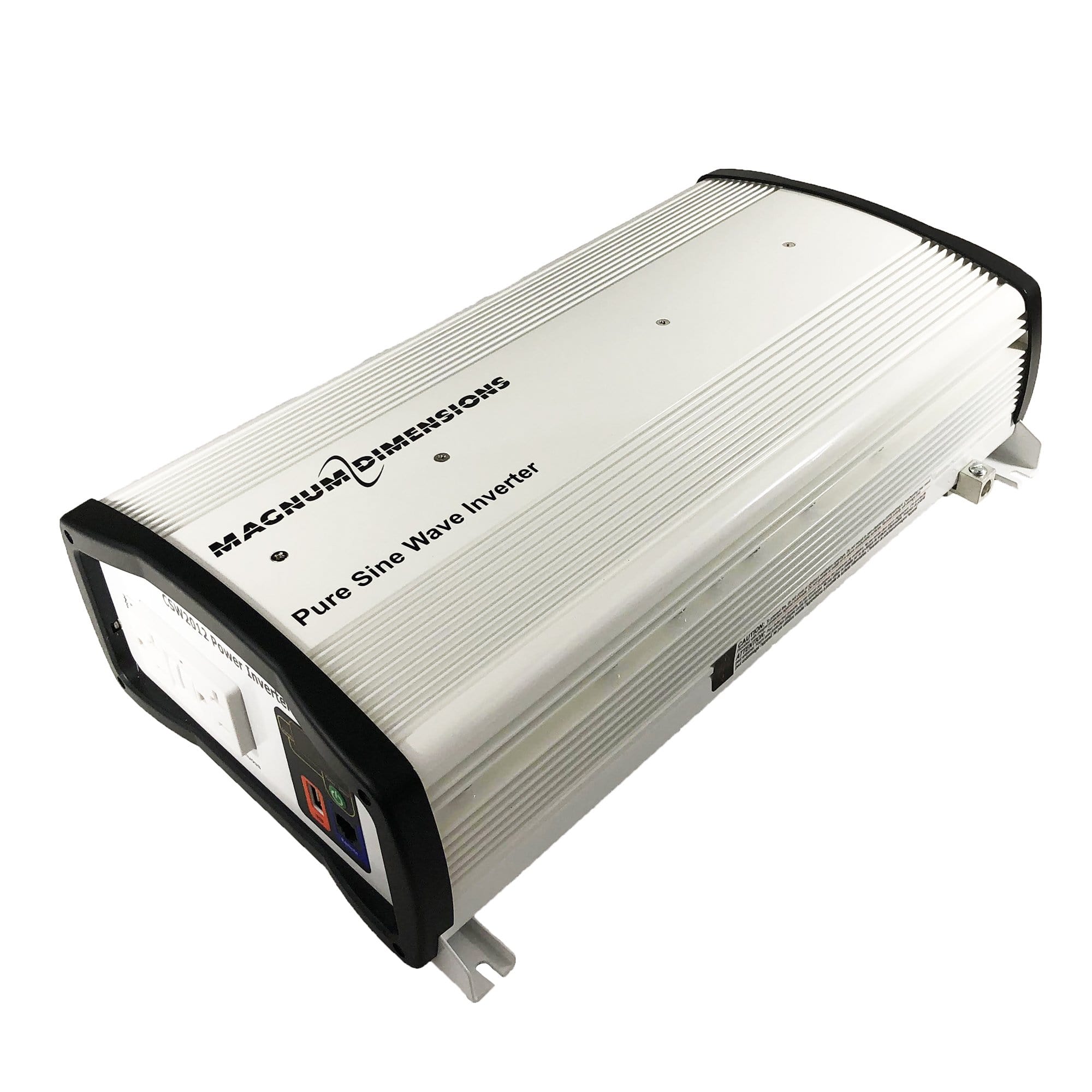

The Magnum-Dimensions CSW Series inverter from Sensata Technologies is a pure sine wave inverter designed to be powerful, yet simple to operate.
| Output Power | 2,000W |
|---|---|
| Peak Watts | 4,000W |
| Warranty | 1 Year |
| Output Voltage | 120 VAC |
| Output Current | 16.7 amps |
| Output Waveform | Pure Sine |
| Output Frequency | 60 Hz |
| Input Voltage | 12 |
| Operating Temp | 0°C to +40°C [32°F to 104°F] |
| Efficiency | > 90% |
| Dimensions | 16.5” x 9.1” x 4.3” |
|---|
| UL Certified | Yes |
|---|---|
| Phase | Single |
| Topology | High Frequency |
| Input Battery Voltage Range | 10.5 - 15.5 |
Specifications
| brand | Magnum Dimensions |
| continuous output power | at nominal DC voltage: 2000 watts |
| dimensions | 16.3"L x 9.1"W x 4.3"H |
| high voltage shutdown | 15.5 VDC |
| input current | 193 DCA |
| input voltage | 12 Volts |
| input voltage range | DC: 10.5 - 15.5 VDC |
| max operating altitude | 9843' (3000 m) above sea level |
| nonoperating temperature | -20 degrees C to +60 degrees C (-4 degrees F to 140 degrees F) |
| no load draw | < 1.2 ADC |
| operating humidity | 0 to 90% RH non condensing |
| operating temperature | -0 degrees C to +40 degrees C (32 degrees F to 104 degrees F) |
| optimal efficiency | > 90% |
| output current | AC: 16.6 AAC |
| output frequency | AC: 60 Hz +/- 0.5 Hz |
| output voltage | 120 Volts |
| output voltage range | AC: 104 - 127 VAC |
| peak surge current | 4000 watts |
| total harmonic distortion | < 3% |
| wattage | 1000 Watts |
| waveform | Modified Sine Wave |
| weight | 11.5 lbs |
