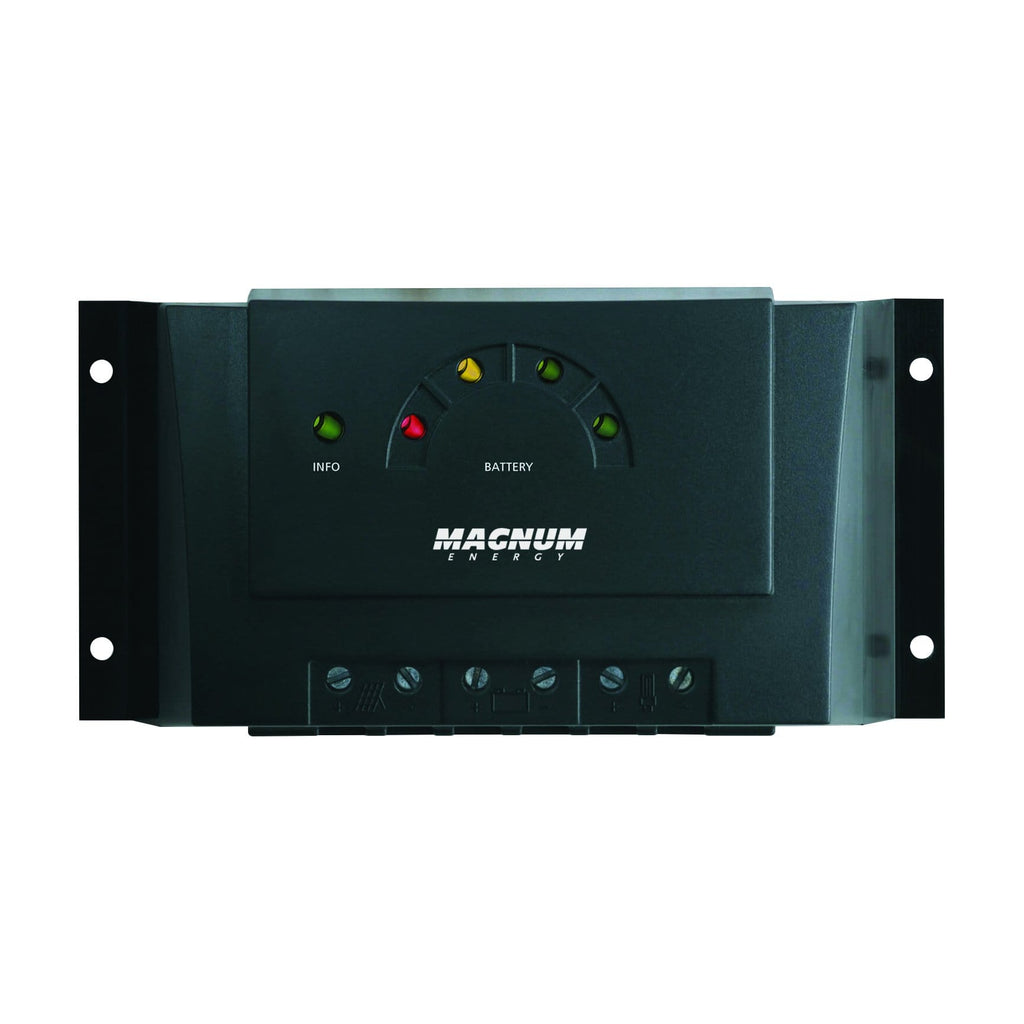

Magnum CE-6 Sensata Technologies LED Display Solar Charge Controller, 6A, 12/24V, PWM
Roll over image to zoom in Click on image to zoom
Magnum CE-6 Sensata Technologies LED Display Solar Charge Controller, 6A, 12/24V, PWM

Magnum CE-6 Sensata Technologies LED Display Solar Charge Controller, 6A, 12/24V, PWM

Sensata TechnologiesSKU: CE-6
Price:
$8.45
Stock:
In stock (18 units)
Free Shipping* (Some exclusions apply)true

Description

The Magnum Energy CE Series Charge Controllers by Sensata Technologies are an excellent, affordable choice for when simple controls and low self-consumption are in order for your charge controller.

  • Serial topology with MOSFETs
  • Automatic detection of voltage
  • Voltage regulation
  • PWM control
  • Multistage charging technology
  • Current compensated load disconnection
  • Automatic load reconnection
  • Temperature compensation
  • Negative earthing of one or positive earthing of several terminals possible
  • Monthly equalization charge
  • Integrated Light

Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Ambient Temperature -13° F to 122° F (-25° C to +50° C)
Boost Charge Voltage 14.4 V (28.8 V)
Charge Current 6 ADC
Deep discharge Protect (LVD): 11.2 V to 11.6 V (22.4 V to 23.2 V)
Degree of Protection IP 31
End-of-Charge Voltage 13.9 V (27.8 V)
Load Current 6 A
Module Current 6 A
MPPT No
Open Circuit Voltage Solar Module (at minimum operating temperature): < 47 V
Output Current 6 A
Power Consumption < 4 mA
Reconnection Voltage (LVR): 12.4 to 12.7 V (24.8 V to 25.4 V)
Set Battery Type Gel
System Voltage 12V (24V)
Terminal (fine/single wire): AWG 12 / 9 (4 mm2 / 6 mm2)
