Description

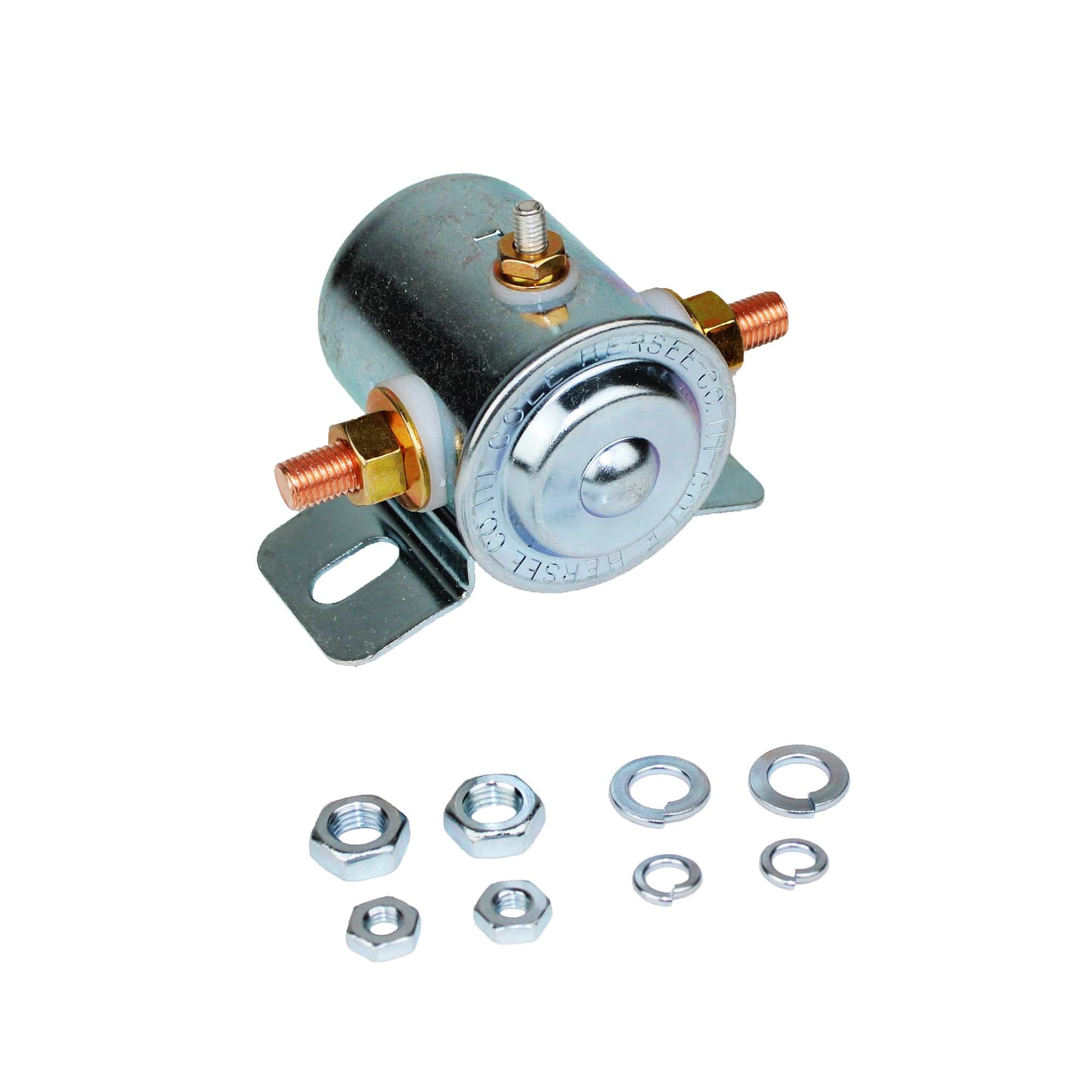

This is a 12-volt, 750A, SPST intermittent duty general-purpose relay. The individually boxed, three-stud, normally open solenoid has a plated steel case and curved bracket. Relay comes with hardware included.
Features:
- Intermittent Duty
- SPST
- Chassis Mounted
- Insulated
Includes:
- Solenoid
- 4 Nuts
- 4 Washers
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Amps | 120, 750 A – Make / 65, 100 A – Break |
| Bracket mounting holes | 5/16" x 19/32" (7.9 x 15.1 mm) on 2 13/64" centers (56.0 mm); 9/32" x 25/64" on 2 7/64" centers; 9/32" x 1/2" on 2 13/64" centers |
| Circuitry | Single-Pole, Single-Throw (SPST) |
| Contact Materials | Copper |
| Contact Threads | 5/16"-24 Threads hex nuts and lock washers included |
| Contacts | Normally Open |
| Continuous Amps | 750A |
| Housing Materials | Phenolic/Plated Steel, Plated Steel, PVC Coated |
| Ohms | 4.4 |
| Terminal Material | Copper |
| Terminal Threads | 10-32" hex nuts and lock washers included |
