Description

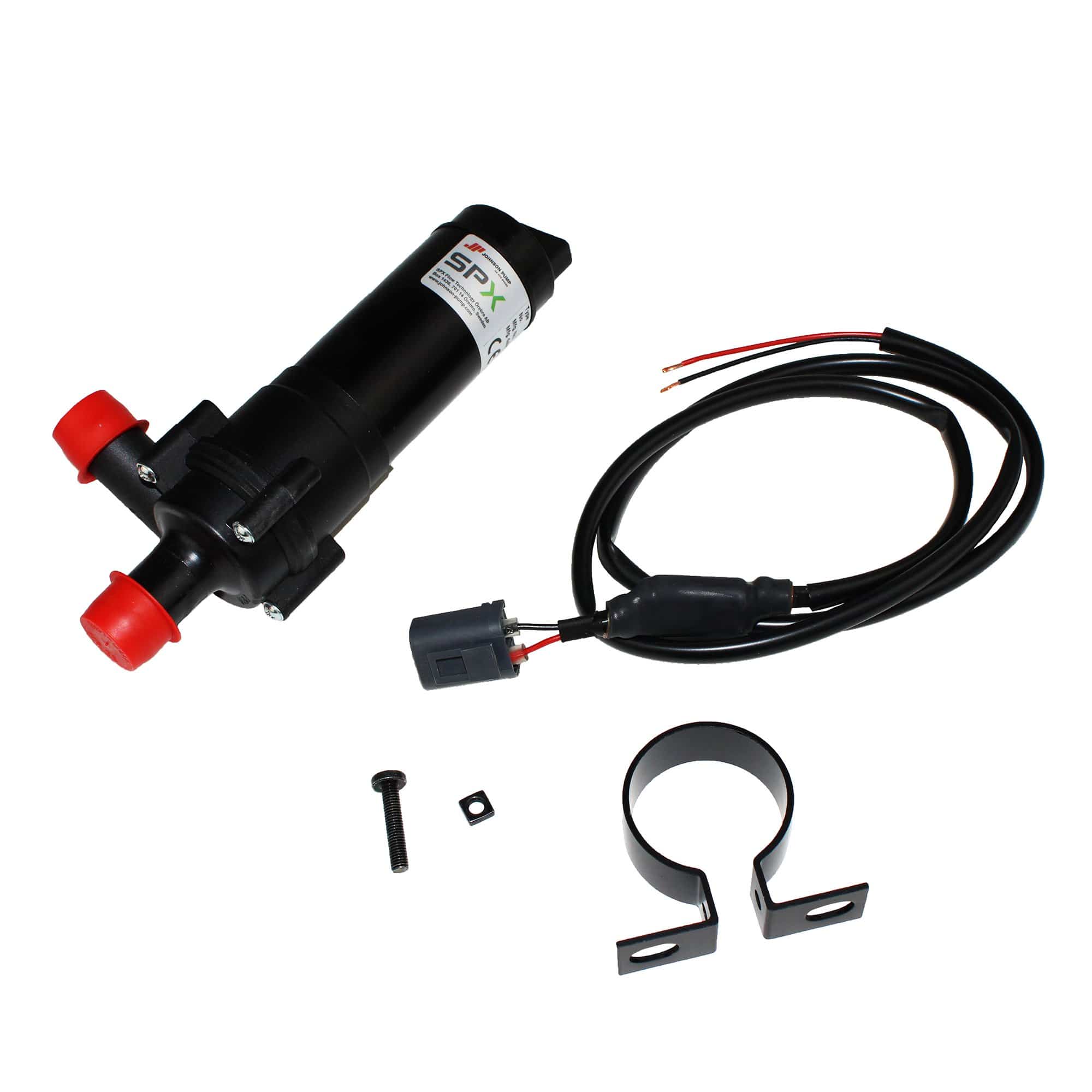

This is a mag drive centrifugal circulation pump. Heavy Duty Magnetically Driven, Seal-Less Circulation Pumps with Brushed motors for continuous use. Compact and powerful, ideal for circulation duties such as: Circulation of water/antifreeze in heating system for cars, boats, recreation vehicles, etc.; Circulation for cooling fresh water in vehicles; All-round pumps wherever self-priming is not essential. Liquid temperature: Minimum -40F (-40C), Maximum +212F (+100°C), do not allow water to freeze inside pump.
- The CM-series pumps are normal-priming centrifugal pumps and should be mounted in a manner that ensures that they are always flooded or else be primed before being switched on.
- The pumps should not be used for soiled water containing hard particles.
CAUTION! Do not pump gasoline, solvents, thinners, highly concentrated or organic acids. If corrosive fluids must be handled, pump life will be prolonged if flushed with water after each use or after each work day.
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Dry Running | Max. 30 minutes |
| Flow | 5.0 GPM (18,5 l/min) |
| Housing O-Ring | EPDM |
| Impeller | PPS Thermoplastic |
| Input Power | Max. 14W |
| Liquid | Water/glycol mixture; max. 60% glycol, fresh water |
| Liquid Temp. | Min. -40°C Max. +100°C (Min. -40°F Max. 212°F) |
| Motor | 24 VDC Enclosed Permanent Magnet, Ball Bearing, Continuous Duty. Up To 5000 Hour Motor Life. IP67 Rating, Weather-Proof and Dust-Proof, Not Submersible. |
| Mounting | Separate universal bracket for flat surfaces |
| Port Size | 3/4" (20mm) Hose |
| Pump Body | PPA Thermoplastic |
| Shaft | Stainless Steel |
| System Pressure | 2.5 bar max (36 psi) |
