Description

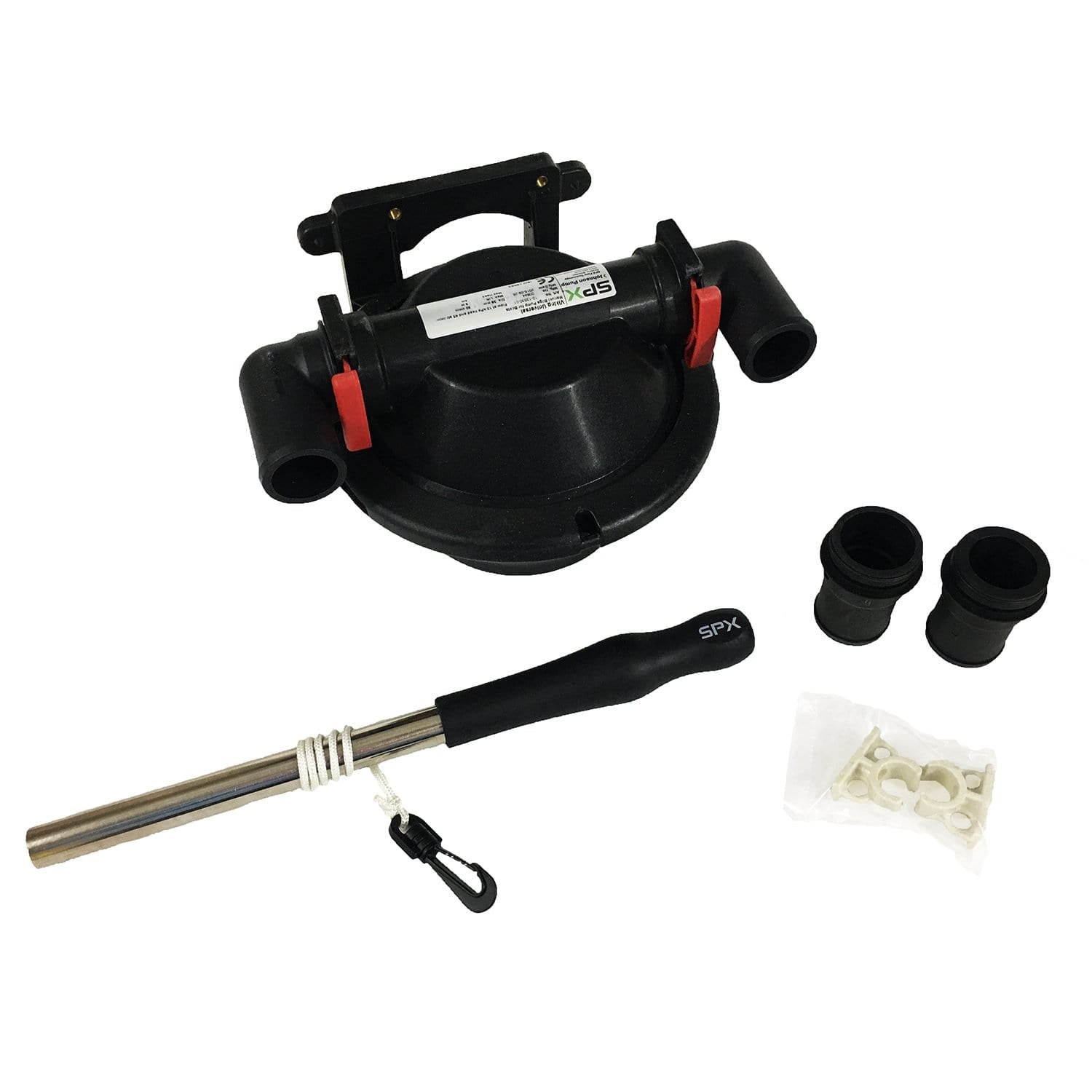

The 10-13530-01 is a 38 millimeter Viking universal manual bilge pump
Specifications
| body and cover | Polypropylene plastic reinforced with 30% fiberglass |
| combined suction/head | 7M (23') |
| connection | KlickTite connectors 38mm (1-1/2") hose. Both straight and 90┬░ bends are included |
| diaphragm | Nitrile rubber |
| max. liquid temp | +60┬░C (140┬░F) |
| maximum head | 4M (13') |
| maximum suction | 3M (10') |
| valves | Nitrile rubber |
| weight | 1.5 kg (3.3 lbs) |
| wetted parts | PP30GF, PA66 GF30, POM, stainless steel, nitrile rubber |
