Description

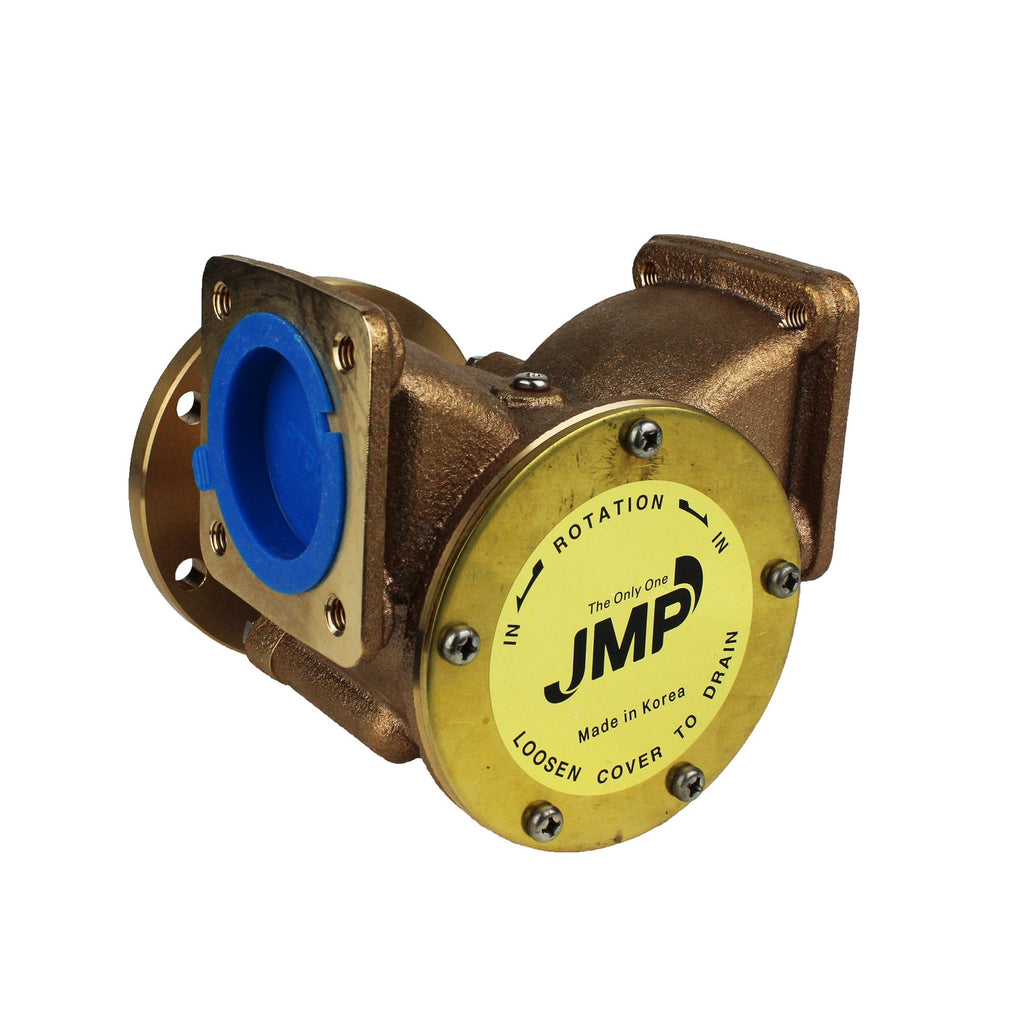

This is a Volvo Penta OEM replacement engine cooling raw water pump, see replacement and compatibility specifications below.
- Uses JMP Impeller p/n: 8301-01K
- Port Type: 2" Flange
- Pump Size (LxWxH): 244mm x 152mm x 147mm
- Pump Weight (approx): 21.50 lbs (9.8 kgs)
- Replaces Genuine Volvo Penta Pump p/n(s): 3829313 (Old 866396), 3583112 (Old 845189), 3829312
- Engine Model(s): TAMD120/121/122, TMD102A, TAMD102A, TAMD102D, TAMD103A-A, TAMD122A, TMD122A, TAMD122P-A, TAMD122P-B, TAMD122P-C
- Parts Internally Compatible to Genuine: YES
- Major Service Kit (All Internal Parts): JSK0030 (*Sold Separately)
- Minor Service Kit: JSM0031 (*Sold Separately)
- Plug & Play Replacement
- Heavy Duty Marine Grade Casting
- Marine Grade Shaft (3X Series Non-Magnetic)
- High Performance Flexible Impeller
- Mechanical Seal instead of Lip Seal
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Pump Size (LxWxH) | 244mm x 152mm x 147mm |
| Warranty | 1-Year Warranty from Manufacturer |
