Description

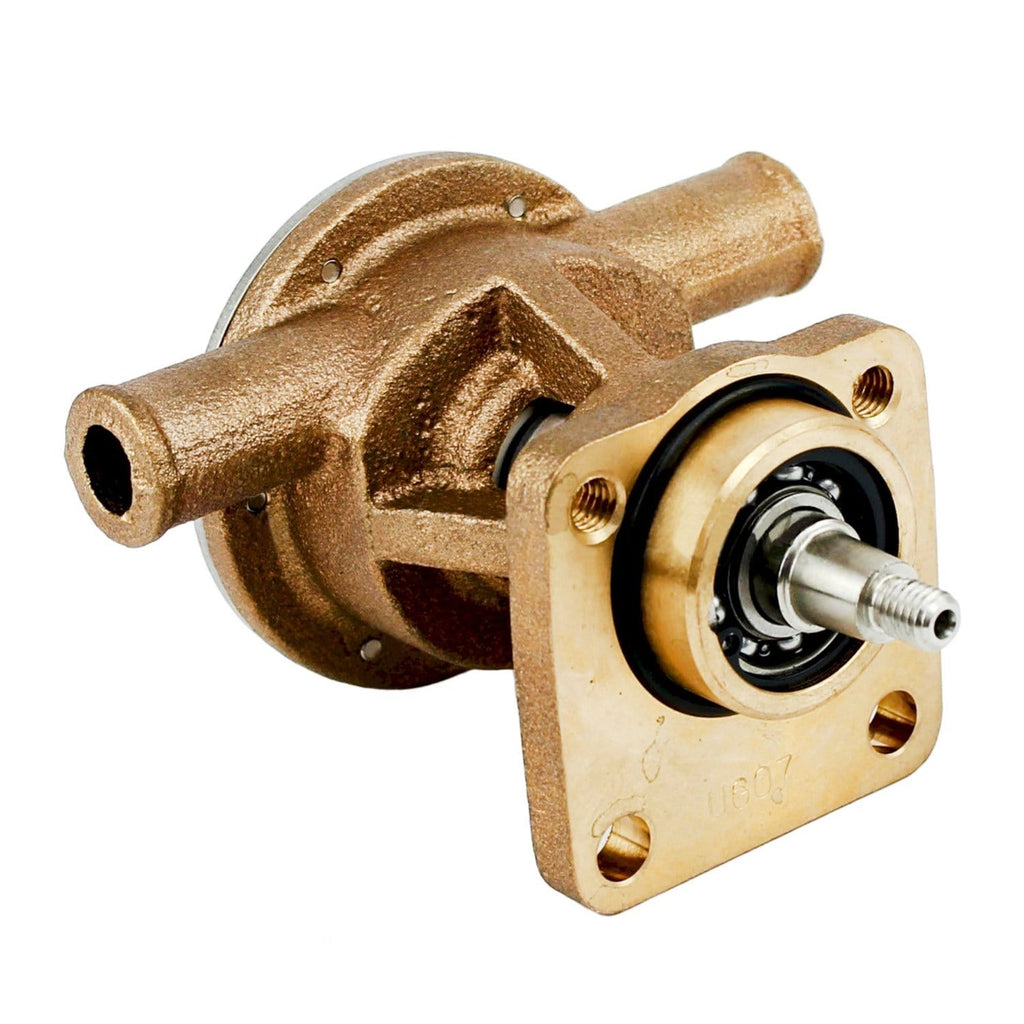

The JPR-NL08IH is a Northern Lights engine cooling pump replacement by JMP Marine.
Internal parts are NOT compatible with genuine. Improved performance and quality due to changes made to builtin cam, o-Ring for cover, mechanical seal, oil seal, and shaft.
Features:
- Genuine Engine MFG Sea Water Pump P/N: Northern Lights 25-12007
- Plug & Play Replacement
- Strong Bronze Body (Heavy Duty Marine Grade Casting)
- Long Life Mechanical Seal instead of Lip Seal
- High Performance and Long Life Flexible Impeller
- Marine Grade Shaft (3X Series Non-Magnetic)
- Integrated Cam Designed with Easy Replacement of Spare Parts
- O-Ring Seals at End Cover (Impeller Cover) Instead of a Gasket
Includes:
- (1) JPR-NL08IH Engine Colling Raw Water Pump Replacement
- (1) O-Ring Mounting Gasket
Compatible Engine “Generator” Models:
- 6KW and under Series Generators
- M643
- M643K
- M643M
- NL643
- M673
- M673D
- M673L
- M673L2
- M673L3
- M673LD2
- M673LD3
- NL673
- NL673L
- NL673L2
- NL673L3
Replaces:
- Genuine Northern Lights Pump 25-12007
- Genuine Northern Lights Pump NL 145016820 (Old Part Number)
- Genuine Northern Lights Pump NL 25-18305 (Old Part Number)
- Jabsco 30415-7001
Specifications
genuine jabsco pump p/n | 30415-7001 |
jmp impeller | 7070-01K |
major service kit | JSK0081 |
minor service kit | JSM0088 |
port size | 1/2" Hose |
pump size | 110 x 117 x 81 mm |
pump weight | 3.30 lbs (1.50 kgs) |
