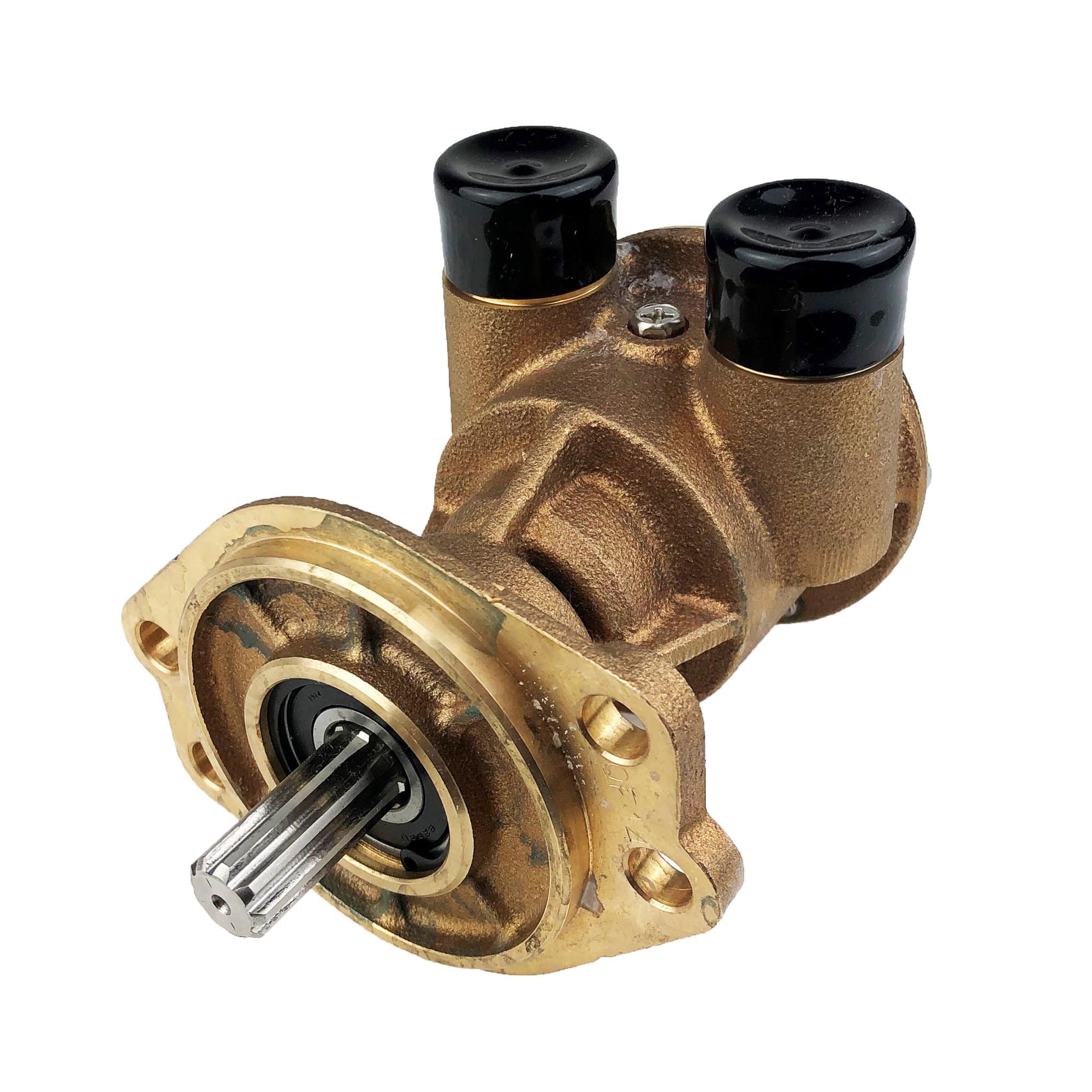

JMP Marine JPR-JD25UH John Deere Engine Cooling Seawater Pump Replacement

JMP MarineSKU: JPR-JD25UH

Price:
Sale price$337.65 Regular price$499.99 Save $162.34
Stock:
5 In stock Free Shipping

Description

The JPR-JD25UH is a John Deere replacement engine cooling seawater pump by JMP Marine.

Internal parts are NOT compatible with genuine pump. Better quality and performance due to changes made to the end cover, o-ring for cover, cover screw, cam, wear plate, oil seal, mechanical seal, and shaft.

Features:

  • Genuine Engine MFG Sea Water Pump P/N: RE535944, RE503068, RE525563
  • Heavy Duty Marine Grade Casting
  • Marine Grade Shaft (3X Series Non-Magnetic)
  • Screw with Hexa Head / Driver
  • O-Ring End Cover Packing
  • High Performance Impeller
  • High Flow Capacity
  • Fast Flow Velocity
  • Forged Cam

Compatibility:

  • John Deere Engine Model 3029
  • John Deere Engine Model 4045DFM50
  • John Deere Engine Model 4045DFM70
  • John Deere Engine Model 4045TFM50
  • John Deere Engine Model 4045TFM75
  • John Deere Engine Model 4045TFM85
  • John Deere Engine Model 6068SFM50
  • John Deere Engine Model 6068TFM50
  • John Deere Engine Model 6068TFM75
  • John Deere Engine Model 6068TFM76
  • Kohler Engine Model 40E02/33EF02
  • Kohler Engine Model 65E02/55EF02
  • Kohler Engine Model 30E02/20EF02
  • Kohler Engine Model 99E02/80LF02

Replaces:

  • Genuine John Deere Pump DZ116559
  • Genuine John Deere Pump RE535944
  • Genuine John Deere Pump RE503068
  • Genuine John Deere Pump RE525563
  • Johnson Pump 10-24753-01
  • Johnson Pump 10-24907-01 (F7B-9)
  • Onan Pump 132-043

Specifications

jmp impeller 7400-01K
major service kit JSK0076
minor service kit JSM0024
ports 1" Pipe
pump weight 6.25 LBS
shaft Spline Drive (9 Splines)
