Description

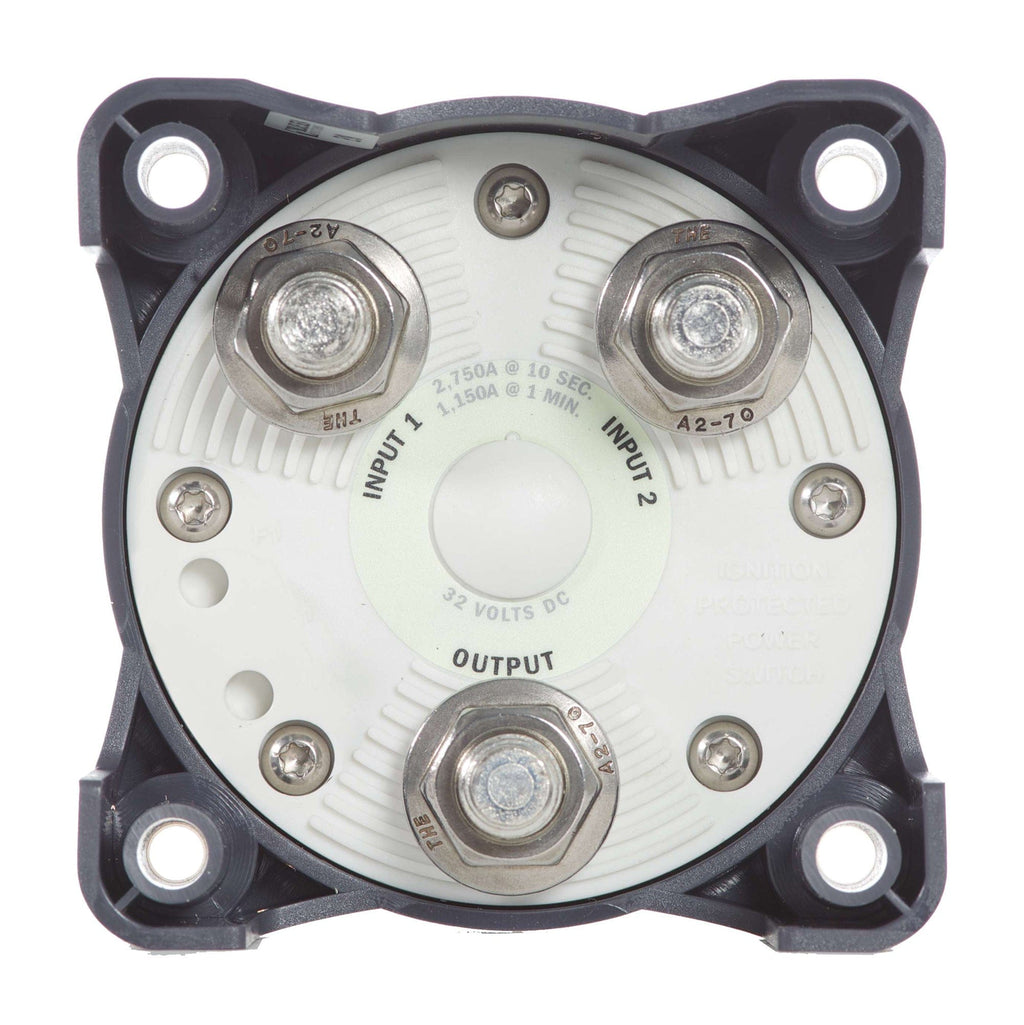

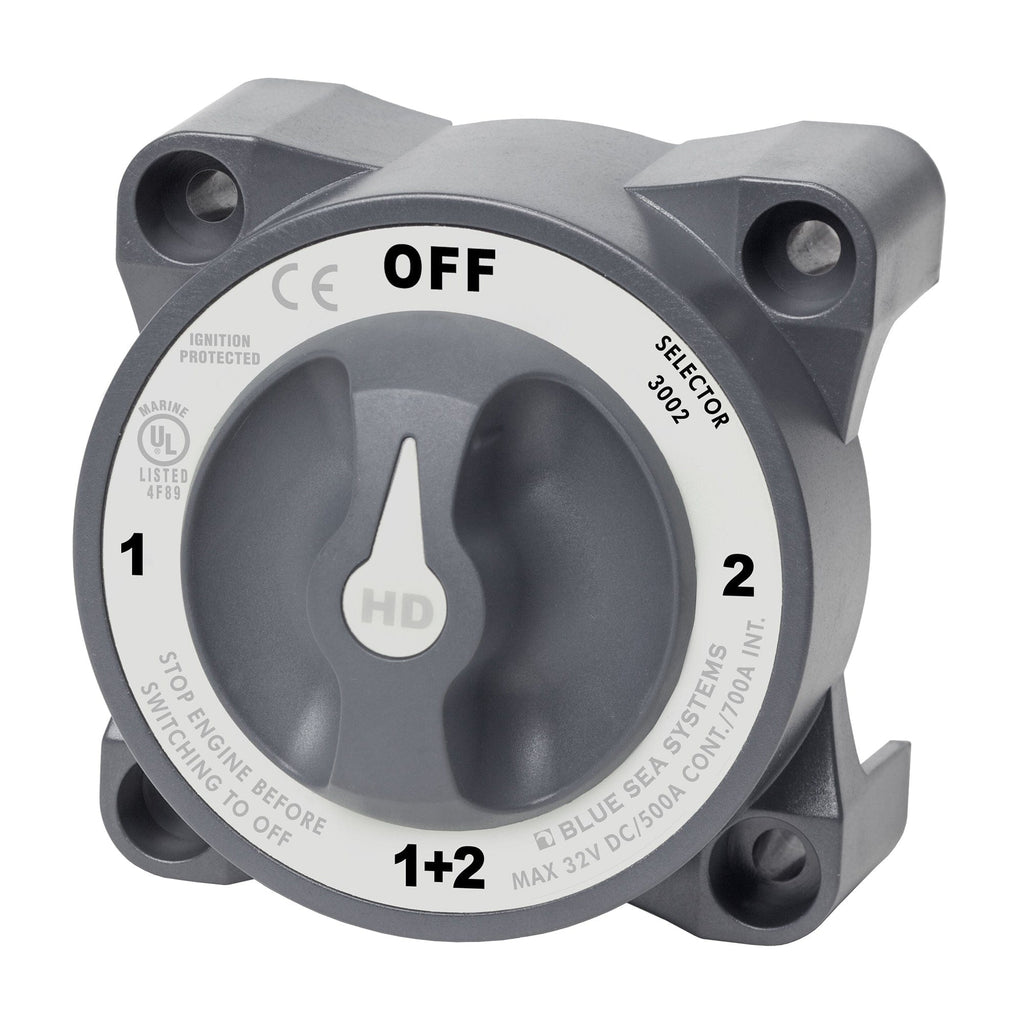

The Blue Sea Systems 3002 HD Selector Battery Switch is designed for high-performance battery management, offering reliable switching capabilities for marine and heavy-duty applications. This switch allows you to select between multiple battery banks or isolate them as needed, ensuring efficient and safe operation.
- Make-before-break contact design allows switching between battery banks without power interruption
- Ignition protected—safe for installation aboard gasoline powered boats
- Case design allows surface or rear panel mounting
- Accepts two 4/0 AWG (95mm²) battery cables
Specifications
Color: Grey
Mounting Holes: Accept 1/4" (M6) Screw
Switch Type: Selector 4 Position
Stud Material: Tinned Copper
Terminal Stud Size: 1/2" (M12)
Switch Positions: 4
Alternator Field Disconnect: No
Max Voltage: 32V DC
Continuous Rating: 500A
Intermittent Rating: 700A 5 minutes
Battery Inputs: 2
Cable Quantity to Meet Ratings: Two Cables / Terminal
Cable Size to Meet Ratings: 4/0 AWG (120mm²)
