Description

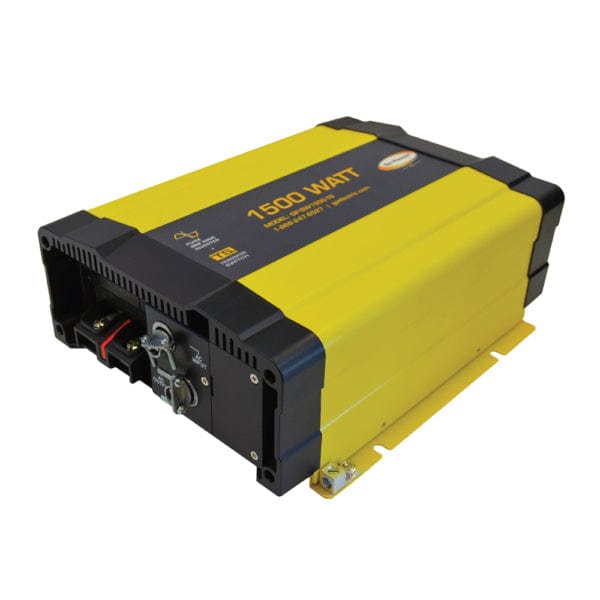

This is a 1500-watt, 12-volt pure sine wave inverter with built in 20-amp transfer switch. Providing a robust replica of AC power, it is able run more circuits and a solar charge controller can be used to turn on and off.
Features:
- Run more circuits: microwave, TV, outlets, etc.
- Perfect replica of AC power
- Built-in 20-amp Transfer Switch
- Can use a solar controller to turn on and off (GP-PWM-30)
- 2-year manufacturer's warranty
- Run 1500 watts of power from battery
- Durable, low profile design
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| BAT.Low Alarm ± 3% | 10.5VDC |
| BAT.Low Shut-down ± 3% | 10.0VDC |
| Circuit Breaker | 20A |
| Continuous Output Power | 1500W (de-rating after 40°C, refer to de-rating curve) |
| DC Voltage | 12VDC |
| Dimensions (L x W x H) | 283x128x351 mm / 11.14×5.04×13.82 inch |
| Efficiency Max. | 88% |
| Frequency | 50 / 60 Hz ± 0.1% |
| Input Protection | Reverse Polarity (Fuse) / Under Voltage / Over Voltage Protection / AC over current (Breaker) |
| No Load Current | < 0.9A |
| Operating Temp. | -20 °C~40 °C refer to GP-SW1500TS power de-rating curve |
| Output Power (<3 Min) | 1500-1800W |
| Output Protection | Short Circuit / Overload / Over Temperature / Over Voltage |
| Output Voltage | 100 / 110 / 115 / 120VAC ±3% |
| Output Waveform | Pure Sine Wave |
| Peak Power (<3 Min) | 1800-2400W |
| Regulations and Safety | Certified UL 458 (6th Edition), Certified FCC class B |
| Relative Humidity | Max. 90%, non-condensing |
| Storage Temp. | -40 °C~70 °C |
| Surge Power (<0.2Sec) | 2400W |
| Transfer Switch | Standard ATS Inverter to utility AC: <5ms.: Utility AC to inverter. <10ms. |
| Voltage Range | 10.0 ~ 16.0VDC |
| Warranty | 2 Year Warranty from Manufacturer |
