Description

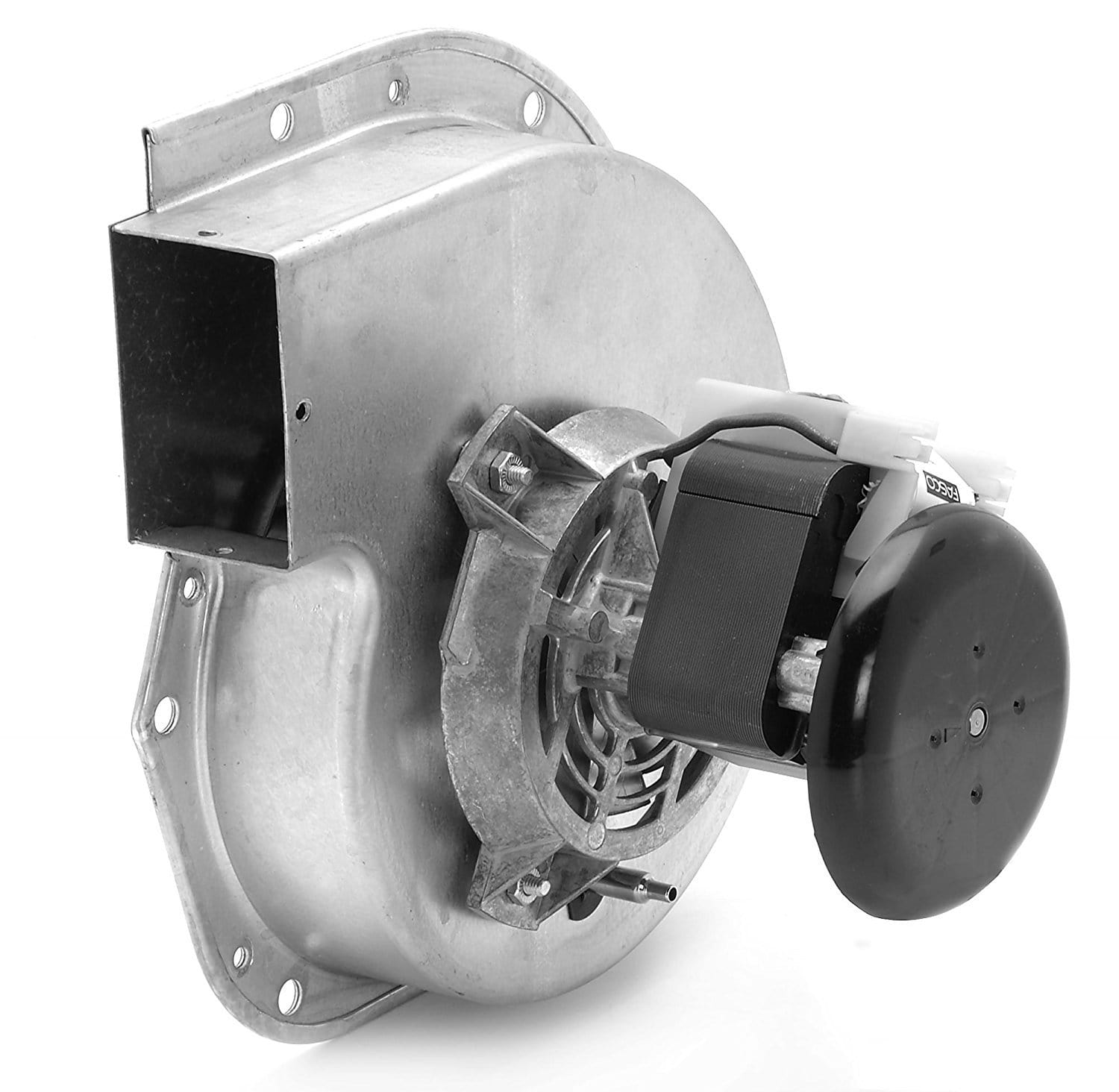

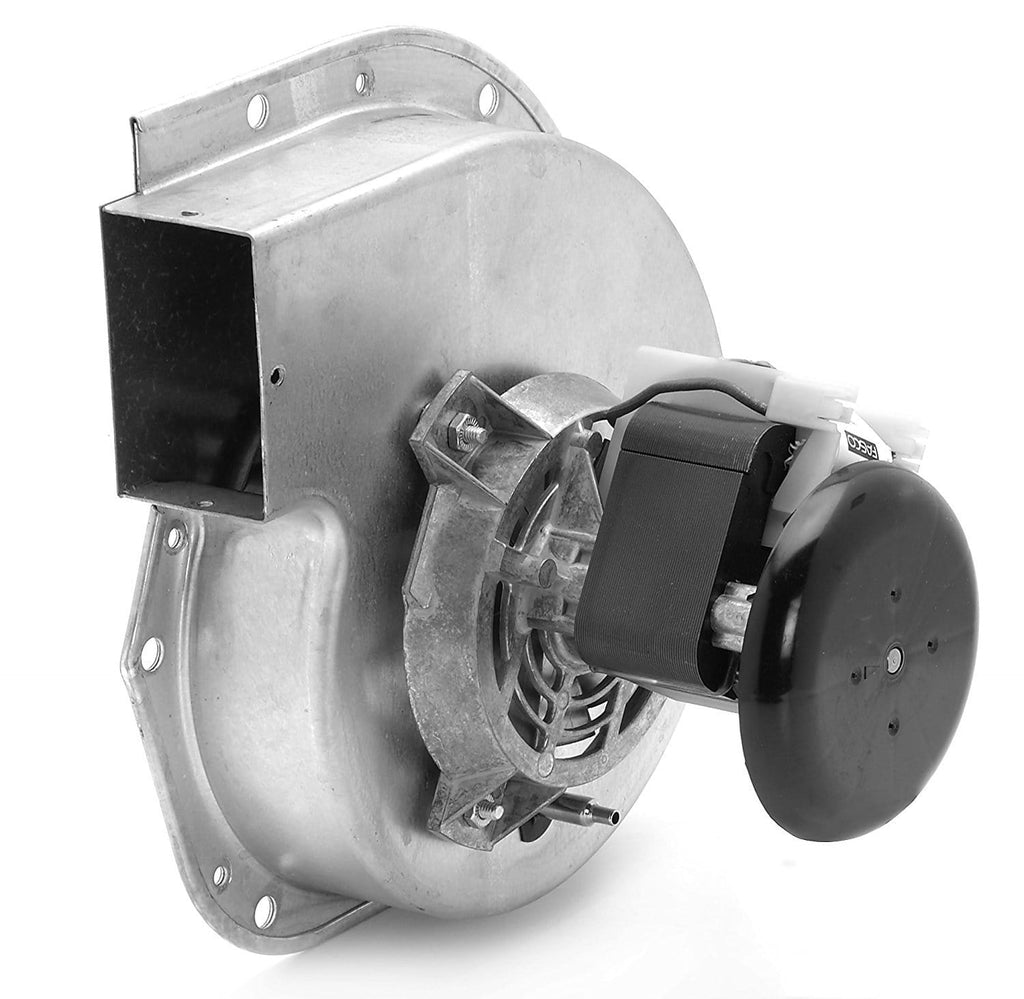

The Amana A181 is a 115V draft inducer blower from Fasco.
Features:
- OEM Direct Replacement - Draft Inducer Blower
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 17" Leads with Spade Terminals
Replaces:
-
Fasco
- 7058-0136
-
Amana
- 20044403
- 7058-0136
-
Goodman
- 200-44403
- 7058-0136
Specifications
| amps | 1.5 |
| amps at free air | 0.6 |
| bearings | Ball |
| brand | Fasco |
| diameter | 3.3" |
| enclosure | Open |
| frame | 3.3 (C-frame) |
| hertz | 60 |
| overload | Automatic |
| phase | 1 |
| rotation | CW |
| rpm | 3000 |
| rpm at free air | 3100 |
| speeds | 1 |
| type | Shaded Pole |
| voltage | 115 |
| weight | 6.9 lbs |
