Description

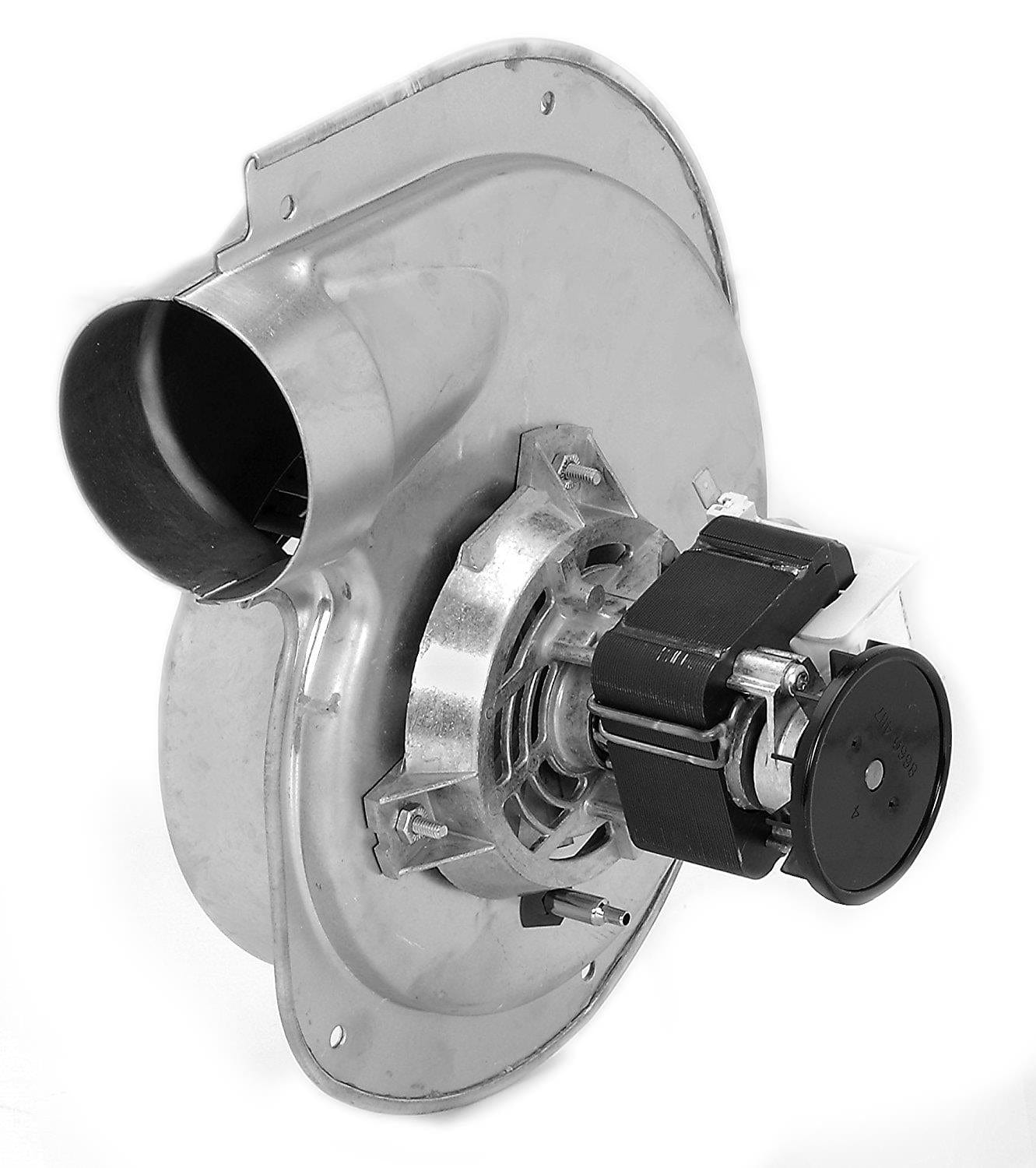

The ICP A172 is a 115V draft inducer blower from Fasco.
Features:
- OEM Direct Replacement – Draft Inducer Blower
- C-Frame
- Shaded Pole
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 0.25 x .032 Male Terminals
Replaces:
-
Fasco
- 7002-2633
- 7002-2792
-
ICP
- 1010975
- 1010975P
- 7002-2633
- 7002-279
Specifications
| amps | 0.7 |
| amps at free air | 0.65 |
| bearings | Sleeve |
| brand | Fasco |
| cfm | 64 |
| diameter | 3 3/8" |
| enclosure | Open |
| frame | 3.3 |
| hertz | 60 |
| horse power | 1955-01-01 00:00:00 -0500 |
| nameplate cfm | 64 |
| overload | Automatic |
| phase | 1 |
| rotation | CW |
| rpm | 3150 |
| rpm at free air | 2400 |
| speeds | 1 |
| type | Shaded Pole |
| voltage | 115 |
