Description

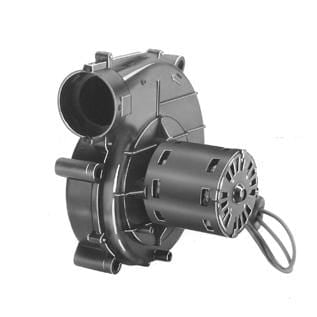

The Rheem A142 is a 115V draft inducer blower from Fasco.
Features:
- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Ball Bearing
- 32" Leads with Pin Terminals
Replaces:
-
Fasco
- 7062-1881
- 7062-2513
- A142
-
Rheem
- 70-22165-81
- 7062-1881
- 7062-2513
- FB-RFB142
-
AllTemp
- FB-RFB142
-
PMI/Vulcan Hart
- 416673-00003
Specifications
| amps | 0.7 |
| amps at free air | 0.6 |
| bearings | Sleeve |
| brand | Fasco |
| capacitor | 4MFD-370V |
| diameter | 3.3" |
| enclosure | Open |
| hertz | 60 |
| nameplate cfm | 159 |
| overload | Automatic |
| phase | 1 |
| rotation | CW |
| rpm | 3450 |
| rpm at free air | 3100 |
| speeds | 1 |
| type | Permanent Split Capacitor |
| voltage | 115 |
