Description

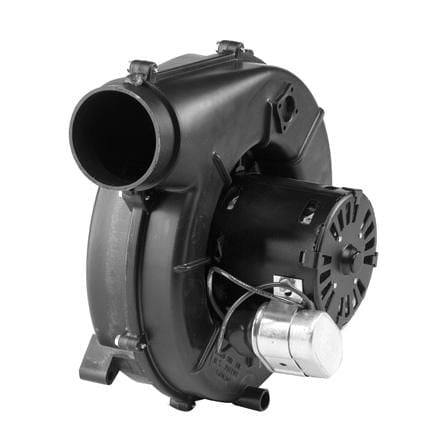

The Trane A130 is a 115V draft inducer blower from Fasco.
Features:
- OEM Direct Replacement - Draft Inducer Blower
- 3.3" Diameter
- Permanent Split Capacitor
- Thermally Protected
- Open Air Over
- Class B Insulation, 40°C Ambient
- Sleeve Bearing
- (1) 6" Lead with Amp Pin Housing Terminal & (1) 5" Lead with Amp Terminal Pin
- 90 CFM
Replaces:
-
Fasco
- 7021-4004
- 7062-3616
- 7062-3956
- 7062-4004
- 7062-4159
- 7062-4538
- 7062-4637
- 7062-4639
- 7062-4698
- 7062-5247
- 7062-9064
-
Trane
- 21D340365P03
- 4MH43
- 6217010
- 7021-400
- 7062-36167062-3956
- 7062-5247
- 7062-9064
- D330757P03
- D330757P035
- FB-RFB130
- X38040313037
- 7062-4004
- 7062-4159
- 7062-4538
- 7062-4637
- 7062-4639
- 7062-4698
-
Universal
- 9457
-
AllTemp
- FB-RFB130
-
Nordyne
- 4MH43
- 6216130
- FB-RFB130
-
W.W. Grainger
- 4MH43
- FB-RFB130
Specifications
| amps | 0.7 |
| amps at free air | 0.4 |
| bearings | Sleeve |
| brand | Fasco |
| capacitor | 4MFD-370V |
| diameter | 3.3" |
| enclosure | Open |
| hertz | 60 |
| nameplate cfm | 64 |
| overload | Automatic |
| phase | 1 |
| rotation | CW |
| rpm | 3450 |
| rpm at free air | 3100 |
| speeds | 1 |
| type | Permanent Split Capacitor |
| voltage | 115 |
