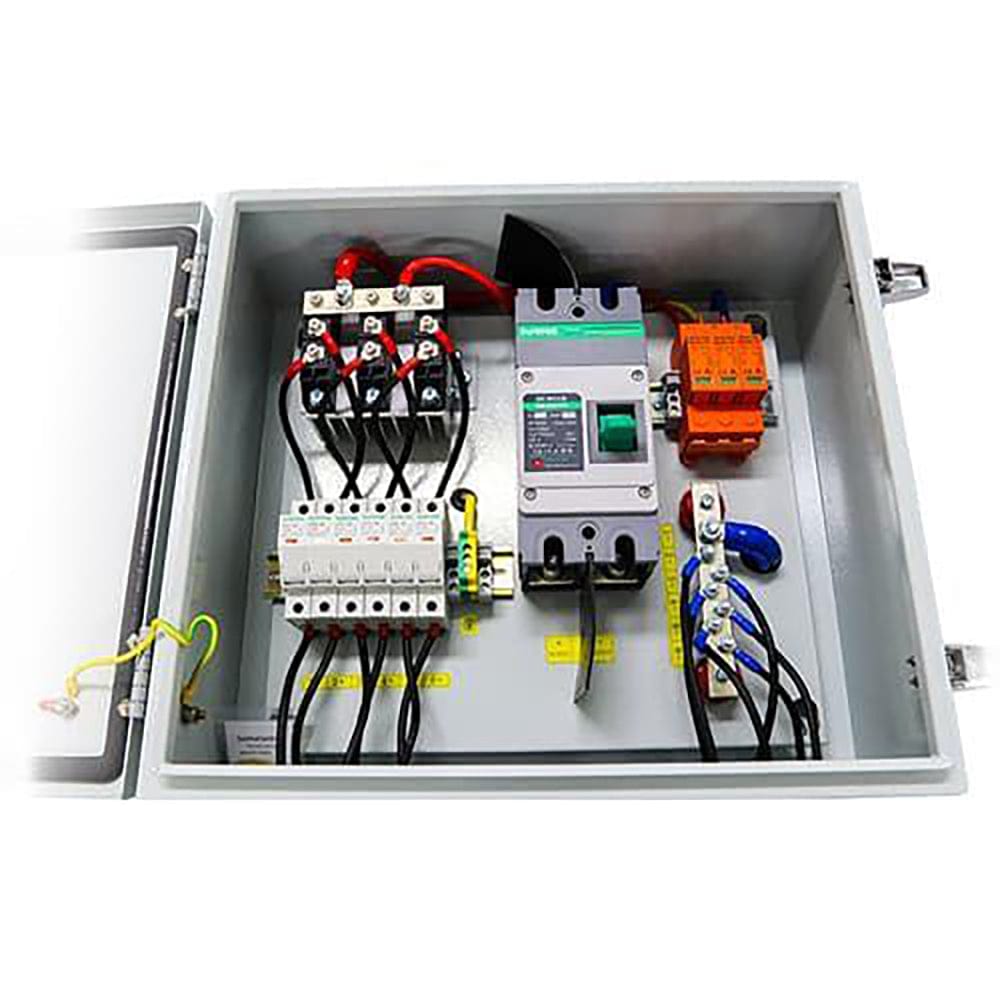

AIMS Power, COM6IN-120AO, 6 String Solar Array Combiner Box 120A 200 VDC 6 Inputs 20KW Prewired
The AIMS Power Solar Array Combiner Box provides a convenient solution for large PV solar array installations. The Combiner Box is exactly that... a box that serves as a central location for multiple input to a single output load. At 10KW/20KW output and 200Vdc input, this pre-wired box, with MC4 input and output connectors and a NEMA waterproof case is a must have for off-grid and grid tied systems. Ideal for larger solar arrays/high current systems, easing the hassle of dealing with several wires and combines all wires into one place for simple installation and maintenance. The combiner box eliminates the need for extra equipment such as output breakers, branch connectors and disconnect switches. The convenient MC4 connectors eliminate the need to hardwire, allowing for a quick plug and use solution.
Pre-wired 1000V DC max input
125A resettable output breaker
6-25A replaceable fuses
Diode protected
Lightning protected
MC4 input and out connections
DC input 6 sets
120A output
Flexible mounting options; mount on a support bracket, plinth or racking system
Connect 3-6 PV strings and 2 DC outputs per polarity
Waterproof PG9
DC output and ground protection
Optimal cooling
NEMA & IP65 rated case with tamper proof lock
Touch safe fuse holder
10 Year warranty from manufacturer
6 DC inputs
200VDC input
Max input current - 25A
Max output current - 120A
Output power - 20KW
DC fuse - 200Vdc
Output breaker - 125A
DC switch - 500Vdc/40DA
NEMA 3R IP65
Operating temp: -13F to 104F w/o derating
Altitude: 0 to 6560 ft w/o Derating
Dimensions: 20 3/8""W (includes brackets, 18 3/8""W without brackets, 17 3/8"" L (includes connectors), 7 5/8"" H
Weight: Unit 35 lb, Boxed 39 lb
