Description

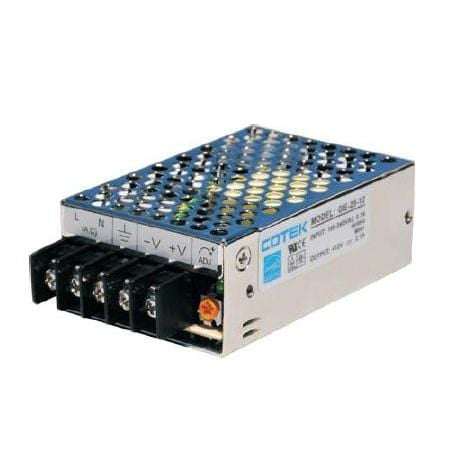

Cotek GE-25-24 26.4 Watt 1.1 Amp 24 Volt Switch Mode Single Output Power Supply
Cotek GE-25-24 26.4 Watt 1.1 Amp 24 Volt Switch Mode Single Output Power SupplyThe Cotek GE-25-24 is a 25 watt 24 volt single output switch mode power supply that installs easily in compact spaces. The no load power consumption on this unit is a low 0.5 watts. Features of the GE-25-24 include a universal input voltage range of 88v to 264v, high reliability and low ripple noise, compliance to EPA energy star requirements and a 3 year warranty. It comes equipped with long life electrolytic capacitors and will operate in high temperatures up to 70 degrees C. This unit is CE approved and has a component approval from UL.
- Switch mode single output power supply
- Low ripple noise
- High efficiency
- No load power draw:
- Cooling by free air convection
- Protections: output short circuit, over voltage, overload, low AC input voltage
- Long life electrolytic capacitors
- High operation temperature up to 70 degrees c
- Power on with LED indicator
- Universal AC input / full range
- 100% full load burn-in test
- Withstand 5g vibration test
- Output DC voltage range: 24v
- Rated current: 1.1a
- Current range: 0-1.1a
- Rated power: 26.4w
- Max ripple and noise:120 mv
- Voltage adjustment range: +/-10%
- Voltage tolerence: +/- 1%
- Line regulation+/- 0.5%
- Load regulation: +/- 0.5%
- Input voltage range: 88v ~ 264vac
- Frequency range: 50hz / 60hz
- Efficiency: 87%
- Input AC current (typ): 0.7a / 115vac
- Dimensions: 3""l x 2""w x 1.1""h
- Weight: 4 oz
- CE aprroved
- Component approval from UL
- Free shipping
Specifications
output voltage | 24 Volts |
wattage | 25 Watts |
