Description

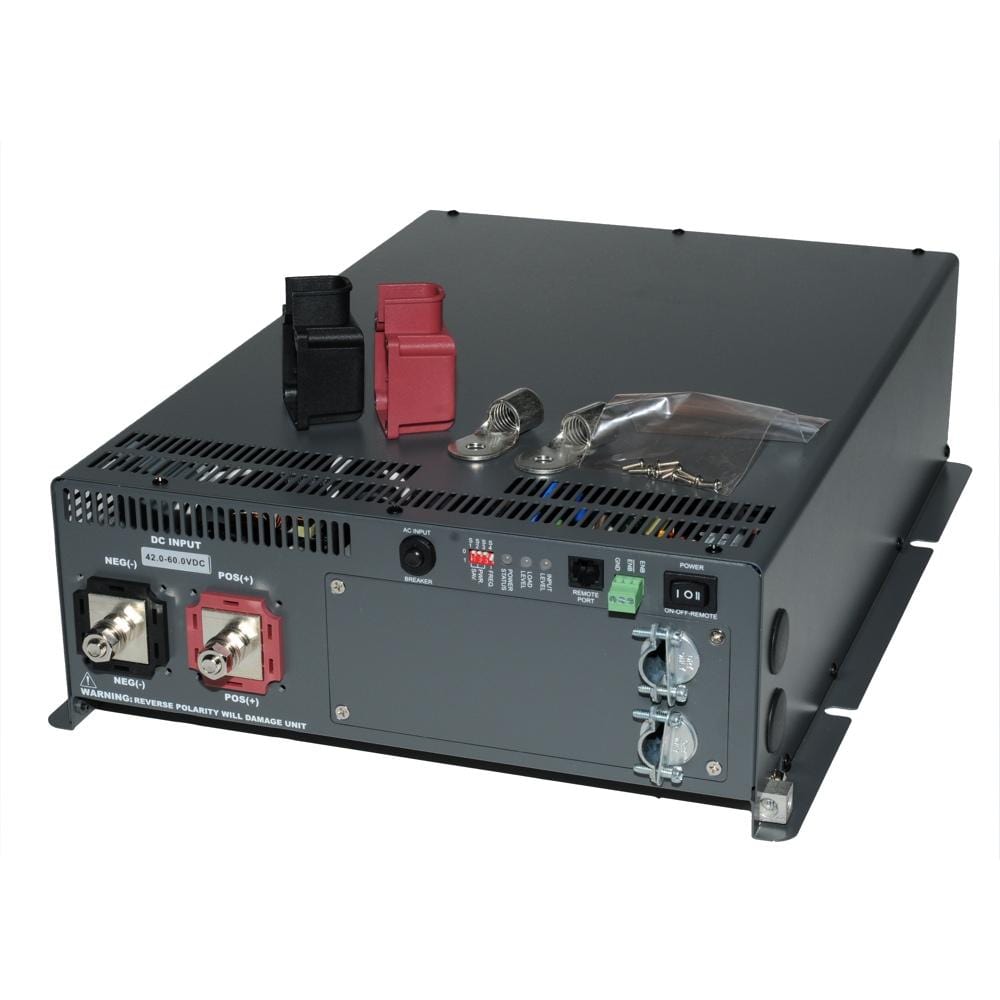

The Cotek ST2500-124 is a 24 volt 2500 watt highly reliable microprocessor controlled pure sine inverter that converts 12 volts DC to 100/110/120 volts AC power.
The unit comes equipped with a 30 amp transfer switch, load control cooling fan, 30 am circuit breaker. Features include a 5000 watt surge rating, 8-10 msec transfer time, two year warranty and a power saving mode to conserve energy. The ST2500-124 has a standby no load draw of only 0.30 amps and is compliant to FCC class A.
2 Year Manufacturers Warranty
Features:
- True sine wave output (thd<3% )
- Input & output fully isolation
- Load control cooling fan
- Advanced microprocessor
- LKow power saving mode to conserve energy
- Tri color indicators display input, outputlevel and failure status
- Drives highly reactive and capacitive loads at start moment
- Ac receptacles: hardwire
- Led indicators:input voltage level, output load level and fault status
- Fuse:20a x 10
- Synchronous ac transfer
- 30 amp transfer switch
- Optional remote control:cr6 / cr8
- Protection: reverse polarity, under voltage, over voltage, output short circuit, overload and over temperature
- Isolation resistance : i/p - o/p:100m ohms / 500vdc
- Meets ul458 safety standards
- Certificate: fcc, e13, ce
Specifications
brand | Cotek |
circuit breaker | 30 amps |
dimensions | 18"L x 13"W x 4.5"H |
full load efficiency | 0.91 |
input voltage | 24 Volts |
low battery alarm | 22vdc |
low battery shut down | 21.0vdc |
no load draw | 1.53a |
output frequency | 50 / 60 hz switch selectable |
output voltage | 100 / 110 / 120vac (AC) |
over voltage | 30.6vdc |
regulation | +/- 3% AC |
stand by current draw | 0.30a |
surge power | 5000 watts |
transfer time | inverter to utility ac: 8 - 10 msec; utility ac to inverter:16~50 msec |
voltage range | 21.0 - 30.0vdc |
wattage | 2500 Watts |
waveform | Pure Sine Wave |
weight | 26 lbs |
