Description

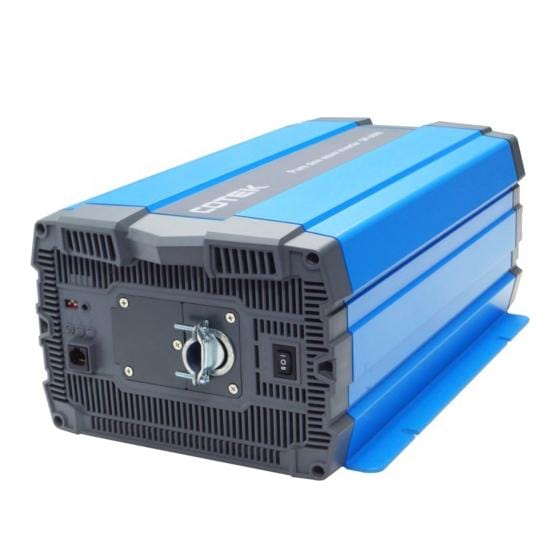

The Cotek SP-4000-248 is a 4000 watt, 48 volt DC pure sine inverter.
Specifications
accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
ac output voltage | 200 to 240 Selectable |
ac regulation | ┬▒3% |
ac voltage | 200 / 220 / 230 / 240VAC |
dc input / operating voltage | 24V |
dc input reverse polarity | By fuse |
dc voltage | 48VDC |
dry contact terminal | By relay |
e-mark | Certified CISPR 25 ISO 7637-2 |
efficiency | 0.91 |
emc standards | Certified EN 55022 class A NOTE4 ; EN 55024 EN 61000-3-2, -3-3 EN 61000-4-2, 3, 4, 5, 6, 8, 11 |
frequency | 50/60 Hz ┬▒ 0.5% Selectable |
input | 42.0 ┬▒1.0VDC (Under - Voltage Protection) |
input over - voltage recovery | 58.0 ┬▒1.0VDC |
input under - voltage recovery | 50.0 ┬▒1.0VDC |
led indicator | Input voltage level, output load level and faulty status |
maximum power output | >4000VA~4600VA (100%~115%) |
no load current | Γëñ1.0A@48VDC |
operating temperature | -20C to 40C |
output overload | Shutdown output voltage, restart to recover |
output short | Shutdown output voltage, restart to recover |
output waveform | THD <3% |
over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
power saving mode | <0.1A@48VDC |
rated power | 4000W |
remote control terminal | 6-port green terminal |
safety standards | Certified EN 60950-1 |
storage temp. | -30┬░C ~ +70┬░C |
storage temp. & humidity | 10 ~ 95% RH |
storage temperature | -30C to 70C |
surge power | <8000W |
surge power (1 sec) | <8000VA |
voltage range | 42.0 ~ 66.0VDC |
