Description

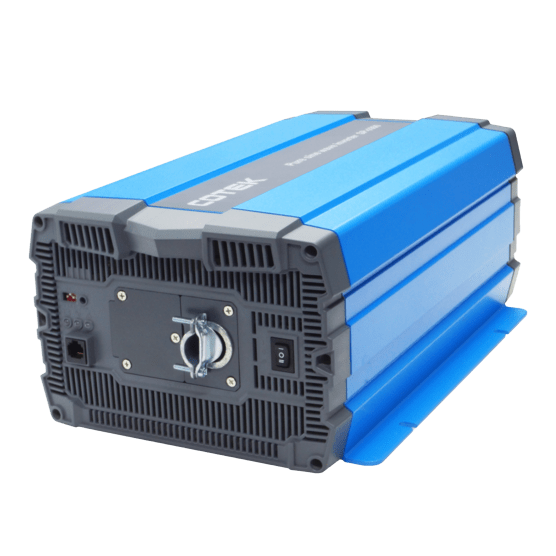

The Cotek SP-4000-148 is a 4000 watt, 115 volt AC, 48 volt DC, pure sine inverter.
Specifications
accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
ac regulation | ┬▒5% |
ac voltage | 100 / 110 / 115 / 120VAC |
brand | Cotek |
dc input reverse polarity | By fuse |
dc voltage | 24VDC |
dimensions | 10.04"W x 6.22"H x 18.19"D |
dry contact terminal | By relay |
efficiency | (Max): 92% |
emc standards | Certified FCC class A |
frequency | 50/60 Hz -/+5% |
input | 21.0 ┬▒0.5VDC (Under - Voltage Protection) |
input over - voltage recovery | 29.0 ┬▒0.5VDC |
input under - voltage recovery | 25.0 ┬▒0.5VDC |
input voltage | 48 Volts |
input voltage range | 42 - 66 Volts DC |
led indicator | Input voltage level, output load level and faulty status |
maximum power output | (1 min): >4000VA-4600VA |
no load current | Γëñ2.0A@24VDC |
operating temperature | -4 to 104 degrees F (-20 to 40 degrees C) |
output overload | Shutdown output voltage, restart to recover |
output short | Shutdown output voltage, restart to recover |
output voltage | 100/110/115/120 Volts AC |
output waveform | Pure Sine Wave |
over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
power saving mode | <0.2A@24VDC |
rated power | 4000 VA |
regulation | -/+5% AC |
remote control terminal | 6-port green terminal |
safety standards | Certified UL 458 |
storage temp. | -30┬░C ~ +70┬░C |
storage temp. & humidity | 10 ~ 95% RH |
surge power (1 sec) | <8000VA |
voltage range | 21.0 ~ 33.0VDC |
wattage | 4000 Watts |
waveform | Pure Sine Wave |
