Description

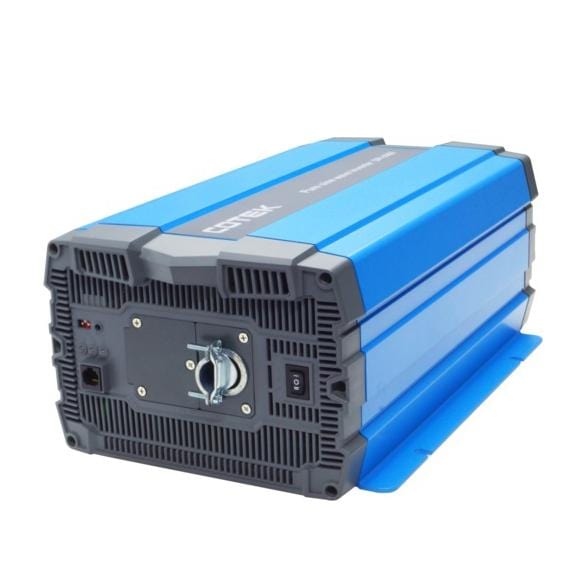

The Cotek SP-4000-124 is a 4000 watt, 110 volt AC, 24 volt DC, pure sine inverter.
Specifications
| accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
| ac regulation | ┬▒5% |
| ac voltage | 100 / 110 / 115 / 120VAC |
| brand | Cotek |
| dc input reverse polarity | By fuse |
| dc voltage | 24VDC |
| dimensions | 10.04"W x 6.22"H x 18.19"D |
| dry contact terminal | By relay |
| efficiency | (Max): 91% |
| emc standards | Certified FCC class A |
| frequency | 50/60 Hz -/+5% |
| input | 21.0 ┬▒0.5VDC (Under - Voltage Protection) |
| input over - voltage recovery | 29.0 ┬▒0.5VDC |
| input under - voltage recovery | 25.0 ┬▒0.5VDC |
| input voltage | 24 Volts |
| input voltage range | 21 - 33 Volts DC |
| led indicator | Input voltage level, output load level and faulty status |
| maximum power output | (1 min): >4000VA-4600VA (100%-115%) |
| no load current | Γëñ2.0A@24VDC |
| operating temperature | -4 to 104 degrees F (-20 to 40 degrees C) |
| output overload | Shutdown output voltage, restart to recover |
| output short | Shutdown output voltage, restart to recover |
| output voltage | 100/110/120/150 Volts AC |
| output waveform | Pure Sine Wave (THD<5%@Normal Load) |
| over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
| power saving mode | <0.2A@24VDC |
| rated power | 4000 VA |
| regulation | -/+5% AC |
| remote control terminal | 6-port green terminal |
| safety standards | Certified UL 458 |
| storage temp. | -30┬░C ~ +70┬░C |
| storage temp. & humidity | 10 ~ 95% RH |
| surge power (1 sec) | <8000VA |
| voltage range | 21.0 ~ 33.0VDC |
| wattage | 4000 Watts |
| waveform | Pure Sine Wave |
