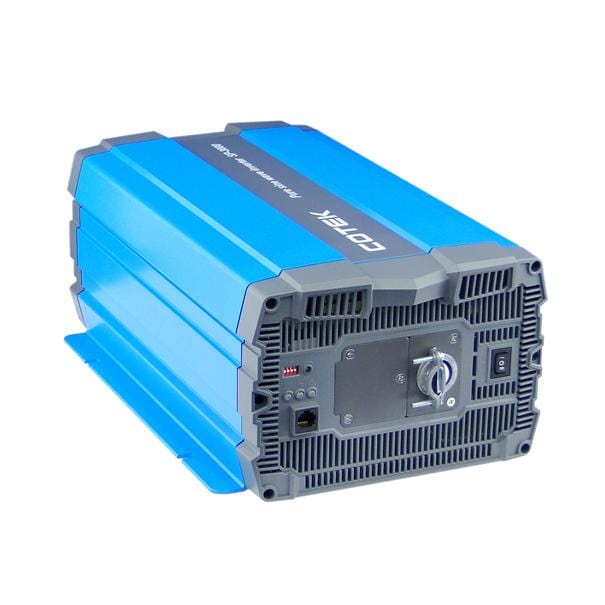

Cotek SP-3000-124 3000 Watt 24 Volt Pure Sine Inverter

Canadian PowerSKU: SP-3000-124

Sale price$929 Regular price$1,099 Save $170
10 In stock Free Shipping


The Cotek SP-3000-124 is a 3000 watt, 110 volt AC, 24 volt DC, pure sine inverter.


  • Pure sine wave output
  • Power ON / OFF remote control (Green Terminal)
  • Remote controller CR-8 / CR-16A (optional)
  • Input & Output fully isolation
  • Temperature & Load controlled cooling fan
  • Built in advance microprocessor to provide friendly interface
  • Output frequency 50 / 60 Hz selectable by DIP switch
  • Output voltage DIP switch selectable
  • Adjustable power saving mode by variable resister
  • 3-color LED status indicators
  • Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
  • Output protection: Short Circuit / Overload / Over Temperature
  • E13 / UL / CE / FCC approved


accessory (optional) Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40
ac regulation ┬▒5%
ac voltage 100 / 110 / 115 / 120VAC
brand Cotek
dc input reverse polarity By fuse
dc voltage 24VDC
dimensions 10.04"W x 6.22"H x 17.40"D
dry contact terminal By relay
efficiency (Max): 91%
emc standards Certified FCC class A
frequency 50/60 Hz -/+5%
input 21.0 ┬▒0.5VDC (Under - Voltage Protection)
input over - voltage recovery 29.0 ┬▒0.5VDC
input under - voltage recovery 25.0 ┬▒0.5VDC
input voltage 24 Volts
input voltage range 21 - 33 Volts DC
led indicator Input voltage level, output load level and faulty status
maximum power output (1 min): >3000VA-3450VA (100%-115%)
no load current Γëñ2.0A@24VDC
operating temperature -4 to 104 degrees F (-20 to 40 degrees C)
output overload Shutdown output voltage, restart to recover
output short Shutdown output voltage, restart to recover
output voltage 100/110/120/150 Volts AC
output waveform Pure Sine Wave (THD<5%@Normal Load)
over temperature Heat sink temperature over 80┬░C ┬▒5┬░C
power saving mode <0.2A@24VDC
rated power 3000 VA
regulation -/+5% AC
remote control terminal 6-port green terminal
safety standards Certified UL 458
storage temp. -30┬░C ~ +70┬░C
storage temp. & humidity 10 ~ 95% RH
surge power (1 sec) <6000VA
voltage range 21.0 ~ 33.0VDC
wattage 3000 Watts
waveform Pure Sine Wave
