Description

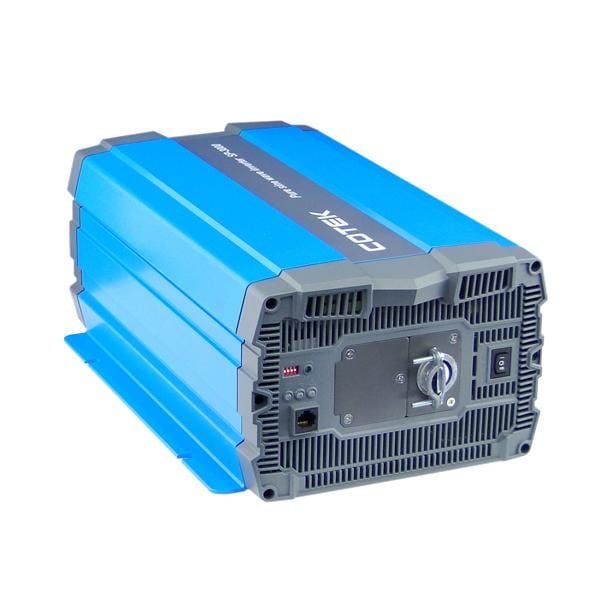

The Cotek SP-3000-112 is a 3000 watt, 110 volt AC, 12 volt DC, pure sine inverter.
Specifications
| accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
| ac regulation | ┬▒5% |
| ac voltage | 100 / 110 / 115 / 120VAC |
| brand | Cotek |
| dc input reverse polarity | By fuse |
| dc voltage | 12VDC |
| dimensions | 10.04"W x 6.22"H x 17.40"D |
| dry contact terminal | By relay |
| efficiency | (Max): 90% |
| emc standards | Certified FCC class A |
| frequency | 50/60 Hz -/+5% |
| input | 10.5 ┬▒0.3 VDC (Under - Voltage Protection) |
| input over - voltage recovery | 14.5 ┬▒0.3VDC |
| input under - voltage recovery | 12.5 ┬▒0.3VDC |
| input voltage | 12 Volts |
| input voltage range | 10.5 - 16.5 Volts DC |
| led indicator | Input voltage level, output load level and faulty status |
| maximum power output | (1 min): >3000VA-3450VA (100%-115%) |
| no load current | Γëñ3.8A@12VDC |
| operating temperature | -4 to 104 degrees F (-20 to 40 degrees C) |
| output overload | Shutdown output voltage, restart to recover |
| output short | Shutdown output voltage, restart to recover |
| output voltage | 100/110/150/120 Volts AC |
| output waveform | Pure Sine Wave (THD<5%@Normal Load) |
| over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
| power saving mode | <0.4A@12VDC |
| rated power | 3000 VA |
| regulation | -/+3% AC |
| remote control terminal | 6-port green terminal |
| safety standards | Certified UL 458 |
| storage temp. | -30┬░C ~ +70┬░C |
| storage temp. & humidity | 10 ~ 95% RH |
| surge power (1 sec) | <6000VA |
| voltage range | 10.5 ~ 16.5VDC |
| wattage | 3000 Watts |
| waveform | Pure Sine Wave |
