Description

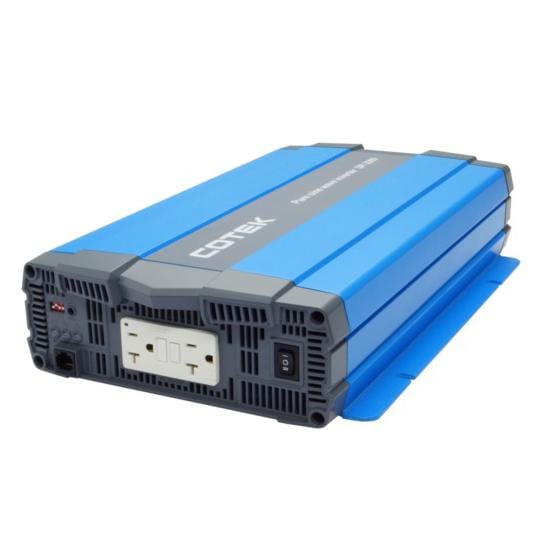

The Cotek SP-2000-248 is a pure sine wave inverter with a casing constructed of lightweight, durable aluminum.
Specifications
| accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
| ac output voltage | 200 to 240 Selectable |
| ac regulation | ┬▒3% |
| ac voltage | 200 / 220 / 230 / 240VAC |
| dc input reverse polarity | By fuse |
| dc input voltage rating | 48 Volts |
| dc voltage | 48VDC |
| dry contact terminal | By relay |
| e-mark | Certified CISPR 25 ISO 7637-2 |
| efficiency | 0.95 |
| emc standards | Certified EN 55022 class A NOTE4 ; EN 55024 EN 61000-3-2, -3-3 EN 61000-4-2, 3, 4, 5, 6, 8, 11 |
| frequency | 50/60 Hz ┬▒ 0.5% Selectable |
| input | 42.0 ┬▒1.0VDC (Under - Voltage Protection) |
| input over - voltage recovery | 58.0 ┬▒1.0VDC |
| input under - voltage recovery | 50.0 ┬▒1.0VDC |
| input voltage range | 42 to 66 VDC |
| led indicator | Input voltage level, output load level and faulty status |
| maximum power output | >2000VA~2300VA (100%~115%) |
| no load current | Γëñ0.5A@48VDC |
| operating temperature | -20C to 40C |
| output overload | Shutdown output voltage, restart to recover |
| output short | Shutdown output voltage, restart to recover |
| output waveform | THD <3% |
| over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
| power saving mode | <0.05A@48VDC |
| rated power | 2000 Watts |
| remote control terminal | 6-port green terminal |
| safety standards | Certified EN 60950-1 |
| storage temp. | -30┬░C ~ +70┬░C |
| storage temp. & humidity | 10 ~ 95% RH |
| storage temperature | -30C ro 70C |
| surge power | <3500 Watts |
| surge power (max.3 sec) | <3500VA |
| voltage range | 42.0 ~ 66.0VDC |
