Description

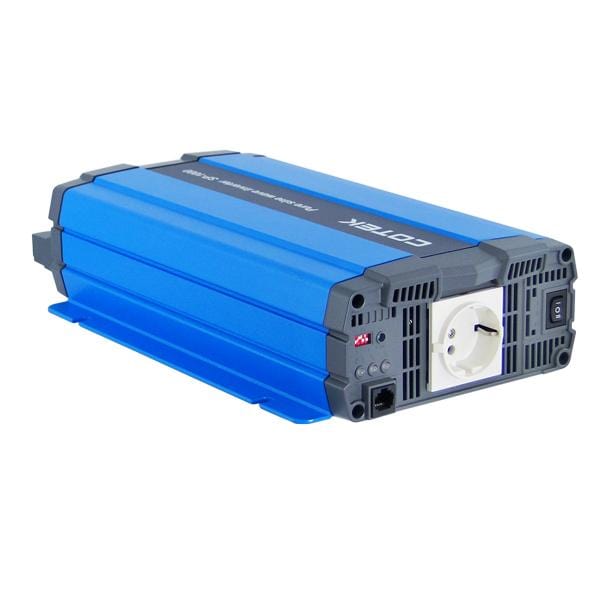

The Cotek SP-1000-212 is a 1000 watt, 220 volt AC, 12 volt, pure sine inverter.
Specifications
accessory (optional) | Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40 |
ac regulation | ┬▒3% |
ac voltage | 200 / 220 / 230 / 240VAC |
brand | Cotek |
dc input reverse polarity | By fuse |
dc voltage | 12VDC |
dimensions | 7.87"W x 3.27"H x 12.99"D |
dry contact terminal | By relay |
e-mark | Certified CISPR 25 ISO 7637-2 |
efficiency | (Max): 91% |
emc standards | Certified EN 55022 class B; EN 55024 EN 61000-3-2, -3-3 EN 61000-4-2, 3, 4, 5, 6, 8, 11 |
frequency | 50/60 Hz -/+5% |
input | 10.5 ┬▒0.3VDC (Under - Voltage Protection) |
input over - voltage recovery | 14.5 ┬▒0.3VDC |
input under - voltage recovery | 12.5 ┬▒0.3VDC |
input voltage | 12 Volts |
input voltage range | 10.5 - 16.5 Volts DC |
led indicator | Input voltage level, output load level and faulty status |
maximum power output | (1 min): >1000VA-1150VA (100%-115%) |
no load current | Γëñ1.5A@12VDC |
operating temperature | -4 to 104 degrees F (-20 to 40 degrees C) |
output overload | Shutdown output voltage, restart to recover |
output short | Shutdown output voltage, restart to recover |
output voltage | 240 Volts |
output waveform | Pure Sine Wave (THD<3%@Normal Load) |
over temperature | Heat sink temperature over 80┬░C ┬▒5┬░C |
power saving mode | <0.1A@12VDC |
rated power | 1000 VA |
regulation | -/+3% AC |
remote control terminal | 6-port green terminal |
safety standards | Certified EN 60950-1 |
storage temp. | -30┬░C ~ +70┬░C |
storage temp. & humidity | 10 ~ 95% RH |
surge power (max.3 sec) | <1750VA |
voltage range | 10.5 ~ 16.5VDC 2 |
wattage | 1000 Watts |
waveform | Pure Sine Wave |
weight | 7.2 lbs |
