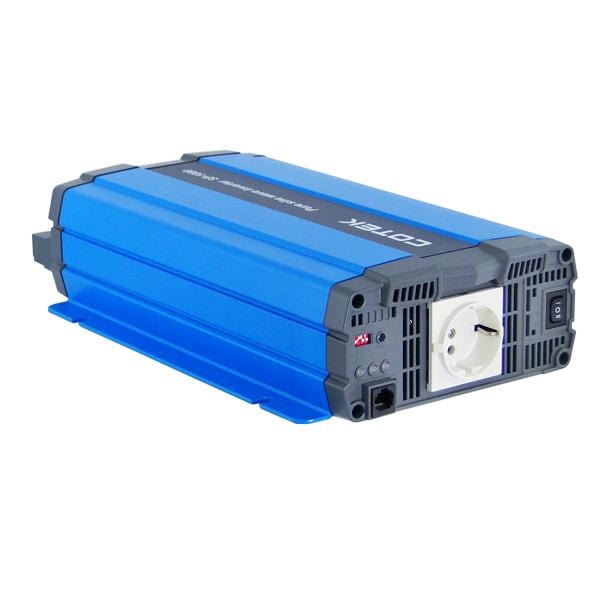

Cotek SP-1000-124 1000 Watt 24 Volt Pure Sine Inverter

Save $635.71
Canadian PowerSKU: SP-1000-124

Sale price$359.00 Regular price$994.71
In stock (5 units)
Free Shipping* (Some exclusions apply)


The Cotek SP-1000-124 is a 1000 watt, 110 volt AC, 24 volt DC, pure sine inverter.


accessory (optional) Remote Control: CR-8 / CR-16A; Transfer Switch: TR-40
ac regulation ┬▒5%
ac voltage 100 / 110 / 115 / 120VAC
brand Cotek
dc input reverse polarity By fuse
dc voltage 24VDC
dimensions 7.87"W x 3.27"H x 14.65"D
dry contact terminal By relay
efficiency (Max): 93%
emc standards Certified FCC class B
frequency 50/60 Hz -/+5%
input 21.0 ┬▒0.5VDC (Under - Voltage Protection)
input over - voltage recovery 29.0 ┬▒0.5VDC
input under - voltage recovery 25.0 ┬▒0.5VDC
input voltage 24 Volts
input voltage range 21 - 33 Volts DC
led indicator Input voltage level, output load level and faulty status
maximum power output (1 min): >1000VA-1150VA (100%-115%)
no load current Γëñ0.8A@24VDC
operating temperature -4 to 104 degrees F (-20 to 40 degrees C)
output overload Shutdown output voltage, restart to recover
output short Shutdown output voltage, restart to recover
output voltage 240 Volts
output waveform Pure Sine Wave (THD<5%@Normal Load)
over temperature Heat sink temperature over 80┬░C ┬▒5┬░C
power saving mode <0.06A@24VDC
rated power 1000 VA
regulation -/+3% AC
remote control terminal 6-port green terminal
safety standards Certified UL 458
storage temp. -30┬░C ~ +70┬░C
storage temp. & humidity 10 ~ 95% RH
surge power (max.3 sec) <1750VA
voltage range 21.0 ~ 33.0VDC
wattage 1000 Watts
waveform Pure Sine Wave
weight 7.2 lbs
