Description

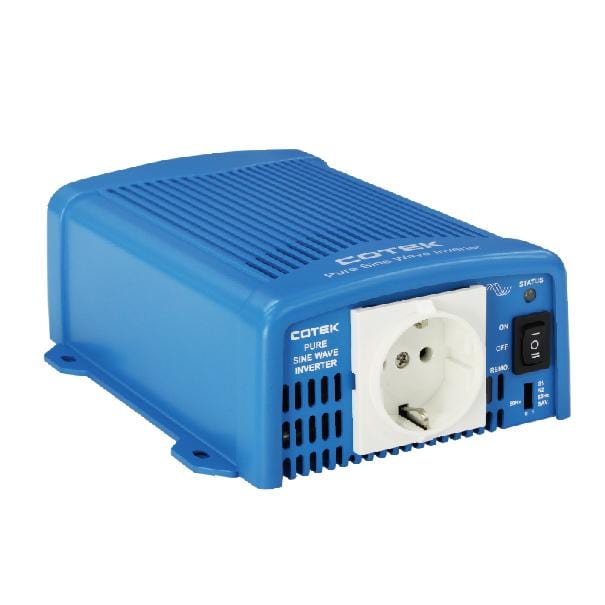

SE400-212 Pure Sine Wave Inverter 400W, 12VDC, 230VAC
By Cotek
*Not available for local pick-up
Features:
- Pure sine wave output (THD < 5% @ , linear load @ 12.5V / 25V / 50V)
- Power ON / OFF remote control (Green Terminal)
- Input & output fully isolation
- Output frequency 50/60Hz selectable by DIP switch
- Output voltage / power saving mode selectable
- Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
- Output protection: Short Circuit / Overload / Over Temperature
- Power saving mode < 2W
- FCC / CE approved
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
ac output voltage | 100/110/115/120 VAC; 200/220/230/240VAC |
dc input | 12V |
dc input voltage range | 21~32VDC |
dimensions | 8 x 6 x 3 in. |
efficiency | 0.89 |
frequency | 50/60 Hz ┬▒ 0.5% |
operating temperature | -20~60Γäâ |
output waveform | Pure Sine Wave (THD<5%@Normal Load) |
rated power | 400W (VA) |
safety | FCC / UL |
socket type | GFCI / NEMA 5-15R |
storage temperature | -30~70Γäâ |
surge power | <800W (VA) (1 Sec.) |
weight | 4 lbs |
