Description

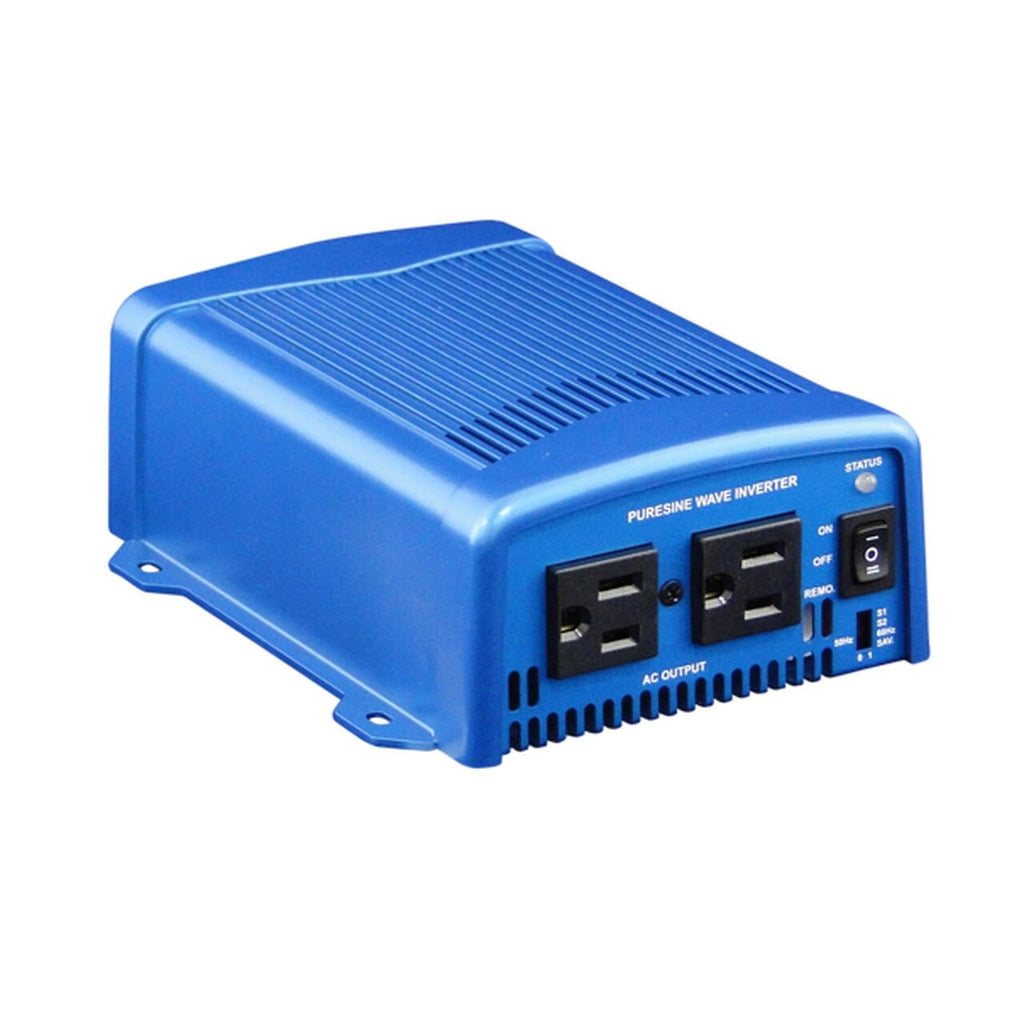

SE200-212 Pure Sine Wave Inverter 200W, 12VDC, 230VAC
By Cotek
*Not available for local pick-up
Features:
- Pure sine wave output
- Power ON / OFF remote control (Green Terminal)
- Wide input range:10~16VDC (112 / 212), 20~32VDC (124 / 224)
- Wide operating temperature:-20℃~60℃
- Input & output fully isolation
- Output frequency 50/60Hz selectable by DIP switch
- Output voltage / power saving mode selectable
- Input protection: Reverse Polarity (Fuse) / Under Voltage / Over Voltage
- Output protection: Short Circuit / Overload / Over Temperature
- CE / FCC / E13 approved
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
ac output voltage | 100/110/115/120 VAC; 200/220/230/240 VAC |
dc input | 12V |
dc input voltage range | 10~16VDC |
dimensions | 8 x 6 x 3 In. |
efficiency | 0.91 |
frequency | 50/60 Hz ┬▒ 0.5% |
operating temperature | -20 ~ +60┬░C |
output waveform | Pure Sine Wave (THD) |
rated power | 200W (VA) |
safety | CE / FCC / E13 |
socket type | GFCI / NEMA 5-15R / GE / AU / UK / Universal |
storage temp. | -30~70Γäâ |
surge power | 250W (VA) (3 Sec.) |
weight | 4 lbs |
