Description

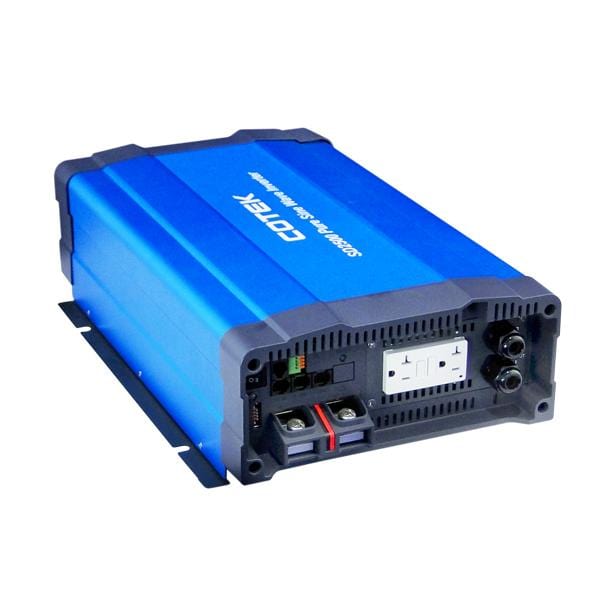

The Cotek SD2500-112 is the perfect inverter for all your needs! With a wide input DC voltage range it can be used for all major user applications, and accommodate extreme conditions like high voltage alternators or high altitude. This product comes with a 5 year manufacturer's warranty.
With a power saving mode and selectable output AC voltage the SD2500-112 is versatile, safe, reliable, and comes with a built in user-friendly interface. This inverter will last, and has full protection on the battery, input, and output, ensuring that you will be able to use the SD2500-112 for years to come.
Features:
- Dual GFCI outlets and terminal block for hardwiring
- On Mode @ Save Mode: 0.9 Amps
- On Mode @ No Load Mode: < 2.9 Amps
- Fuse: 40 Amps x 9
- AC Range: 100/110/115/120 Volts AC +-12.5%
- Frequency Selectable: 50/60 Hz
- Synchronous Frequency: 47-57 / 53-63
- Circuit Breaker: 35 Amps
- Transfer Switch: Optional STS Mode: < 4ms | Standard ATS: Inverter to utility AC: 8~10ms
- Cooling: Load and thermal control fan.
- Safety Standards: Certified UL 458
- EMC Standards: Certified FCC Class B
- LED Indicator: Input voltage level, output load, and faulty status
- Remote Control: CR-6, CR-8, and CR-10
- Dimensions (WxHxD): 11.4" x 5.1" x 17.2" (283mm x 128.4mm x 436mm)
- Weight: 17.6 lbs (8 kgs)
- Parallel redundancy design for power expansion
- Multiple industrial applications that create power systems
- Automatic master mechanism to eliminate single point
- Failure and optimize reliability
- Built-in ATS and AC circuit breaker
- Optional STS Module, transfer time less than 4ms
- RS-232 communication
- Input and Output fully isolation
- Output voltage and power saving mode selectable
- BAT.Low Alarm +-3%: 10.5 Volts DC
- BAT.Low Shut-down +-3%: 10 Volts DC
- BAT.Low Restart +-3%: 12.5 Volts DC
- BAT.High Alarm +-3%: 15.5 Volts DC
- BAT.High Shut-down +-3%: 16 Volts DC
- BAT.High Restart +-3%: 15 Volts DC
- Input protection: Reverse Polarity (Fuse) / Under voltage/Over
- Output protection: Short Circuit/Overload/Over Temperature/Over Voltage
- Safety Standards Certified: UL, FCC, CE, E13
- UPC Code: 810308000516
Specifications
| brand | Cotek |
| dc volts | 12 Volts DC |
| efficiency | 0.88 |
| features | Built-In Transfer Switch |
| input voltage | 12 Volts |
| no load power consumption | At 12 Volts DC |
| operating temperature | -4 degrees to 140 degrees F (-20 degrees to 60 degrees C) |
| output frequency | 50/60 Hz |
| output voltage | (At rated Volts DC): 100/110/115/120 Volts AC +-3% Selectable |
| power | (For 3 Seconds): 3000 Watts (Peak) |
| rated power | 2500 Watts |
| storage temperature | -40 degrees to 158 degrees F (-40 degrees to 70 degrees C) |
| surge power | (For < .2 Seconds): 4000 Watts |
| total harmonic distortion | < 3% (At rated / Volts DC, linear load) |
| voltage range | 10~16 Volts DC |
| wattage | 2500 Watts |
| waveform | Pure Sine Wave |
