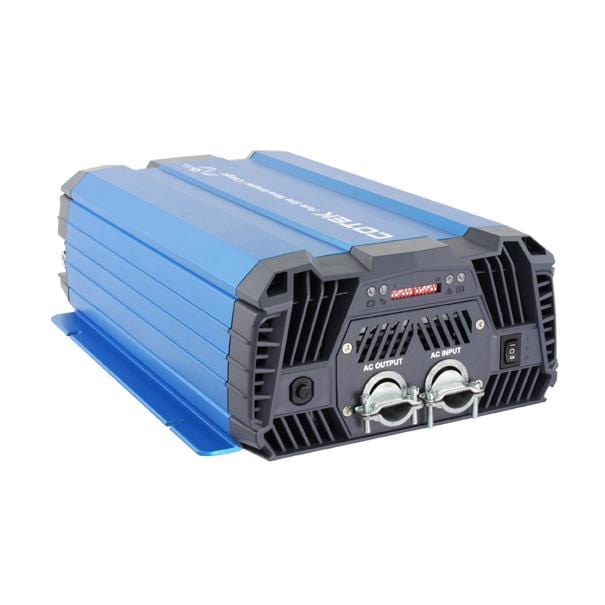

Cotek SC2000-224 2000W 24V Pure Sine Wave Inverter/Charger.
The Cotek SC2000-224 2000W 24V Pure Sine Wave Inverter/Charger is a Bi-directional inverter and charger that uses a 3-stage charging function. The unit uses automatically various operation modes: 1. Inverter mode 2. Charger mode 3. Power Sharing 4. Power Generation 5. Power Support. The unit has a wide working temperature range of -20oC ~ 40oC and high-power density (1200W @4.55kg, 2000W @ 6 kg).
- Bi-directional inverter and charger
- Automatically various operation mode: Inverter mode, Charger mode, Power Sharing, Power Generation, Power Support
- 3 stage charging function
- Wide working temperature range ΓöÇ-20oC ~ 40oC
- UL & CE Certified. Such as UL458 with marine supplement, UL1741, FCC approved
- -20oC~40oC full load operation without derating
- High Power density (1200W @4.55kg, 2000W @ 7.5 kg)
- Remote controller CR-20C / CR-16B / CR-8 (Optional)
- Charging Compensation via The Temperature Sensor (optional)
|ac output voltage||100/110/115/120VAC ┬▒ 3%; 200/220/230/240VAC ┬▒ 3%|
|dc input / operating voltage||24V|
|dc input voltage range||10.5 ~ 16.5 VDC; 21 ~ 33 VDC|
|dimensions||251 x 116 x 453mm|
|frequency||50/60 Hz ┬▒ 0.3 Hz (User-selectable)|
|operating temperature||-20 ~ 40C|
|output waveform||Pure Sine Wave|
|safety||UL458 & Supplement SA , FCC class A|
|storage temperature||-30C ~ 70C|
|surge power||Load 101%~115% (1 Min) ; 4000 VA (2 Sec)|
