Description

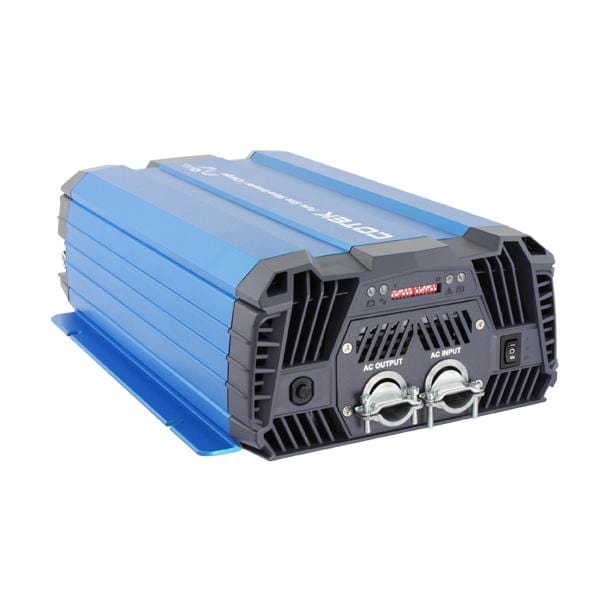

Cotek SC1200-124 1200W Inverter/Charger. S
The Cotek SC1200-124 1200W Inverter/Charger is a Bi-directional inverter and charger that uses a 3-stage charging function. The unit uses automatically various operation modes: 1. Inverter mode 2. Charger mode 3. Power Sharing 4. Power Generation 5. Power Support. The unit has a wide working temperature range of -20oC ~ 40oC and high-power density (1200W @4.55kg, 2000W @ 6 kg).
2 Year Manufacturer’s Warranty
Features:
- 1,200 watts continuous power output
- 2,400 watts surge capability
- 24 volt DC input
- Bi-directional all-in-one design
- Pure sine wave output for sensitive electronics and inductive loads
- Multistage 25A PFC and PI battery charger
- Compatible with AGM, Gel, Flooded, and LiFePO4 batteries
- Battery equalization function
- Temperature compensated charging
- Built-in 30 Amp transfer relay
- AC hardwire input and output
- DC output terminal (20A)
- LED status indicators
- Power generator function
- Power support function
- Power save mode
- Temperature and load controlled cooling fan
- UL458 & Supplement SA / CSA C22.2 No. 107.1-01
- UL1741 / CSA C22.2 No. 107.1-01 / KKK-A-1822F (For Ambulance)
Protection Features:
- Low-voltage alarm (22.0 VDC)
- Low-voltage shutdown (21.0 VDC)
- Over-voltage alarm (31.0 VDC)
- Over-voltage shutdown (33.0 VDC)
- Over-current protection
- Overload shutdown
- Short-circuit protection
- Reverse polarity protection (internal fuse)
Specifications
ac output voltage | 100/110/115/120VAC ┬▒ 3% ; 200/220/230/240VAC ┬▒ 3% |
dc input / operating voltage | 24V |
dc input voltage range | 10.5 ~ 16.5 VDC; 21 ~ 33 VDC |
dimensions | 251 x 116 x 386mm |
efficiency | >88% |
frequency | 50/60 Hz ┬▒ 0.3 Hz (User-selectable) |
operating temperature | -20Γäâ ~ 40Γäâ |
output waveform | Pure Sine Wave |
rated power | 1200W |
safety | UL458 & Supplement SA , FCC class A |
storage temperature | -30 Γäâ~70 Γäâ |
surge power | Load 101%~115% (1 Min) ; 2400 VA (2 Sec) |
weight | 4.55Kg |
