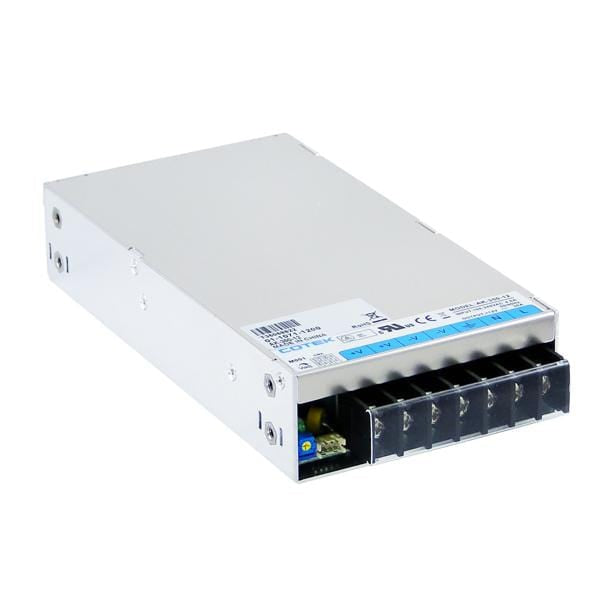

Cotek AK-350-12 360 Watt 30 Amp Switch Mode Single Output Power Supply

          Be the first to write a review
You Pay $117.64
$190.99 Save 38%
Free Shipping
1 In Stock!

Would you like to calculate shipping for this item?

The Cotek AK-350-12 is a 360 watt 30 amp 12 volt single output switch mode power supply with a loading and temperature controlled cooling fan. It is designed to install in compact spaces. See below for more information.

Features of the AK-350-12 include a universal input voltage range of 90v to 264v, high reliability and low ripple noise, compliance to EPA energy star requirements and a 3 year warranty. It also features a 150% peak load capability, a +5v / 0.3a auxiliary output and a built in active pfc function. It comes equipped with long life electrolytic capacitors and will operate in high temperatures up to 70 degrees c. This unit is CE approved in Europe and has a component approval from UL.

  • Switch mode single output power supply
  • Low ripple noise
  • High efficiency
  • Load and temperature controlled cooling fan
  • Protections: output short circuit, over voltage, overload, over temperature and fan failure
  • Long life electrolytic capacitors
  • High operation temperature up to 70 degrees C
  • Power on with LED indicator
  • Universal AC input with active PFC
  • Withstand 5g vibration test
  • 150% peak load capability
  • 1u profile, high power density
  • Built-in constant current limiting circuit
  • Power ok signal (power good, logic low)
  • Remote on-off, remote sense function
  • Remote on / off control : external switch or NPN transistor to turn on / off safety standards: certified UL 60950-1, en 60950-1
  • 3 year warranty
  • CE approved in Europe and has a component approval from UL.



  • Auxiliary Output : +5v / 3a
  • Output Voltage Range : 12v DC
  • Rated current : 30a
  • Current range : 0-30a
  • Rated power : 360w
  • Max ripple and noise : <1%
  • Voltage adjustment range : +/-10%
  • Voltage tolerance : +/- 1%
  • Line regulation : +/- 0.5%
  • Load regulation : +/- 0.5%
  • Input voltage range : 90v ~ 264vac
  • Frequency : 47hz / 63hz
  • Efficiency : 90%
  • Input ac current : 4.0a / 115vac
  • Inrush Current : 27a
  • Dimensions : 4.1"W x 1.6"H x 7.8"D
  • Weight : 2.4 lbs - 1.1 kg
  • Brand : Cotek
  • Output Voltage : 12 Volts
  • Watts : 360 Watts
