Description

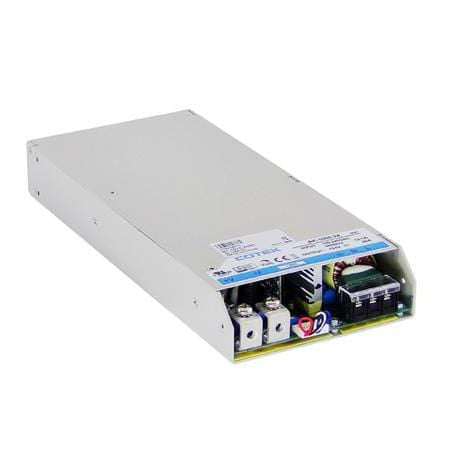

The Cotek AK-1000-12 is a 744 watt 62 amp 12 volt single output switch mode power supply with a loading and temperature controlled cooling fan.
It is designed to install in compact spaces. Features of the AK-1000-12 include a universal input voltage range of 90v to 264v, high reliability and low ripple noise, compliance to EPA energy star requirements and a 3 year warranty. It also features a +5v / 0.3a auxiliary output and a built in active PFC function. It comes equipped with long life electrolytic capacitors and will operate in high temperatures up to 60 degrees c. This unit is CE approved in Europe and has a component approval from UL.
- Switch mode single output power supply
- Low ripple noise
- High efficiency
- Load and temperature controlled cooling fan
- Protections: output short circuit, over voltage, overload, over temperature and fan failure
- Long life electrolytic capacitors
- High operation temperature up to 60 degrees c
- Power on with led indicator
- Universal ac input
- Forced current sharing at parallel operation
- Withstand 5g vibration test
- +5v / 3a auxillary output
- 1u profile, high power density 11.1w / in
- Built-in constant current limiting circuit
- Power ok signal (power good, logic low)
- Remote on-off, remote sense function
- Remote on / off control: external switch or npn transistor to turn on / off
- Programmable output voltage (30% ~ 105%)
- Programmable output current (40% ~ 105%)
- Remote on / off, remote sense function
- Safety standards: certified ul 60950-1, en 60950-1
- 3 year warranty
- CE approved in Europe and has a component approval from UL.
Specifications
brand | Cotek |
current range | 0-62a |
dimensions | 5"W x 1.6"H x 11.1"D |
efficiency | 0.87 |
frequency | 47hz / 63hz |
input ac current | 12a / 115vac |
input current | 27a |
input voltage range | 90v ~ 264vac |
line regulation | +/- 0.5% |
load regulation | +/- 0.5% |
max ripple and noise | 150mvp-p |
output voltage | 12 Volts |
output voltage range | 12v |
rated current | 62a |
rated power | 744w |
voltage adjustment range | +/-5% |
voltage tolerence | +/- 1% |
wattage | 744 Watts |
weight | 4.6 lbs - 2.1 kg |
