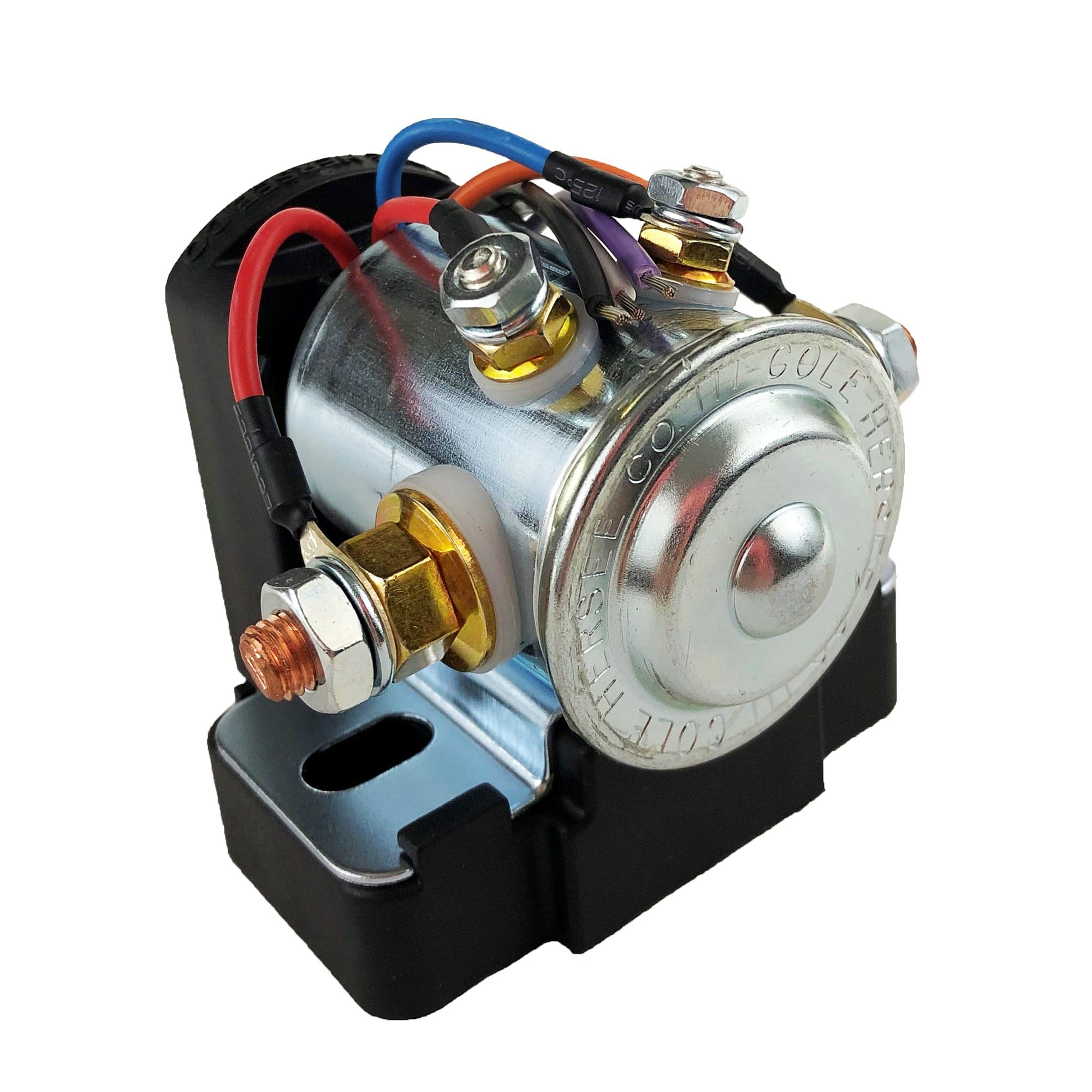

Cole Hersee 48530 Smart Battery Isolator 200A

LittelfuseSKU: 48530

Price:
Sale price$107.61 Regular price$245 Save $137.39
Stock:
0 Re-stocking soon Free Shipping

Description

The Cole Hersee 48530 is a 200A, Smart Battery Isolator. See below for additional details and learn about how a Cole Hersee 48530 Smart Battery Isolator 200A can help your RV's power supply in the details tab.

  • Prevents loads on auxiliary battery from draining the starting battery.
  • Allows bi-directional charging from the alternator or from shore power.
  • Reduces the load on the charging system by not connecting the auxiliary battery until the primary battery is charged to 13.2V
  • Extends the life of expensive charging components.
  • Ingress protected to IP65
  • LED status indicator.
  • Disconnect Voltage: 12.7V after one minute at this level.
  • Normal Input Voltage: 9V min, 16V max
  • Continuous current: 200A
  • Battery Terminal Torque: 50 in-lbs (5.78Nm).
  • EMI/RF: Per SAE J1455 & J1113.
  • Operating Temperature Range: -40 to 85 C.
  • Shock and Thermal Shock: per SAE J1455.
  • Ingress Protection: IP66 per IEC, (high pressure wash resistant)
  • Humidity: to 90% RH.
  • Vibration: 10-500Hz per SAE J1455.
  • Quiescent Current: 5mA typical, 8mA max.



Specifications

amps 200 Amps
