Description

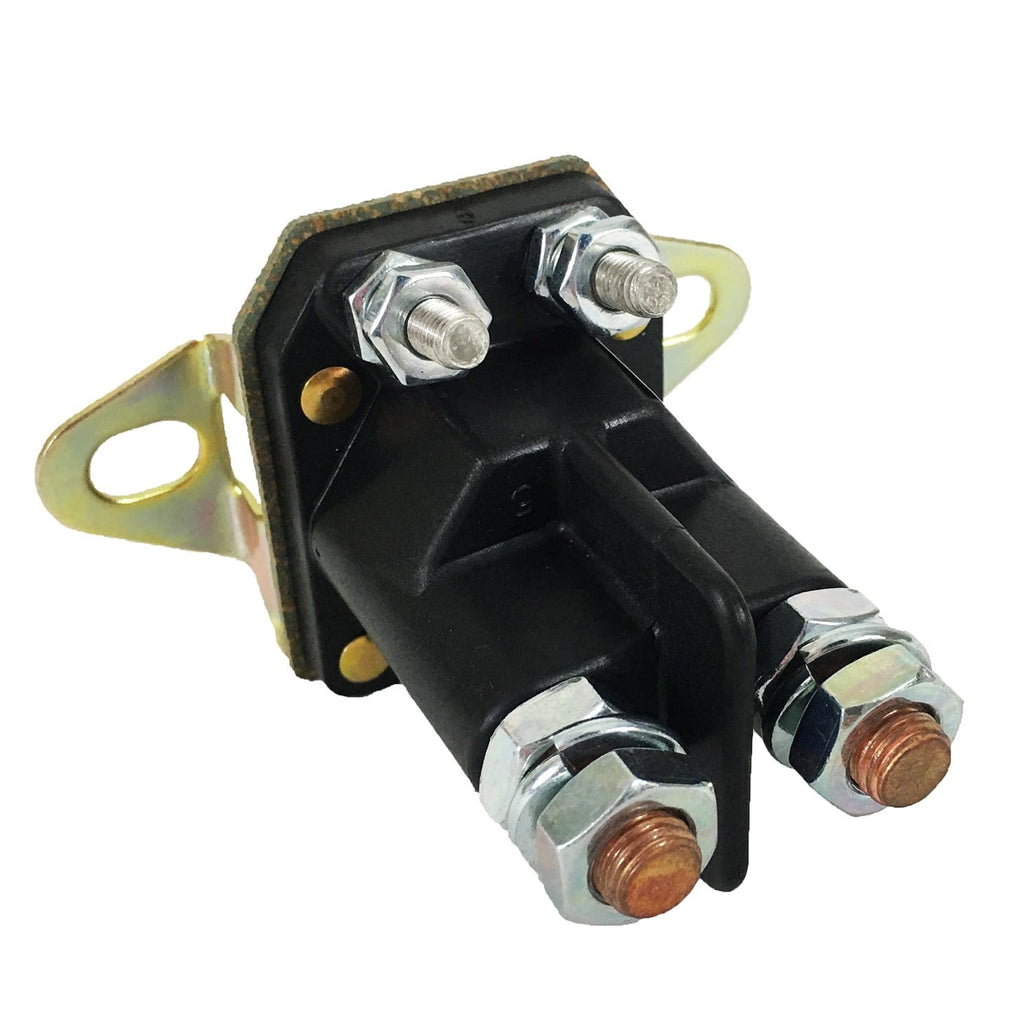

Insulated Continuous Duty SPST Solenoid 24V by Cole Hersee
Features
- Duty Cycle: Continuous Duty
- (2) 5/16-24 Threaded Battery and Motor Studs
- (2) 10-32 Threaded Studs for Excitation and Ground of Coil
- 100 A Carry/400 A Inrush Rating
- Flat Mounting Bracket with (2) 10mm x 7mm Mounting Slots-57.2mm Apart on Center
- Glass Filled Nylon Housing
- Bracket: F
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
| Circuitry | SPST |
| Coil Stud Material | Steel |
| Contact Stud Material | Copper |
| Contacts | Silver |
| Continuous Current | 100A |
| Housing | Plastic |
| Voltage Rating | 24V DC |
