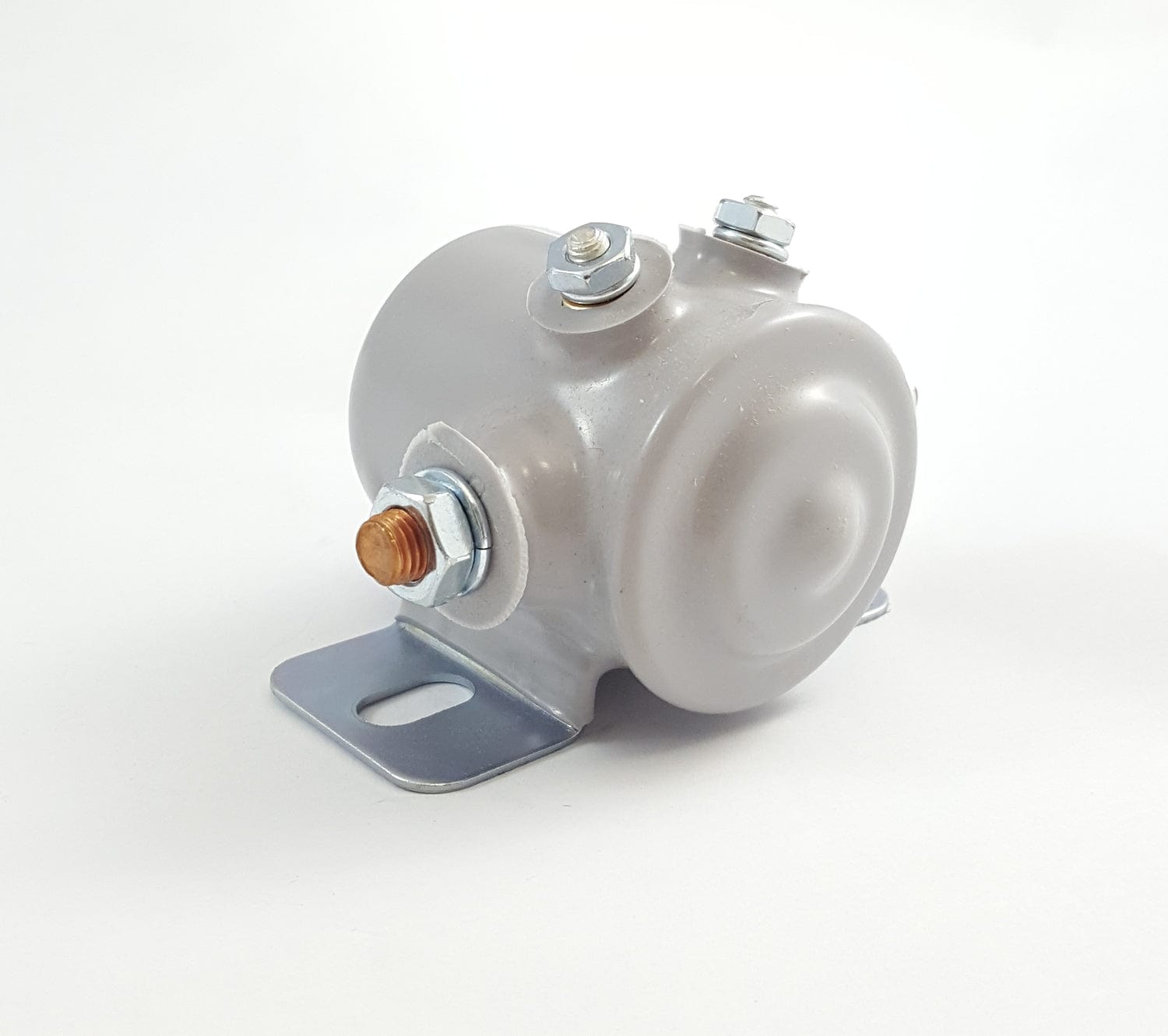

The Cole Hersee 24117 is a 12V, continuous duty SPST solenoid.
- Special applications: Universal
- Insulated/Grounded: Insulated
- NO/NC: Normally Open
- Housing: Plated Steel
- Continuous Rating: 85A
- Terminals: Copper; 10-32 thread and 5/16""-24 thread. Hex nuts and lock washers included
- Bracket mounting holes 5/16" x 19/32" 2 13/64" on center (7.9 x 15.1, 56.0mm)
- Ingress protection: IP66
|output voltage||12 Volts|
