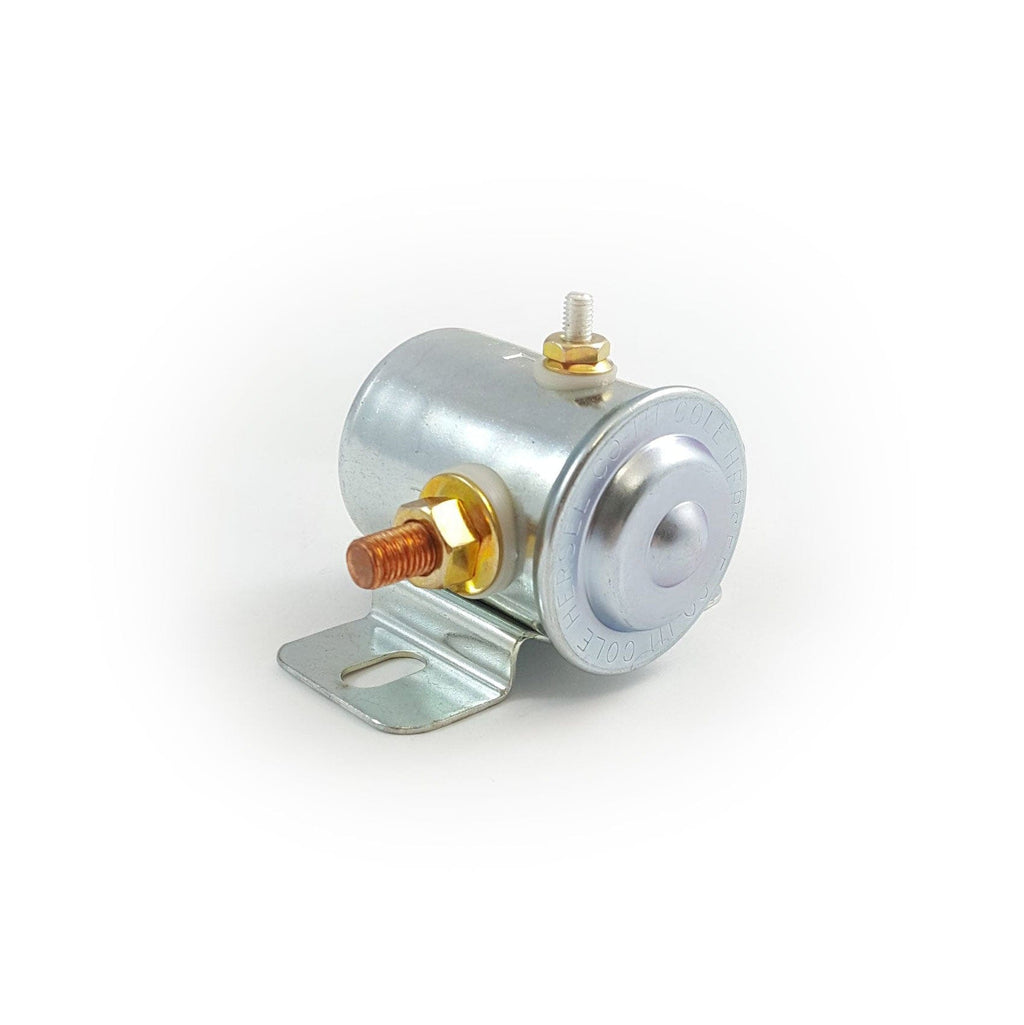

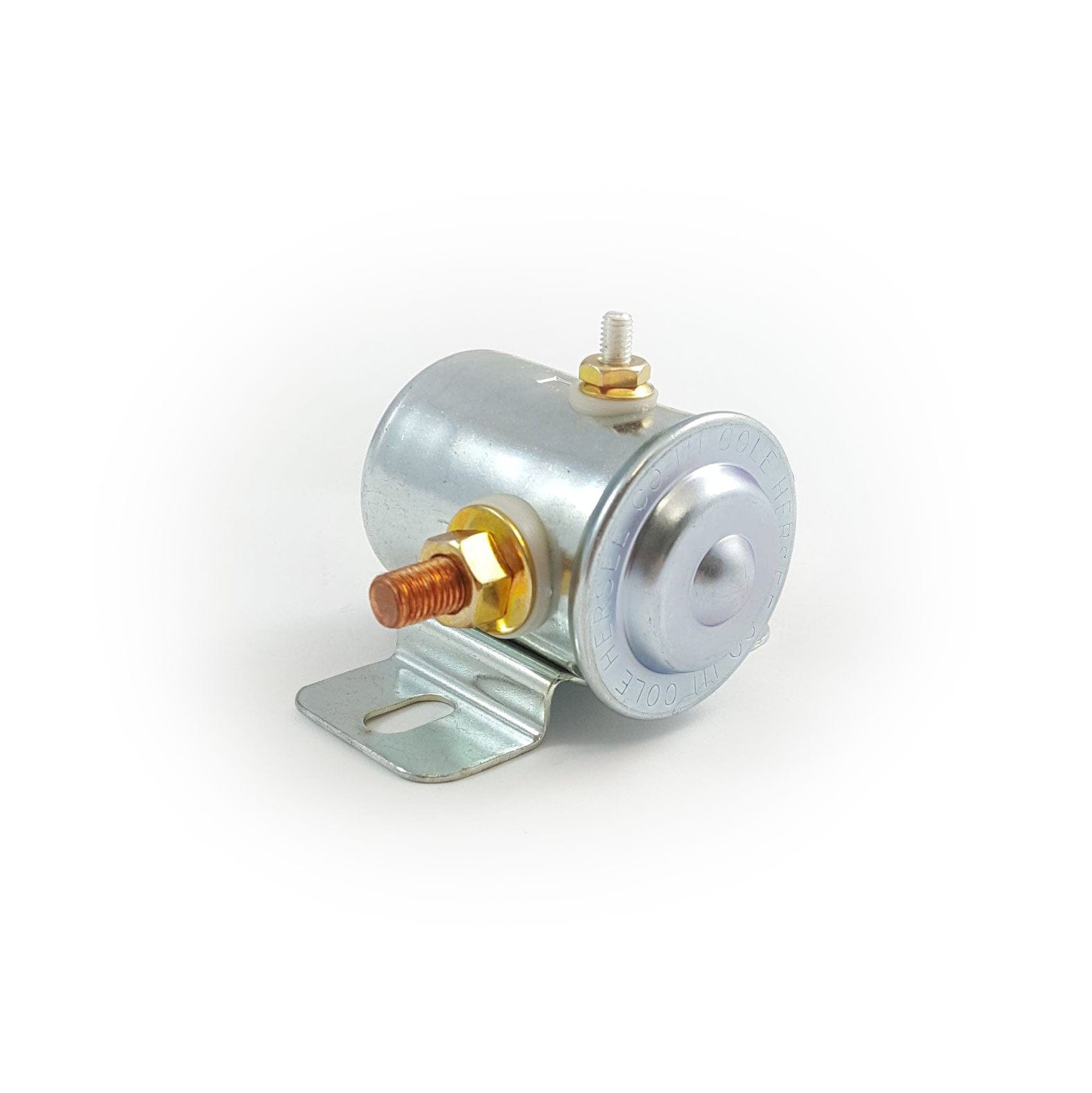

Cole Hersee 24115 12V Insulated Continuous Duty SPST Solenoid

Save $2.84
LittelfuseSKU: LIT-24115

Sale price$31.99 Regular price$34.83
In stock (30 units)
Free Shipping* (Some exclusions apply)


The Cole Hersee 24115 is a 12V insulated continuous duty SPST solenoid. Featuring plated steel housing, single-pole, single-throw (SPST) circuitry, and normally open contacts, this solenoid relay has a flat bracket design. With a 36V, 85A continuous-duty rating, it has a 12V coil with a coil impedance of 17.5 ohms and a 125A make/break rating.


  • 85 A continuous current rating
  • 125 A make/break rating
  • 12 V coil and a coil impedance of 17.5 ohms
  • Insulated, three-stud solenoid design
  • Flat bracket
  • Included hex nuts and lock washers are bagged
  • 90 day limited manufacturer's warranty


bracket Straight
circuitry SPST
Contact Material Silver
contacts Copper
Current Rating (Continuous) in Amps 85
features Grounded
Housing Plated Steel
maximum current (break) 85A
Normal Position Normally Open
output voltage 12 Volts
type Continuous Duty
Voltage 12 Volt
