Description

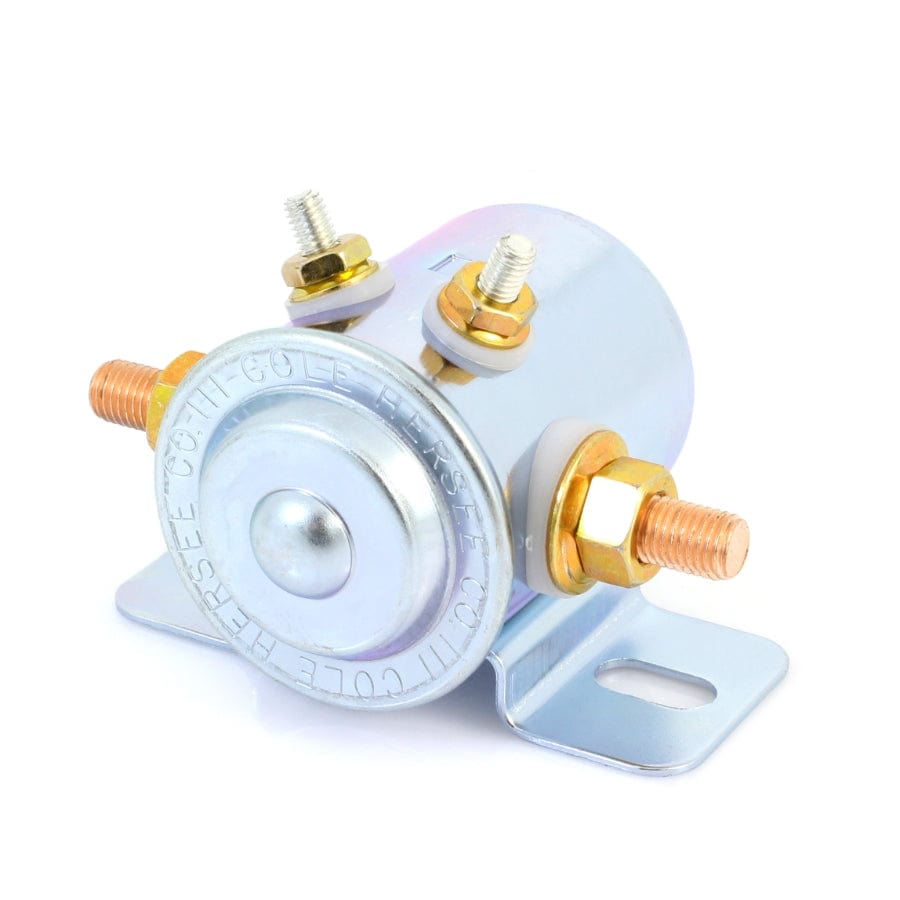

The Cole Hersee 24059 is a 12V Insulated Continuous Duty SPST Solenoid.
Features:
- Normally Open
- Hex nuts and lock washers included
- Bracket mounting holes 5/16" x 19/32", 2-13/64" on centers
- Insulated solenoids have studs that are electrically isolated from the housing #10-32 thread and 5/16" -24 thread copper terminals
Specifications
| bracket | Straight |
| circuitry | SPST |
| contacts | Copper |
| features | Insulated |
| intermittent time | N/A Continuous |
| output voltage | 12 Volts |
| type | Continuous Duty |
