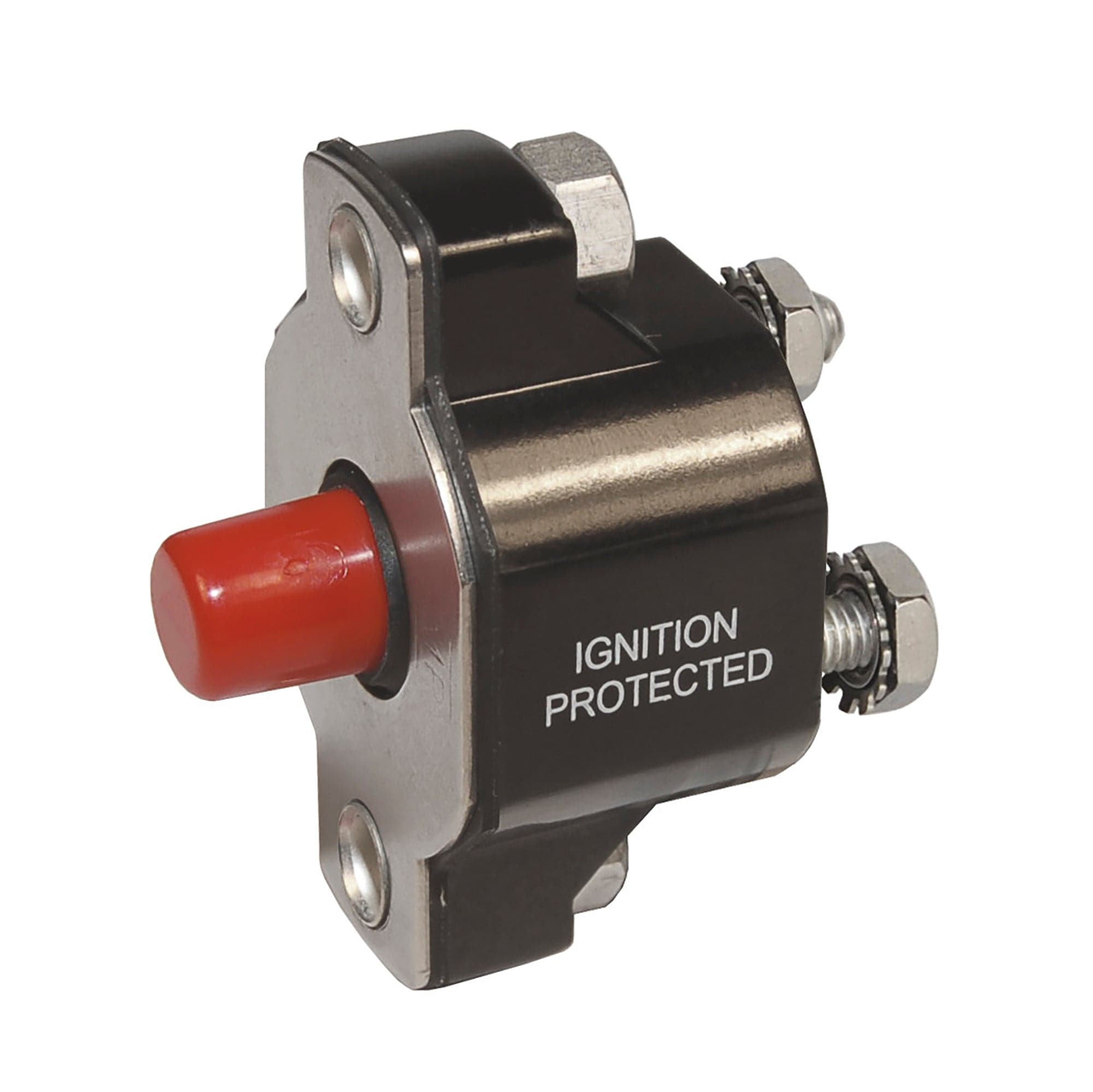

Circuit Breaker Push Button MD 40A 2141-BSS Blue Sea Systems Power Products

Save $6.66
Blue Sea SystemsSKU: 2141-BSS

Price:
Sale price$36.73 Regular price$43.39
Stock:
Sold out
Free Shipping* (Some exclusions apply)

Description

Introducing the 40-Amp Medium Duty Push Button Reset Only Circuit Breaker

  • Weatherproof
  • Can be used as Main, Branch, or 24 hour circuit protection
  • Compact design enables high density circuit protection configurations
  • Push-to-reset operation
  • “Trip Free” design cannot be held “ON” during fault current condition
  • Ignition protected - Safe for installation aboard gasoline powered boats
  • Captive star lock washers meet requirements for anti-rotation and eliminate
  • handling of small, easily dropped parts


California Prop 65 - WARNING: Cancer and Reproductive Harm - https://www.p65warnings.ca.gov/

Specifications

Amperage 40A
Circuit Breaker Type Thermal trip, manual push-button reset only
Interrupt Capacity 3000A @ 120V AC / 5000A @ 32V DC
Maximum Operating Temperature 74° C
Maximum Voltage 120V AC / 32V DC
Minimum Operating Temperature -54° C
Mounting Screw Thread #8-32
Terminal Stud #10-32 Stainless Steel
Terminal Stud Torque 30 in-lb (3.39 Nm)
Weight 0.16lb (0.07 kg)
