Description

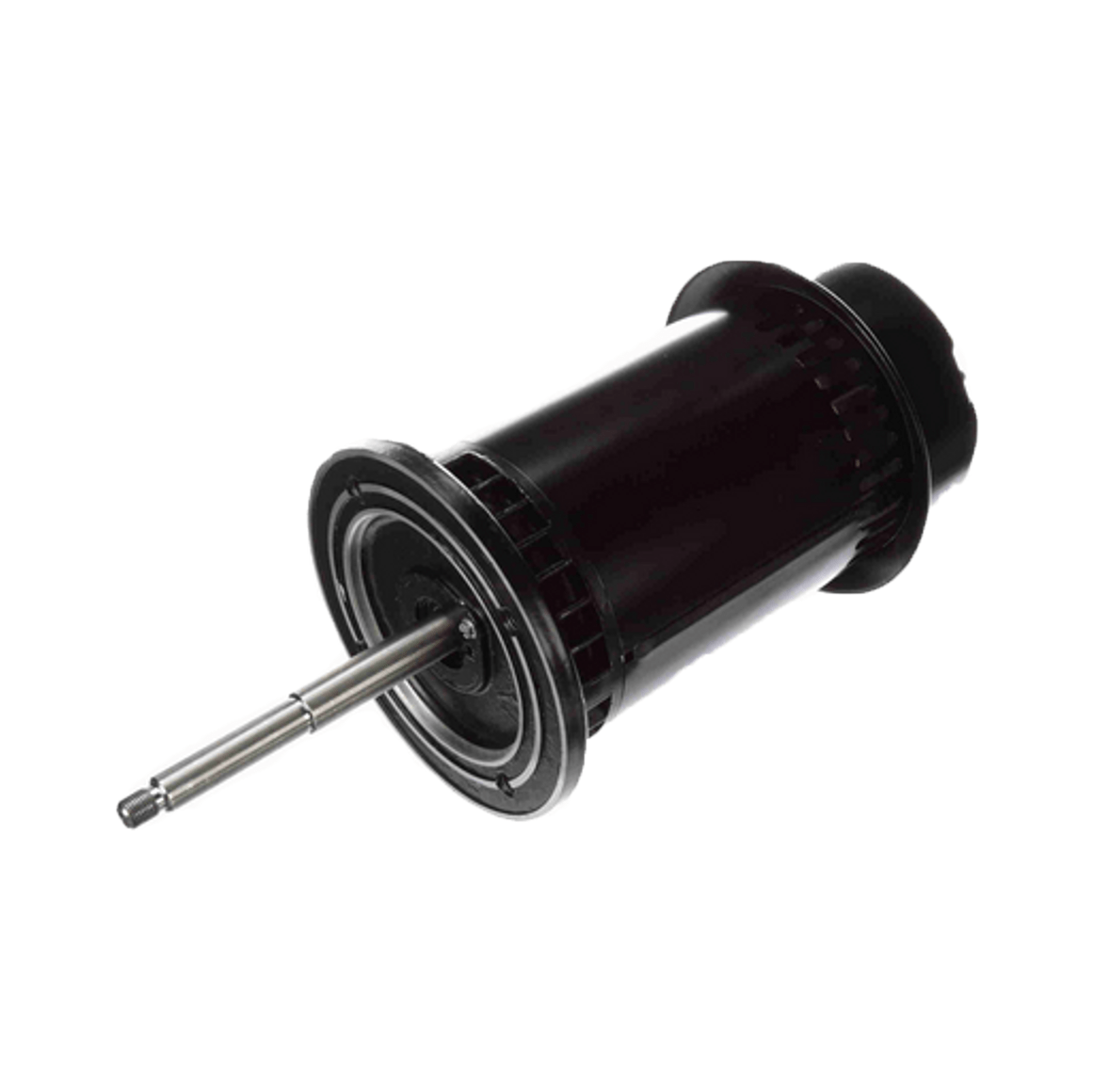

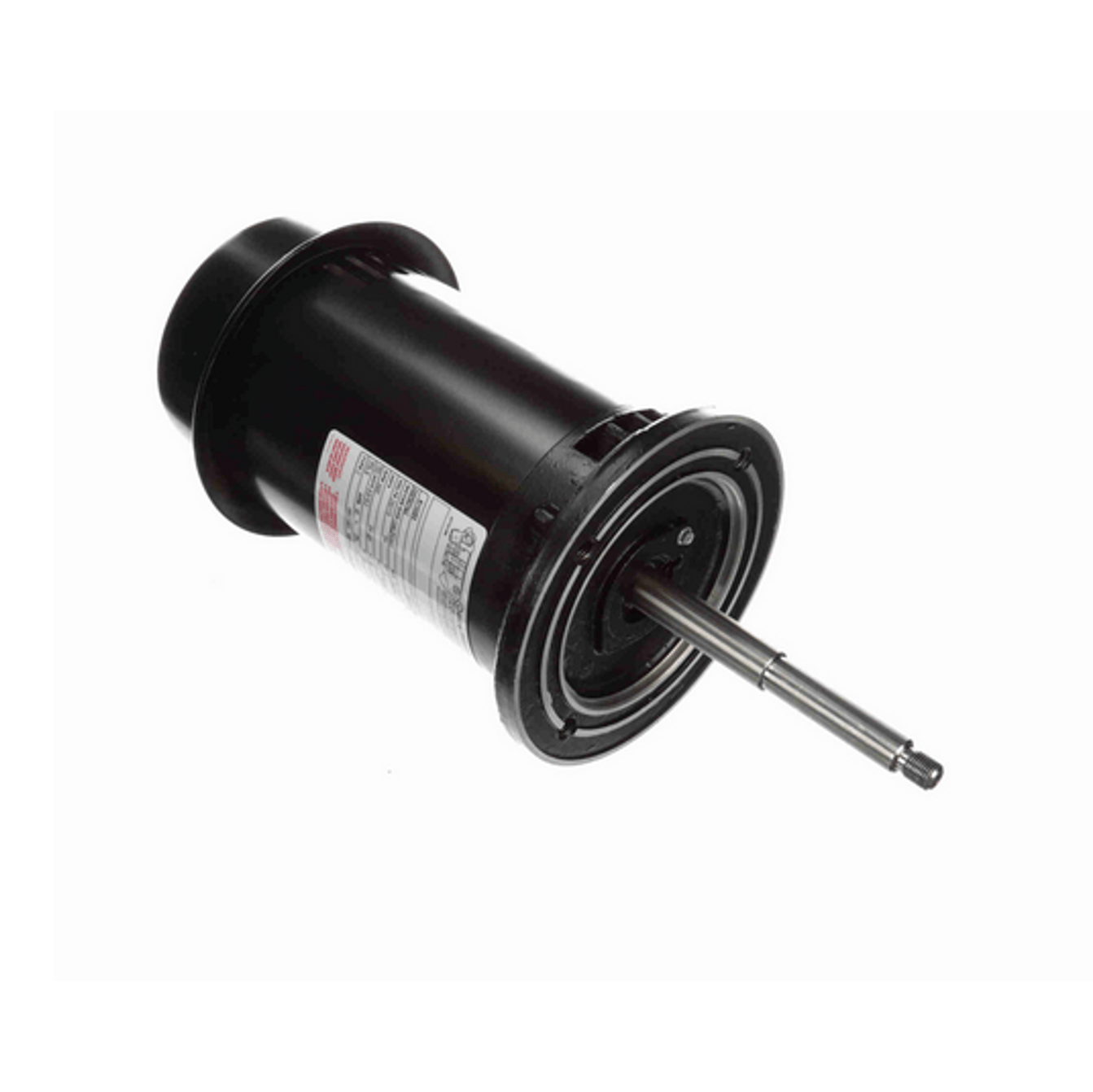

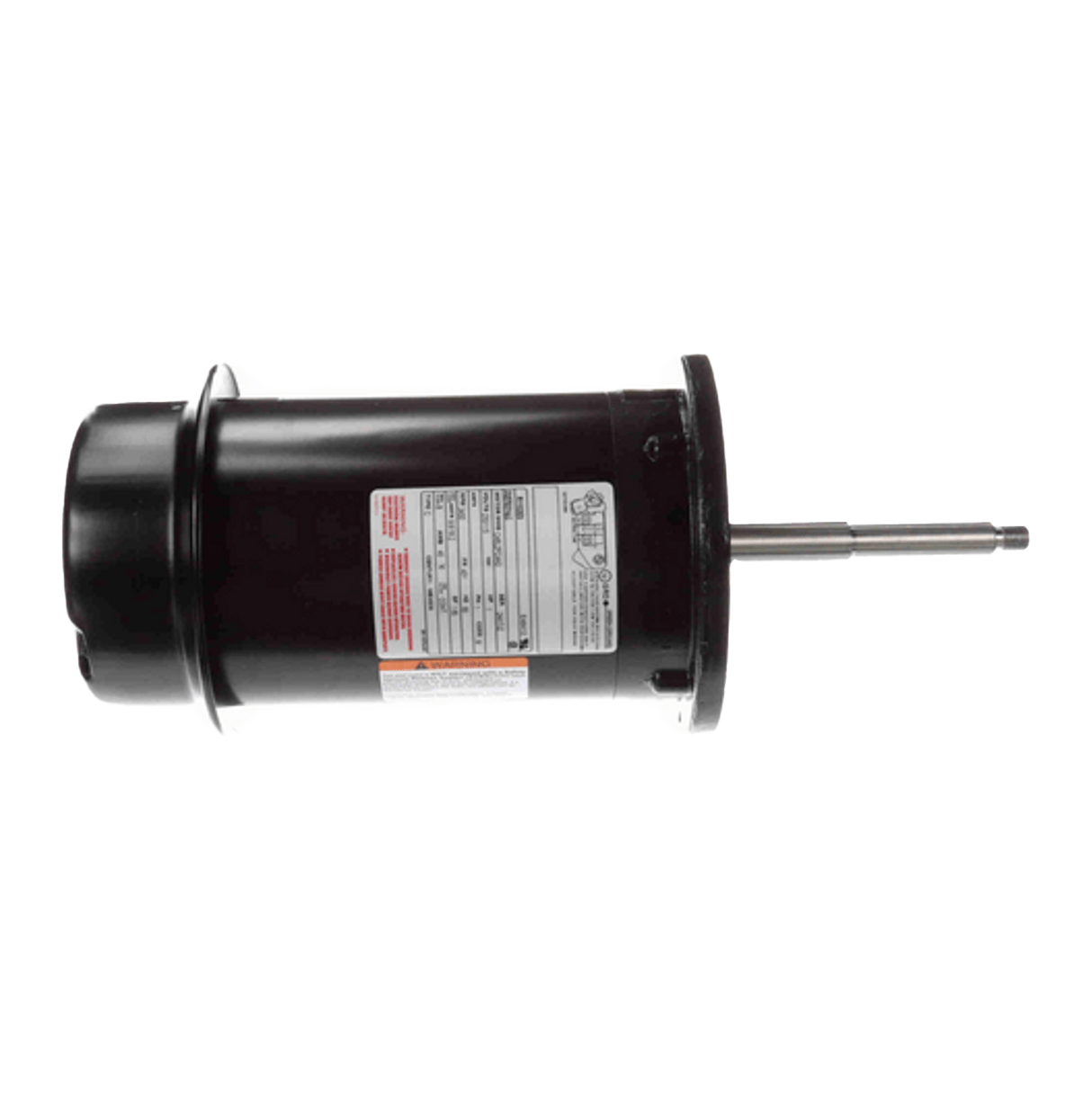

The Century R1102ES electric motor is a powerful and versatile unit designed for various applications. It features a 1 horsepower capacity, operating at 3450 RPM with a 60-hertz frequency. The motor is capable of running on both 115 volts and 230 volts, offering flexibility in voltage options.

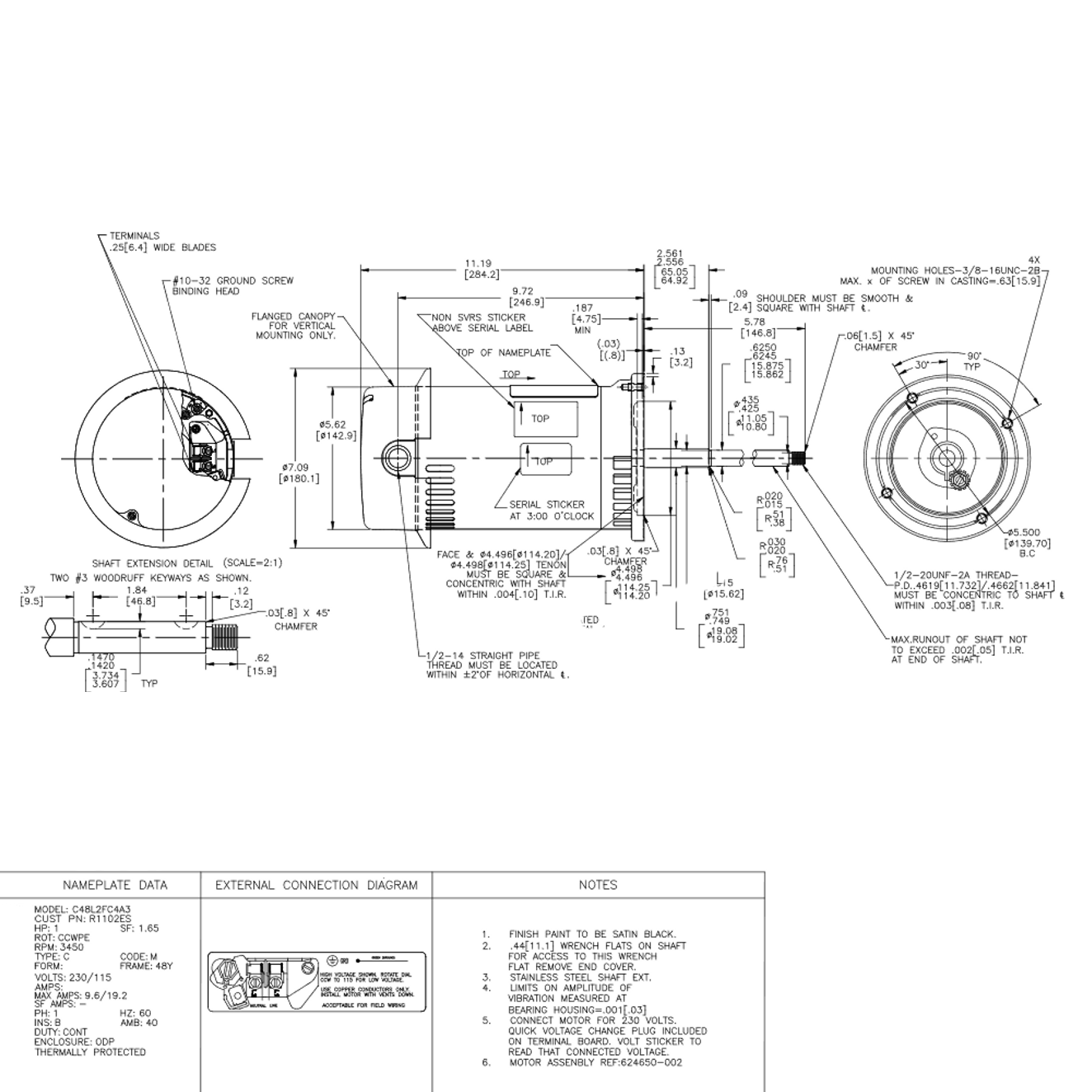

With a NEMA 48Y frame and a round-flange design, this electric motor provides a sturdy and reliable structure. The stainless steel shaft is threaded, measuring 1/2" in diameter and extending to 5 3/4". The motor has a service factor of 1.65, providing additional power beyond its rated horsepower, and it is equipped with overload protection for added safety.
The Century R1102ES electric motor is a capacitor start type, featuring ball bearings and class B insulation. Its open drip-proof (ODP) enclosure ensures proper cooling while preventing water from entering the motor. With its 1-phase operation and auto overload protection, this electric motor is a durable and efficient solution for various industrial and commercial applications.
