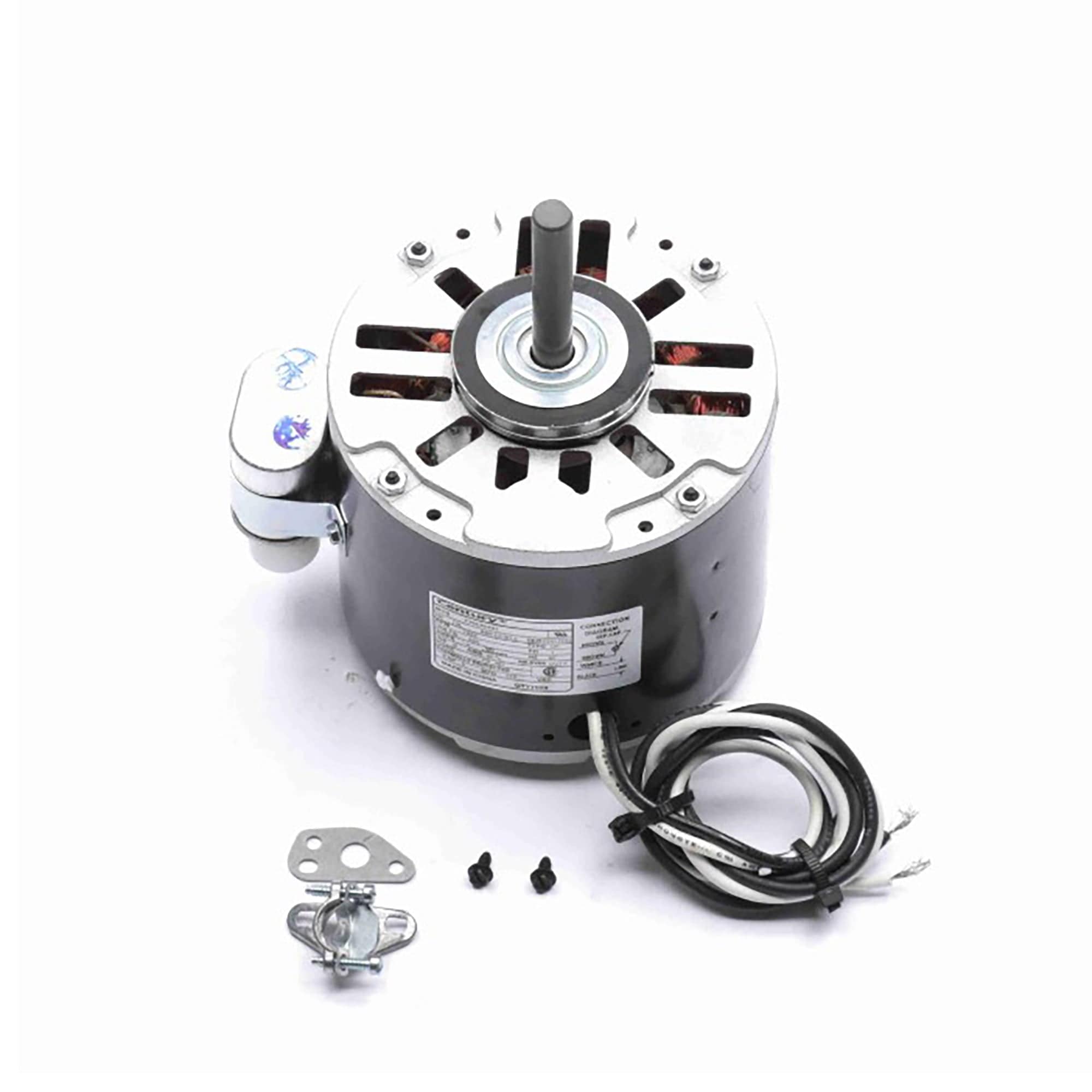

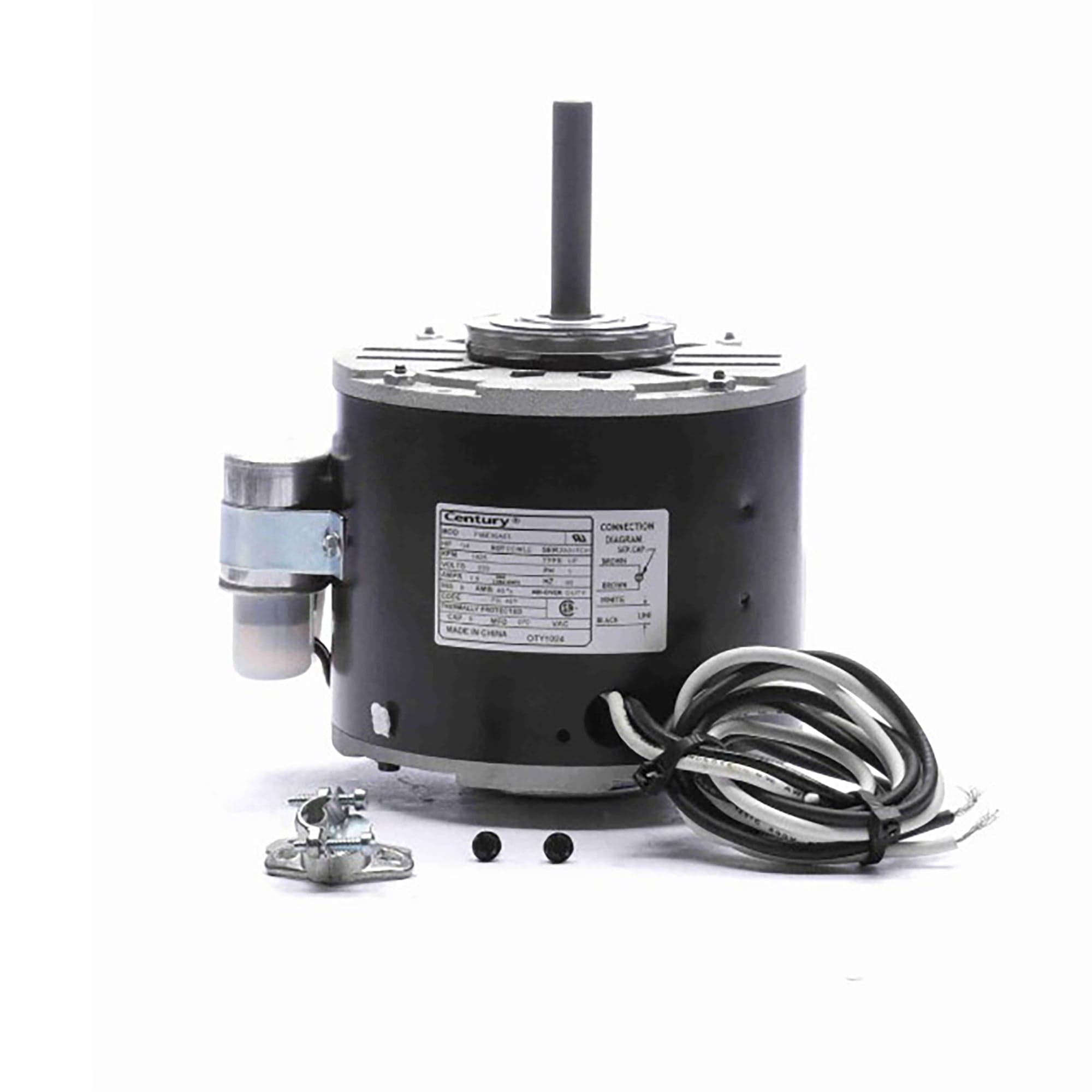

Century OTY1024 OEM Replacement Motor, 1/4 HP, 1 Ph, 60 Hz, 230 V, 1625 RPM, 1 Speed, 48 Frame, SEMI ENCLOSED

OEM Replacement Motor, 1/4 HP, 1 Ph, 60 Hz, 230 V, 1625 RPM, 1 Speed, 48 Frame, SEMI ENCLOSED by Century.

Features:

• OEM Direct Replacement Motor

• 5.6" Diameter - 48 Frame

• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)

• Thermally Protected

• Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over

• Class B Insulation, 40°C Ambient

• Ball Bearing

• 1/2" Diameter Shaft with Flat

• 39" Leads

• Resilient Ring Mount

Specifications:
Phase:    1    Output HP:    1/4 Hp
Output KW:    0.19 kW    Voltage:    230 V
Speed:    1625 rpm    Service Factor:    1
Frame:    48    Enclosure:    Semi Enclosed
Thermal Protection:    Automatic    Ambient Temperature:    40 °C
Frequency:    60 Hz    Current:    1.9 A
Duty:    Air Over    Insulation Class:    B
UL:    Recognized    CSA:    Y
CE:    N    Number of Speeds:    1
