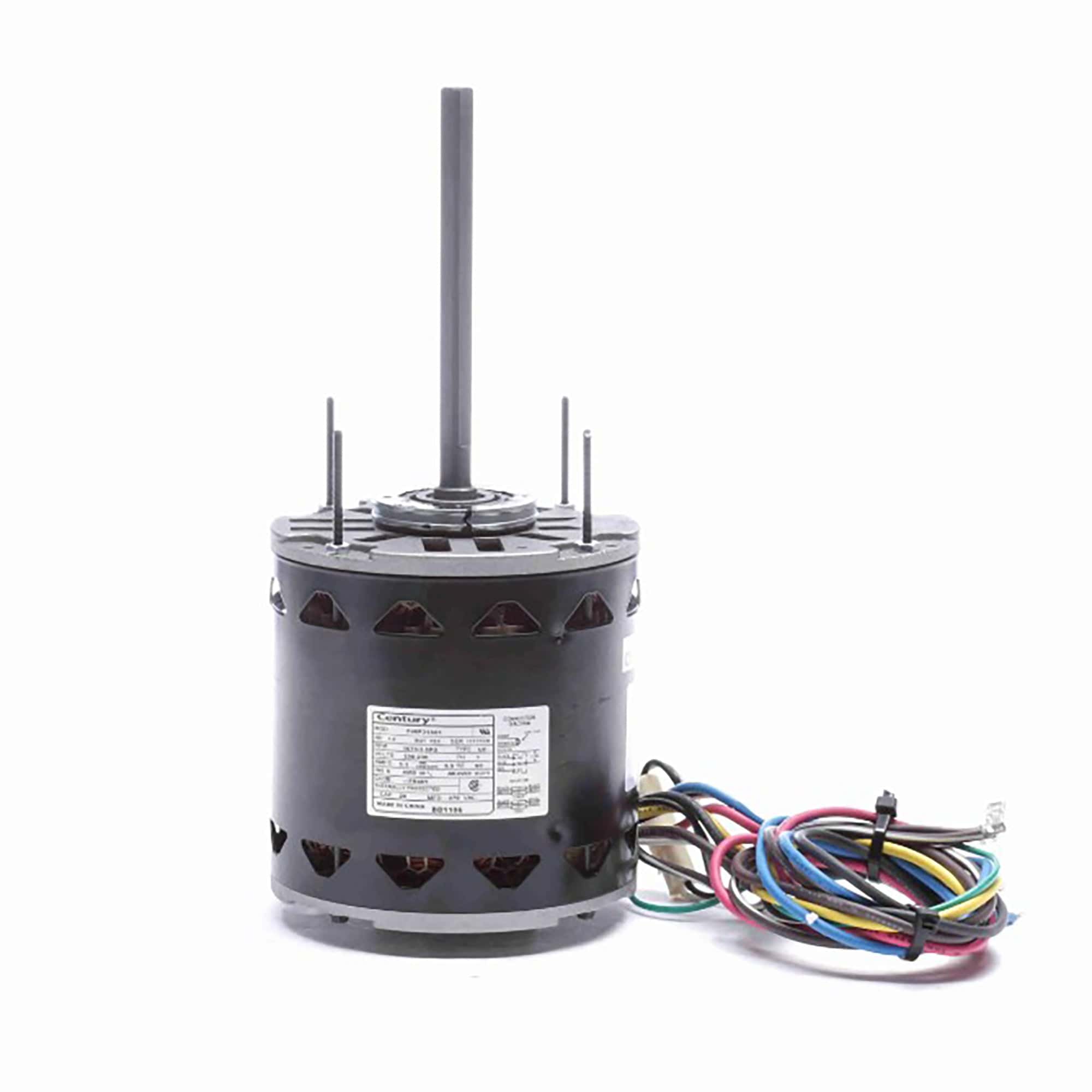

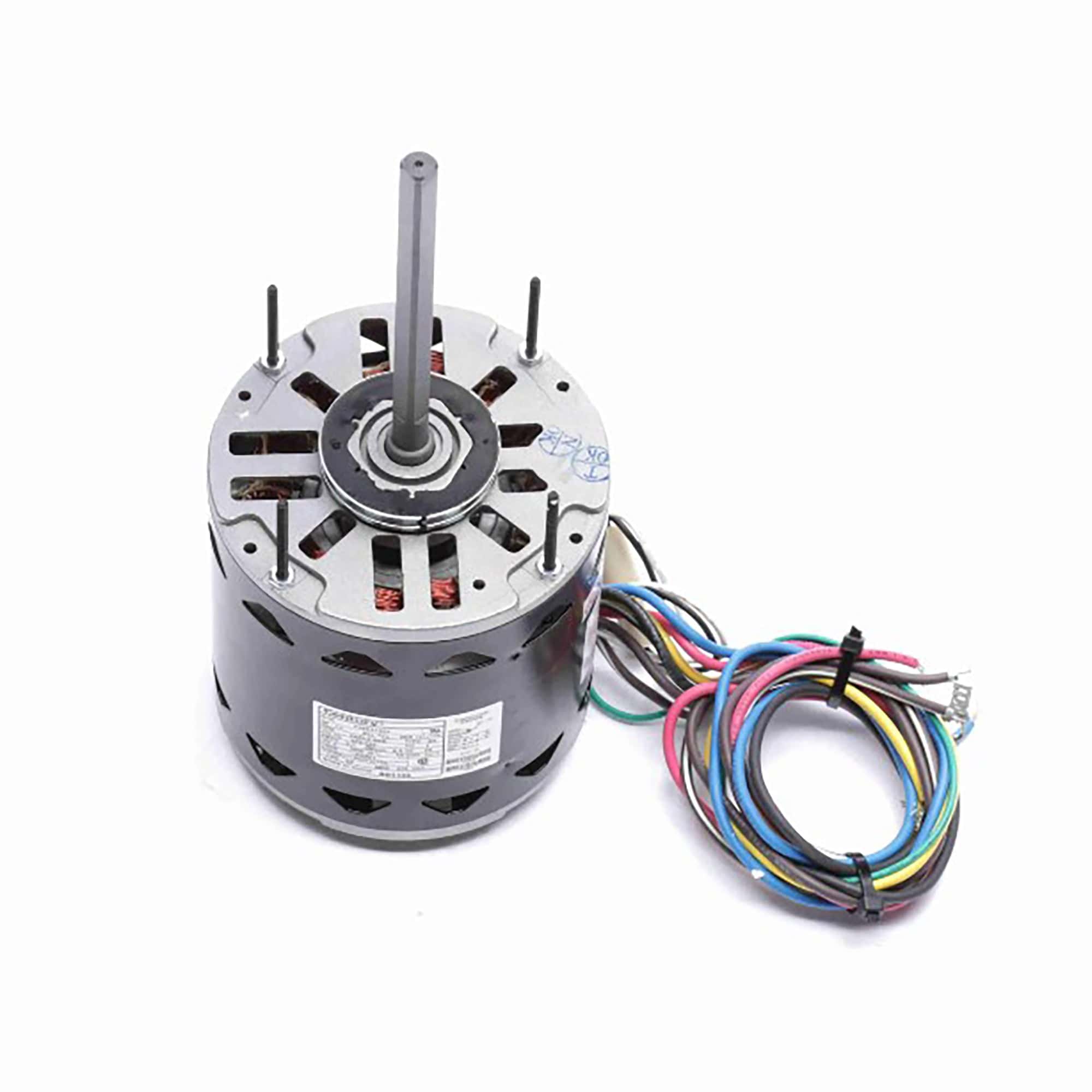

Century BD1106 Century Fan and Blower Motor, 1 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, OPEN
Century BD1106 Century Fan and Blower Motor, 1 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, OPEN
Roll over image to zoom in Click on image to zoom
Century BD1106 Century Fan and Blower Motor, 1 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, OPENCentury BD1106 Century Fan and Blower Motor, 1 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, OPEN

Century BD1106 Century Fan and Blower Motor, 1 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, OPEN

CenturySKU: BD1106
Price:
$387.83
Stock:
Sold out
Free Shipping* (Some exclusions apply)TRUE

Description

Fan and Blower Motor, 1 HP, 1 Ph, 60 Hz, 208-230 V, 1075 RPM, 3 Speed, 48 Frame, OPEN by Century.

Features:

  • Direct Drive Fan & Blower Motor
  • 5.6" Diameter - 48 Frame
  • Permanent Split Capacitor (PSC); Capacitor Required: 20 Mfd-370 Volts (Not Supplied with Motor)
  • Thermally Protected
  • Open Air Over
  • Class B Insulation, 40°C Ambient
  • Ball Bearing
  • 1/2" Diameter Shaft with Flat
  • 27" Leads
  • Extended Studs Shaft End, Resilient Ring Mounting


Specifications:

Phase:    1    Output HP:    1 Hp
Output KW:    0.75 kW    Voltage:    208-230 V
Speed:    1075 rpm    Service Factor:    1
Frame:    48Y    Enclosure:    Open Enclosed
Thermal Protection:    Automatic    Efficiency:    70 %
Ambient Temperature:    40 °C    Frequency:    60 Hz
Current:    4.8 A    Duty:    Air Over
Insulation Class:    B    UL:    Recognized
CSA:    Y    CE:    N
Number of Speeds:    3
