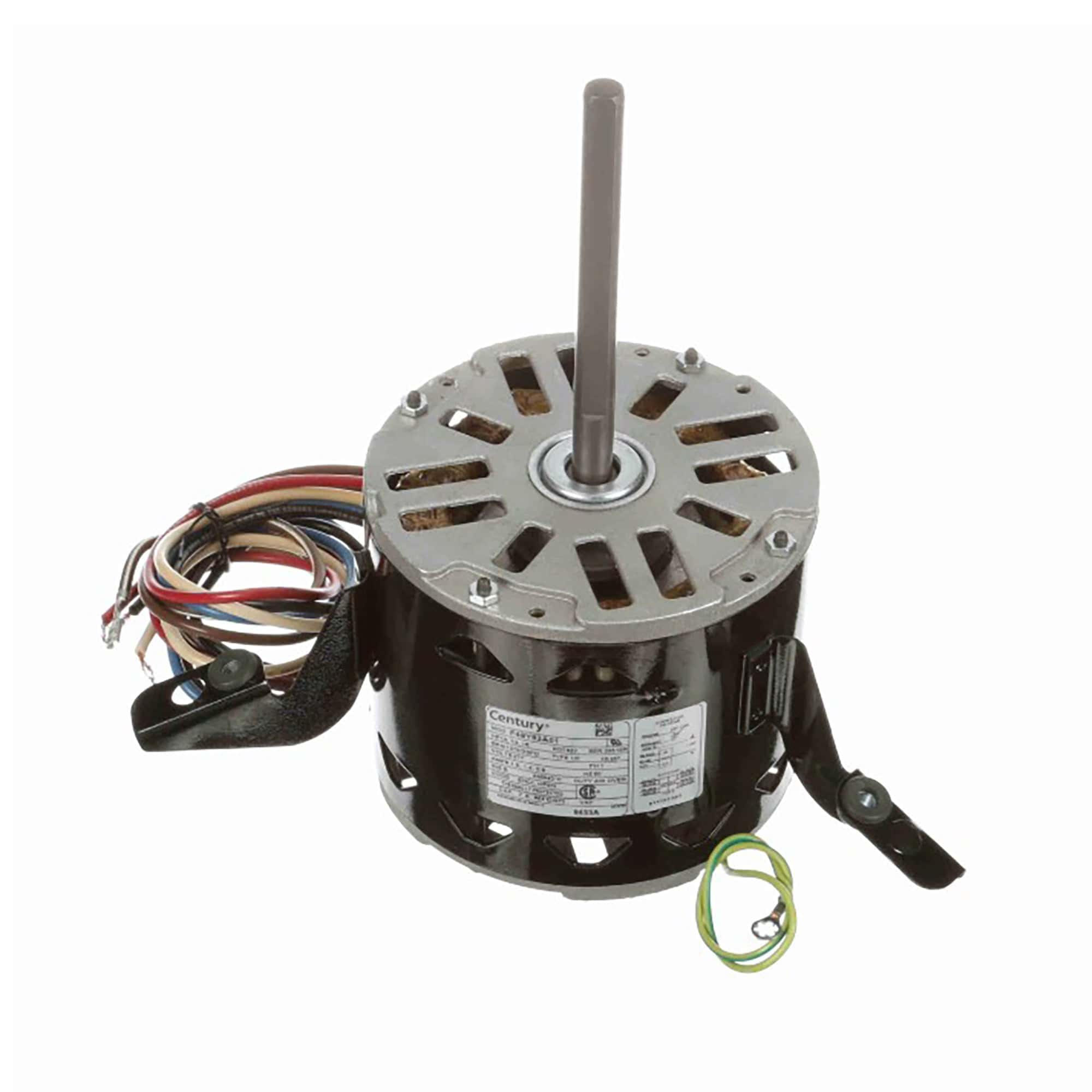

Century 9433A 3/4 Hp, 1800 Rpm, 56 FR, 115/208-230 Vac, 1 PH, Dripproof, Resilient Base, General Purpose, Auto Overload

Coil & Air Conditioner Motor, 1/3,1/4,1/6 HP, 1 Ph, 60 Hz, 277 V, 1075 RPM, 3 Speed, 48 Frame, OPEN - 9433A by Century.

Features:

• Fan Coil - Room Air Conditioner - Blower Motor

• 5.6" Diameter - 48 Frame

• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)

• Thermally Protected

• Open Air Over

• Class B Insulation, 40°C Ambient

• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing

• 1/2" Diameter Shaft with Flat

• 25" Leads

• Flex Mount

Specifications:

Phase:    1    Output HP:    1/3,1/4,1/6 Hp
Output KW:    0.25 kW    Voltage:    277 V
Speed:    1075 rpm    Service Factor:    1
Frame:    48Y    Enclosure:    Open Enclosed
Thermal Protection:    Automatic    Ambient Temperature:    40 °C
Frequency:    60 Hz    Current:    1.9,1.4,0.9 A
Duty:    Air Over    Insulation Class:    B
UL:    Recognized    CSA:    Y
CE:    N    Number of Speeds:    3
