Description

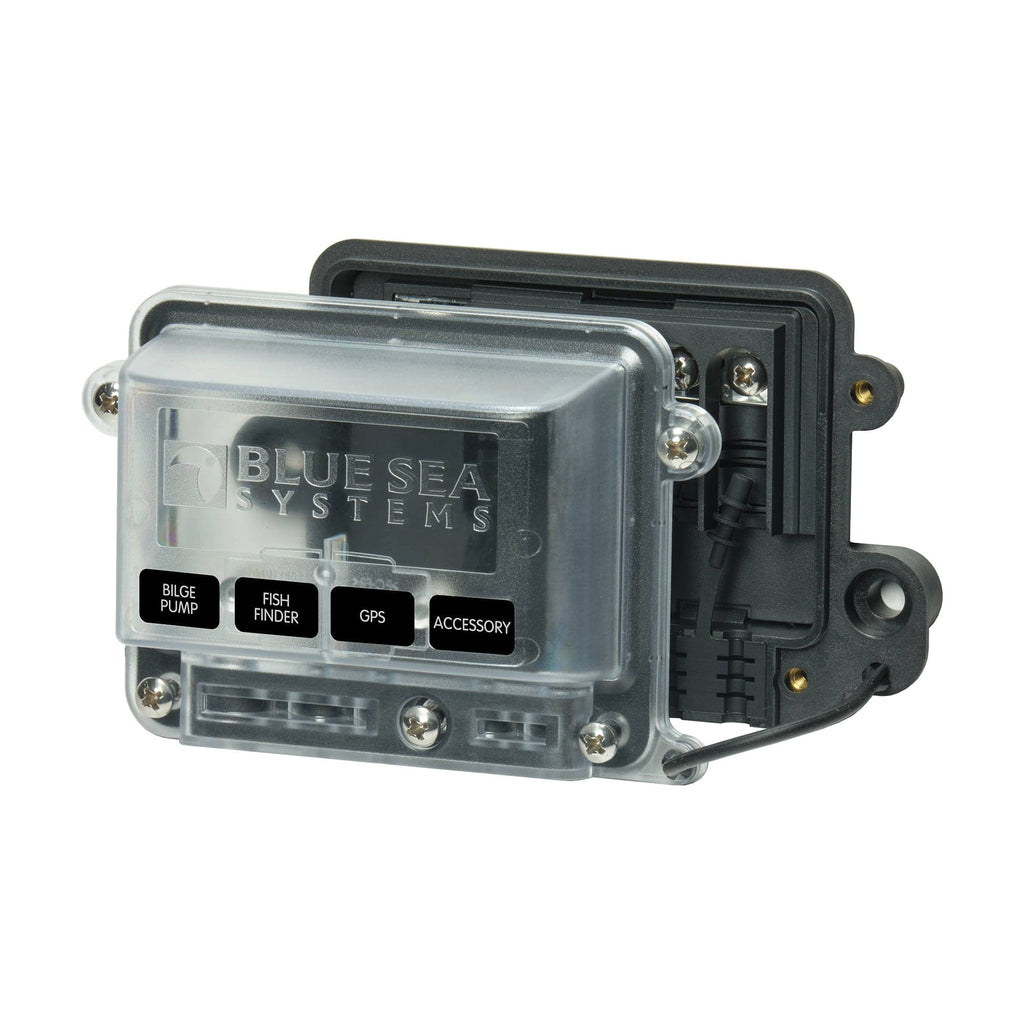

BusBar H2O 4 Gang Common Bus w/ Cover - Blue Sea Systems 2356
- Water-Resistant Design: Compatible with standard ring or spade terminals, allowing for straightforward wiring using standard tools.
- Versatile Wiring Options: Accommodates a wide range of wire sizes for flexible installation.
- Maintains Water Resistance: Includes 3 wire plugs to preserve the water-resistant rating when fewer than 4 wires are used.
- Space-Saving Integration: Easily nests with other Water-Resistant 100A Common BusBars and the ST-Blade Water-Resistant Fuse Block for efficient wiring.
- Versatile Applications: Perfect for positive distribution, as well as the collection of negative or AC ground circuits.
- Compliance: Meets ABYC/USCG insulation standards for safety and reliability.
- Durable Construction: Features tin-plated copper busses and fuse clips for enhanced corrosion resistance.
- Customizable Labeling: Includes four write-on circuit labels, with both standard and custom label options available.
Specifications
Cover: Yes
Wire Size: (1) 8 AWG to 4 AWG - Input , (4) 16 AWG to 10 AWG - Load
Terminal Screws: 4 x #8-32
Max Voltage: 300V AC , 48V DC
Terminal Stud: 1 x #10-32
Continuous Rating: 100A AC , 100A DC
Bus Material: Tin-Plated Copper C11000
Mounting Holes: Accepts 1/4" (6mm) Screws
