Description

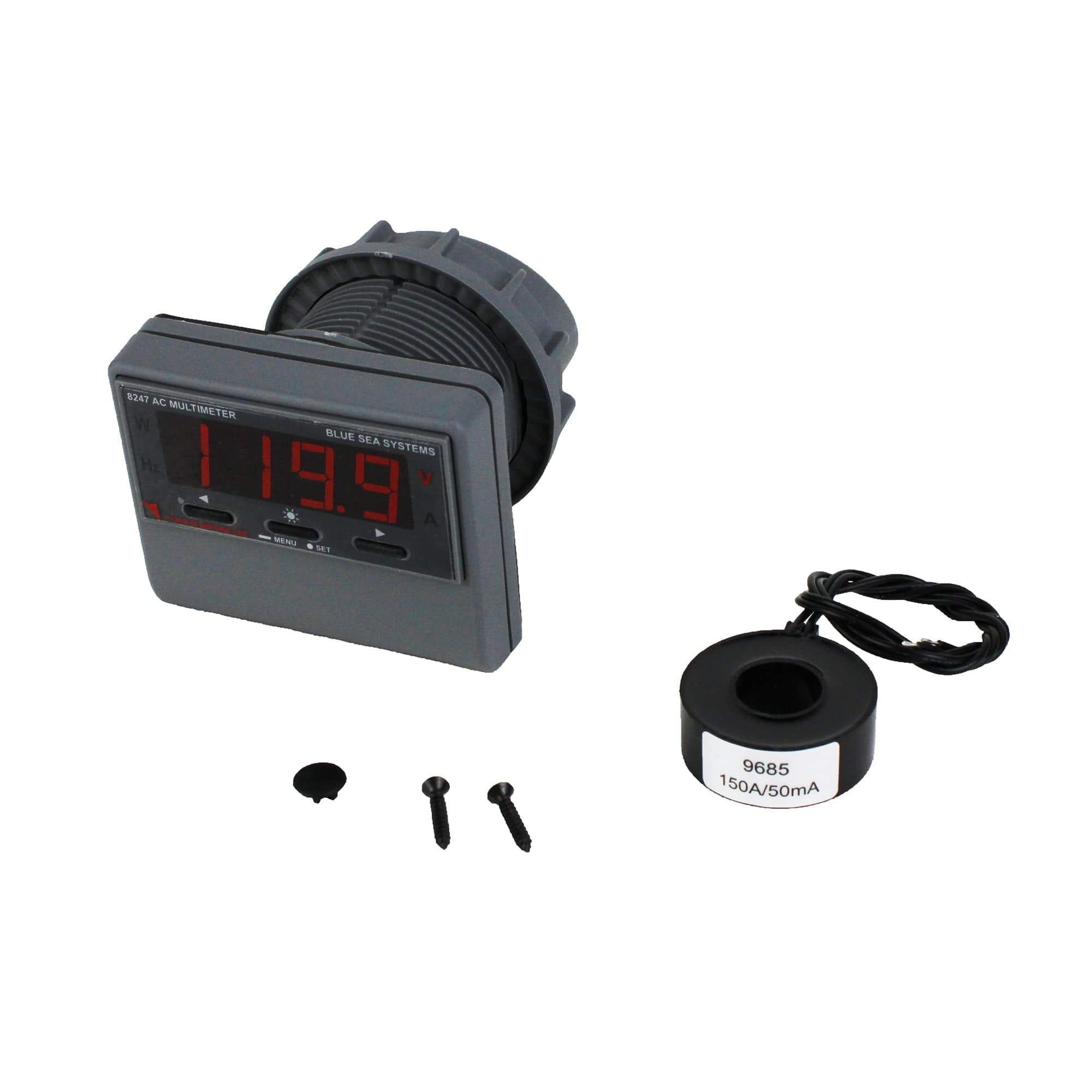

This is an AC digital multi-function meter with alarm.
- Displays amperage from 0 to 150 Amps
- Displays voltage from 80 to 270 Volts
- Displays power from 0 to 35 Kilowatts
- Displays frequency from 40 to 90 Hertz
- High and low voltage and high amperage alarms, both audio and visual
- 3 levels of display brightness
- Programmable sleep mode blanks display for power conservation
- Splashproof front
- Includes current transformer
Warning: Product may contain materials cautioned by California Proposition 65
Specifications
Alarms | High and low voltage / High current |
Display Character Size | 0.5625in (14.29 mm) |
Input Voltage | 80-249V For 120 & 240 Volt AC single phase systems |
Maximum Power Consumption | 1 Watt |
Meter | Current / Frequency / Power / Voltage |
Sleep Mode | Programmable |
