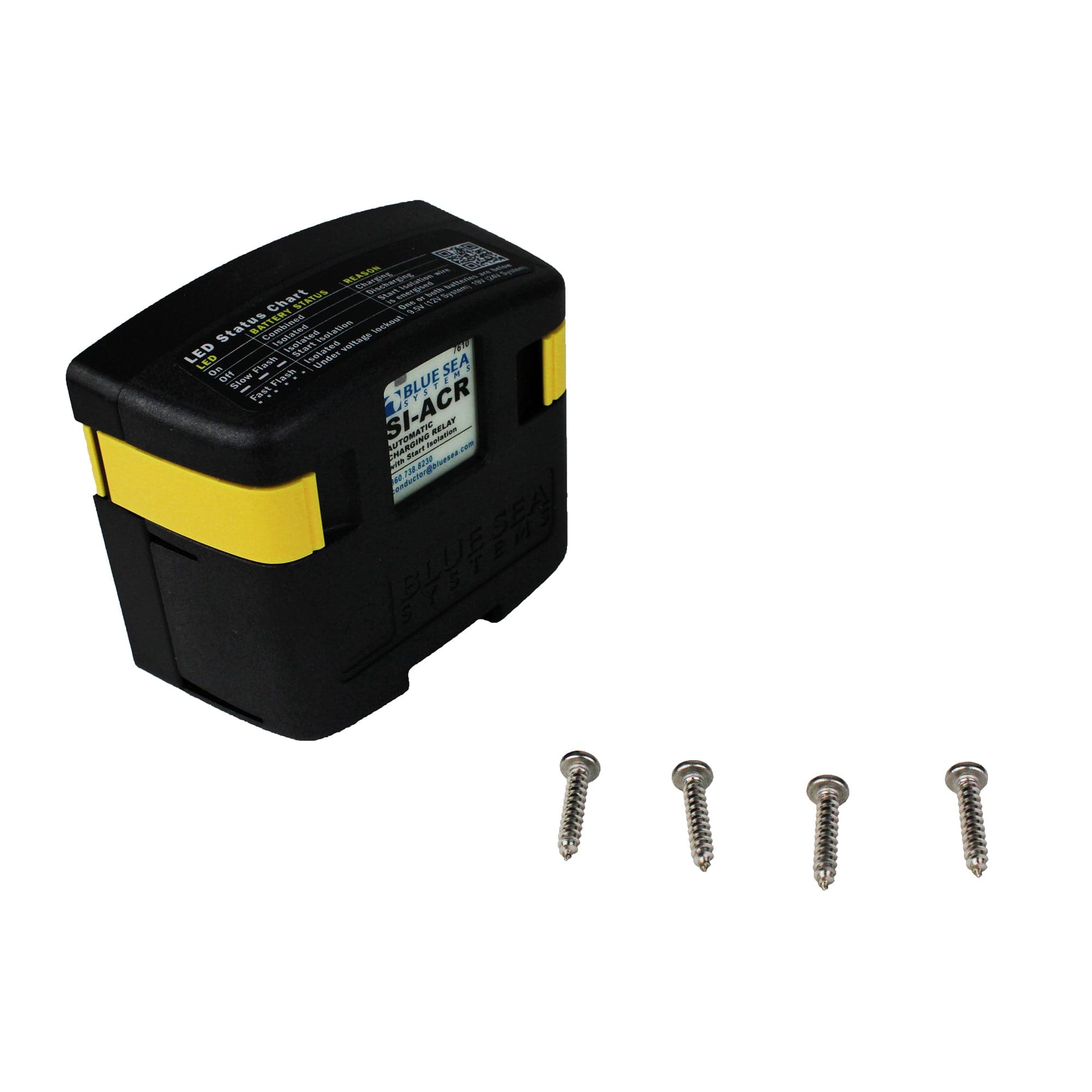

Blue Sea Systems 7610-BSS 12/24V 120A Automatic Charging Relay SI-ACR
Roll over image to zoom in Click on image to zoom
Blue Sea Systems 7610-BSS 12/24V 120A Automatic Charging Relay SI-ACR

Blue Sea Systems 7610-BSS 12/24V 120A Automatic Charging Relay SI-ACR

Save $160.57
Blue Sea SystemsSKU: 7610-BSS
Price:
$89.75 $250.32
Stock:
Re-stocking soon
Free Shipping* (Some exclusions apply)

Description

This is a 12V/24V DC 120-amp SI-ACR automatic charging relay

  • Automatically combines batteries during charging, isolates batteries when discharging and when starting engines
  • Protects sensitive electronics by temporary isolation of house loads from engine circuit during engine cranking
  • Designed for 12 or 24 volt systems
  • 12/24 volt auto ranging voltage input
  • Hermetically sealed contacts/vaporproof
  • Ignition protected—safe for installation aboard gasoline powered boats
  • Supports high-output alternators up to 120 Amperes
  • Dual sensing
  • Optional Features
  • Start Isolation allows temporary isolation of House loads from Engine circuit during engine cranking to protect sensitive electronics from sags and spikes
  • Remote LED remotely indicates ACR states - requires optional LED



Warning: Product may contain materials cautioned by California Proposition 65

Specifications

Amperage Operating Current 175mA (combined) / 15mA (open)
Cable Size to Meet Ratings 1/0 AWG
Combine 30 sec 13.6V @ 12 V / 27.2V @ 24 V
Combine 90 sec 13.0V @ 12 V / 26.0V @ 24 V
Continuous Rating 120A
Intermittent Rating 210A (5 min)
Nominal Voltage 12V DC / 24V DC
Open 10 sec 12.35V @ 12 V / 24.7V @ 24 V
Open 30 sec 12.75V @ 12 V / 25.5V @ 24 V
Open High 16.0V @ 12 V / 30.0V @ 24 V
Over Voltage Lockout 16.0V @ 12V / 32.0V @ 24V
Start Isolation Yes
Stud Material Tinned Copper
Terminal Ring Dia. Clearance 1.12in (28.45 mm)
Terminal Stud Length 0.875in (22.23 mm)
Terminal Stud Size 3/8" - 16 (M10)
Terminal Stud Torque 140 in-lb (15.82 Nm)
Under Voltage Lockout 9.5V @ 12 V / 19V @ 24 V
